DC Gear Motor 37mm Gearbox Low Rpm 1Nm High Torque 60rpm 100rpm 24v 12v Dc Geared Motor

Brand Name:	Masing Motor
Model Number:	MSGM37B520
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO

Product Name:

12v Permanent Magnet Dc Gear Motor

Shaft Diameter:

6mm

Torque:

0.3-20kgf.cm

Protect Feature:

Totally Enclosed

Direction Of Rotation:

CW/CCW

Gearbox Material:

37mm Gear Motor

Direction Of Rotation:

CCW&CW

Construction:

Permanent Magnet

Gearbox Length:

21mm To 29mm

Gearbox Diameter:

37mm Gearbox

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12v dc geared motor

60rpm dc gear motor

60rpm dc geared motor

Product Description

DC Gear Motor 37mm Gearbox Low RPM 1Nm High Torque 60RPM 100RPM 24V 12V DC Geared Motor

Product Overview

DC Gear Motor 37mm Gearbox Low RPM 1Nm High Torque 60RPM 100RPM 24V 12V DC Geared Motor for Robots

Speed: Variable speed from 2RPM to 3000RPM (Customizable)
Voltage: DC Input 3V, 6V, 9V, 12V, 24V, 36V, 48V (Customizable)
Shaft: Shaft Dia: 6mm. Shaft type: Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customizable)
High Efficiency: 70% efficiency with 1.5V-12V DC Spur Geared Motor
Accessories: Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Low Noise & High Torque: Torque of 0.1-30kgf.cm with low noise operation
Customizable Options: Various diameter options and colors available
Durable Construction: Totally enclosed design with permanent magnet construction for long lifespan

Technical Specifications

Parameter	Specification
Speed (RPM)	2-3000 RPM (Customizable)
Continuous Current (A)	80-1400mA
Efficiency	70%
Warranty	3 Months - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MSGM37B520
Applications	Home Appliance, Robot, Vending Machine, Medical Device
Type	24V Gearbox DC Motor
Torque	0.1-30kgf.cm
Construction	Permanent Magnet
Commutation	Brushed Motor
Protection	Totally Enclosed
Rotation Direction	CW & CCW
Gearbox Material	Metal Gearbox
Gearbox Length	21mm to 29mm
Gearbox Diameter	37mm
Gearbox Ratio	1:5 to 1:1000
MOQ	1000 Pcs
Shaft Options	D-cut, Round, Flat, or with Hole (Customer's Request)
Shaft Material	Carbon Steel or Stainless Steel
Certification	CE, ROHS, ISO

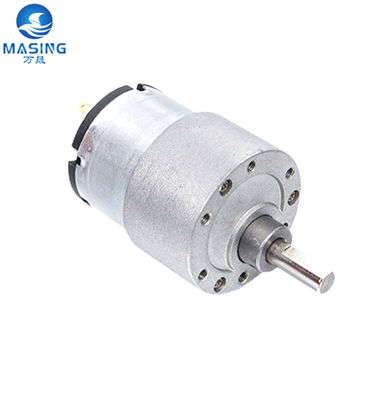

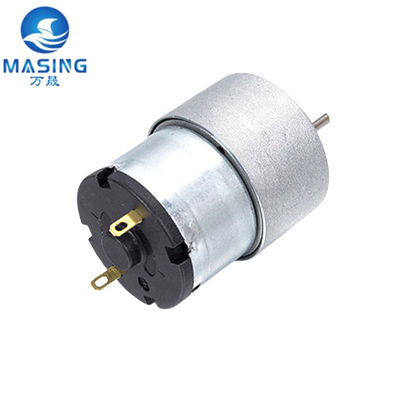

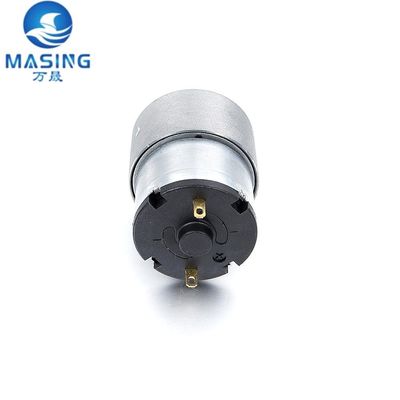

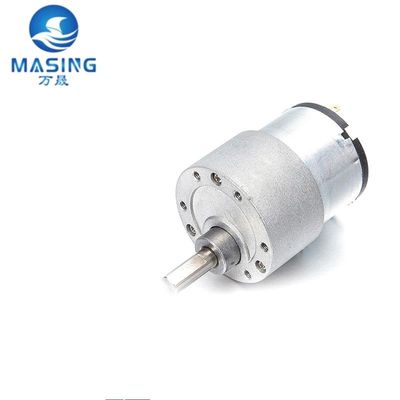

Product Images

Packaging & Delivery

Packaging: Strong Carton 80pcs/box, or as requested

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Package Size: 37×27×24cm

Gross Weight: About 130-160g

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples: Maximum order quantity: 1 piece | Sample price: $10/piece

Certifications & Factory

Applications

Driverless, Artificial Intelligence, Intelligent Transportation, Health Care, Smart City, Automotive Supplies, Security Monitoring, 5G Communication, Smart Home, Automatic Door Operators, Automatic Energy Saving Bath, Electrical Controlled Valve, Robots, Grass Cutter, Electric Curtain, Camera, Medical Service, Oxygen Machine, etc.

Frequently Asked Questions

Q1: How to order?

A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q2: How to select a suitable motor?

A2: If you have motor pictures, drawings, or detailed specs like voltage, speed, torque, motor size, working mode, needed lifetime and noise level, please let us know so we can recommend suitable motors.

Q3: Do you have a customized service for your standard motors?

A3: Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components.

Q4: How long is the delivery time?

A4: Delivery time depends on quantity. Usually 15-25 working days.

Q5: How do you ensure motor quality?

A5: We have comprehensive inspection procedures: incoming materials inspection, production process tour inspection, and final inspection before shipping.

Q6: What data do I need to provide to order?

A6: Please provide rated voltage, no load speed, load speed, load torque, and overall dimensions.

Q7: What if I don't know the above data?

A7: Please contact our sales team - we'll answer your questions patiently and help determine your requirements.

Q8: How to confirm the payment?

A8: We accept T/T, PayPal, and other payment methods. 30-50% deposit required, balance paid before shipping.
