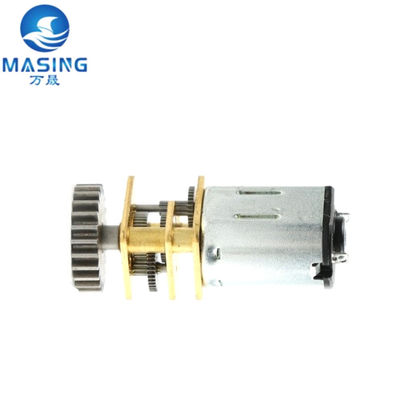

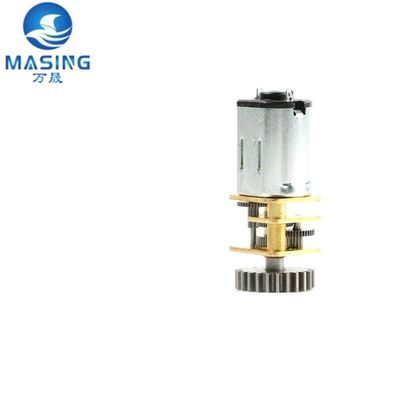

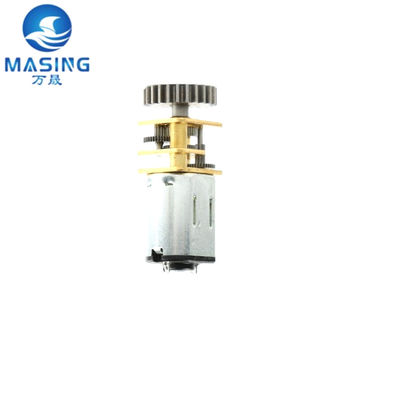

N20 Mini Gearbox DC Motor 6volt 60 Rpm DC Geared Motor For 3D Printer / Smart Lock

N20 Mini Gearbox DC Motor 6volt 60 Rpm DC Geared Motor For 3D Printer / Smart Lock

Brand Name:	Masing Motor
Model Number:	MSGM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

60 Rpm DC Geared Motor

Speed:

5~3000rpm

Protect Feature:

Totally Enclosed

Certification:

RoHS,CE,ISO.EU

Direction Of Rotation:

CW/CCW

Gearbox Material:

Customized

Gearbox Length:

9mm Or 11mm

Shaft Material:

Rohs Carbon Steel Or Stainless Steel

Torque:

0.1-2kg.cm

Motor Type:

6v Micro Gear Motor

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

N20 Mini Gearbox DC Motor

N20 Geared Motor

60 Rpm DC Geared Motor

Product Description

N20 Mini Gearbox DC Motor 6V 60 RPM DC Geared Motor for 3D Printer / Smart Lock

Product Overview

DC gear motor with mini gear box, N20 motor 6V 60RPM geared motor designed for 3D printers and smart lock applications.

Technical Specifications

Voltage: DC 1.2V-12V (Customizable)
Speed: Variable speed from 0.5-3000 RPM (Customizable)
Power: Customizable
Gearbox: 12×9mm gearbox
Compatible Motors: N10, N20, N30, Mini permanent magnet DC motors
Reduction Ratio: 1:10-1:1000 ratio (Customizable)
Gearbox Material: Steel plate or Copper plate (Customizable)
Construction: Permanent Magnet
Direction of Rotation: CW or CCW
Efficiency: IE 2
Noise: ≤55 DB
Weight: 10g

Shaft Options

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA 3-D2.5, DIA 4-D3, etc.
Screw Type: M3, M4, M5 Serial
Trape Type I-cut Type: DIA 3-I2, DIA 4-I3
Other Type: Shaft with hole, etc.
Shaft Material: Carbon Steel or Stainless Steel
Shaft Size: 3mm diameter
Shaft Type: Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customizable)

Performance Characteristics

Speed (RPM): 5-3000 RPM
Continuous Current: 10mA-300mA
Torque: 0.1-2 kg.cm
Warranty: 3 Months - 1 Year
Protect Feature: Exposed Gearbox
Durable Construction: Drip-proof design and permanent magnet construction
Efficient and Reliable: IE 2 efficiency reduces energy consumption and heat generation

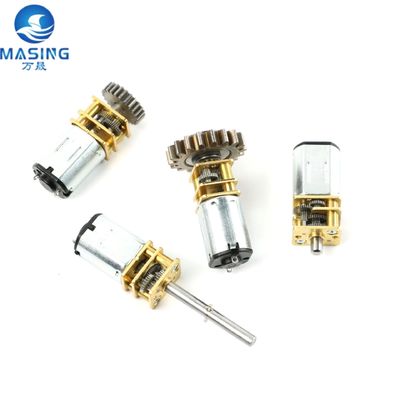

Product Images

Product Specifications

Typical Applications: Car, Home Appliance, Cosmetic instrument, SMART HOME, robots, door lock, projector

Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 12×10×24mm
Gross Weight: 0.01kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $5/piece

Certifications

Factory Show

Product Classification

Applications

Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Medical Equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment	Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Frequently Asked Questions

Q1: Can you send me your price list?

A1: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once we receive your inquiries to ensure you get the price promptly.

Q2: What's the minimum order quantity?

A2: Our minimum order quantity depends on different motor models. Please email us to check. We typically do not accept personal use motor orders.

Q3: What kind of data do I need to provide if I want to order?

A3: Please provide your rated voltage, no load speed, load speed, load torque and overall dimension requirements.

Q4: Do you have an individual design service for motors?

A4: Yes, we provide custom motor design services, but this may require mould charges and design fees.

Q5: Can I visit your company?

A5: Yes, we welcome company visits. Please notify us at least two weeks in advance to schedule your visit.

Q6: When will you reply after receiving my inquiries?

A6: We respond within 24 hours of receiving your inquiries.

Q7: What certifications do you have?

A7: We currently hold CE, ISO and RoHS certifications.
