60rpm Low Speed DC Gear Motor 3V 6V N20 Micro Gear Motor With Custom Shaft

60rpm Low Speed DC Gear Motor 3V 6V N20 Micro Gear Motor With Custom Shaft

Brand Name:	Masing Motor
Model Number:	MSGM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

60 Rpm Dc Gear Motor 12mm

Dimension:

12mm Gear Box

Protect Feature:

Totally Enclosed

Certification:

RoHS,CE,ISO.EU

Direction Of Rotation:

CW/CCW

Gearbox Material:

Customized

Gearbox Materail:

Customized

Shaft Material:

Carbon Steel Or Stainless Steel

Speed:

Customized

Motor Type:

12mm Gear Motor 3v

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

N20 Micro Gear Motor

60rpm Low Speed DC Gear Motor

Product Description

60rpm Low Speed DC Gear Motor 3V 6V N20 Micro Gear Motor With Custom Shaft

Product Overview

DC Gear Motor N20 60rpm Micro Gear Motor Low Speed 3V 6V N20 Motor with customizable shaft options for various industrial applications.

Voltage: DC Input 1.5V-24V (Customizable)
Speed: 5rpm-3000rpm (Customizable)
Power: 0.1W-5W
Gearbox: 12×9mm gearbox, Material: Copper and stainless steel
Compatible Motors: N10, N20, N30 brushed DC motors
Motor speed is proportional to voltage
Optional Accessories: Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan
Output Bearing: Ball bearing / Sleeve bearing
Customizable reduction ratio available

Technical Specifications

Speed (RPM)	10rpm-3000rpm
Continuous Current	Customizable
Efficiency	IE1
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS12FN20
Applications	Home Appliance, robot, door lock, camera, medical device
Gearbox Material	Copper Alloy
Gear Ratio	1:10-1:1000 ratio
Construction	Permanent Magnet
Rotation Direction	CW or CCW
Weight	10g
Noise Level	≤55DB
MOQ	1000Pcs
Certifications	CE, RoHS, EU, ISO

Shaft Types

Available shaft types (customizable according to user drawings):

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 Serial
Trape Type I-cut Type: DIA3-I2, DIA4-I3
Other Types: Shaft with hole, etc.

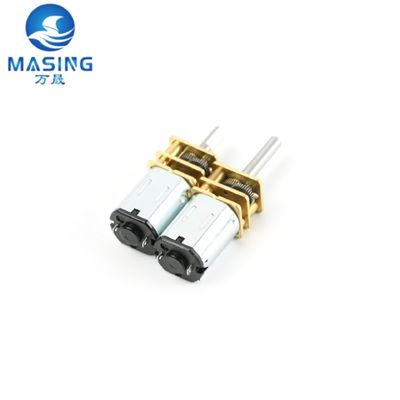

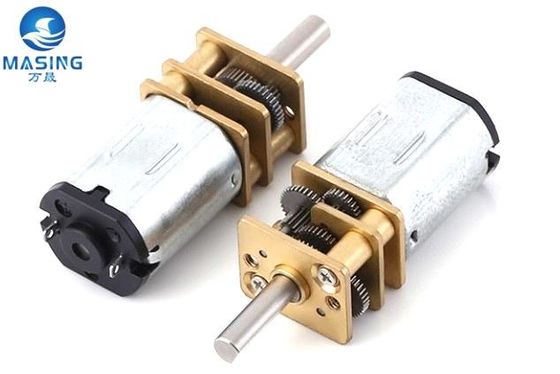

Product Images

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or customized

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Package Size: 12×10×24mm

Weight: 0.01kg

Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples: Maximum order quantity: 1 piece, Price: $5/piece

Applications

Driverless vehicles, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Medical Equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment	Electric toothbrush, Electric tool, Adult products, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair dryer, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot

Frequently Asked Questions

Q1: Can you send me your price list?

A1: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once we receive your inquiries.

Q2: Do you have an individual design service for motors?

A2: Yes, we design motors individually for our customers, but it may require mould and design charges.

Q3: When will you reply after receiving my inquiries?

A3: We respond within 24 hours once we receive your inquiries.

Q4: What's the minimum order quantity?

A4: Our minimum order quantity depends on different motor models. We usually do not accept personal use motor orders.

Q5: What kind of data do I need to provide if I want to order?

A5: Please provide your rated voltage, no load speed, load speed, load torque and overall dimension requirements.

Q6: What certifications do you have?

A6: We currently have CE, ISO and RoHS certifications.

Q7: Can I visit your company?

A7: Yes, welcome to visit our company. Please let us know at least two weeks in advance to schedule your visit.
