U Type 1224 N20 Gear Reduction Motor , Metal Gearbox Motor OEM ODM With Long Shaft M3 M4 Screw

U Type 1224 N20 Gear Reduction Motor , Metal Gearbox Motor OEM ODM With Long Shaft M3 M4 Screw

Brand Name:	Masing Motor
Model Number:	MSGM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

Gear Reduction Motor

Gearbox Shaft:

Round,D-cut,Flat,Screw Ect

OEM & ODM:

Accepted

Motor Size:

12mm *24mm

Gear Ratio:

Customized

Gearbox Size:

12*24mm Gear Box

Certificate:

CE,ROHS,ISO

Usage:

Robotics And Actuator ,Electronic Lock,Toy Car ,Locks,3D Printer

Material:

RohS Metal

Motor Type:

Miniature Dc Gear Motor

Protect Feature:

Explosion Proof

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

N20 Gear Reduction Motor

N20 Reduction Motor

Metal Gearbox Motor OEM

Product Description

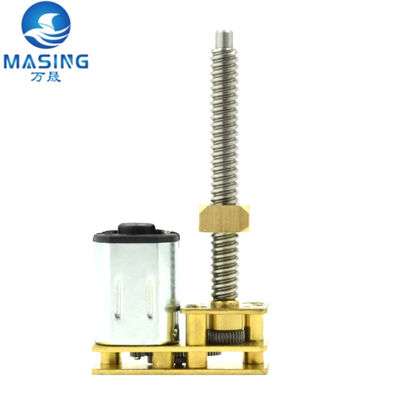

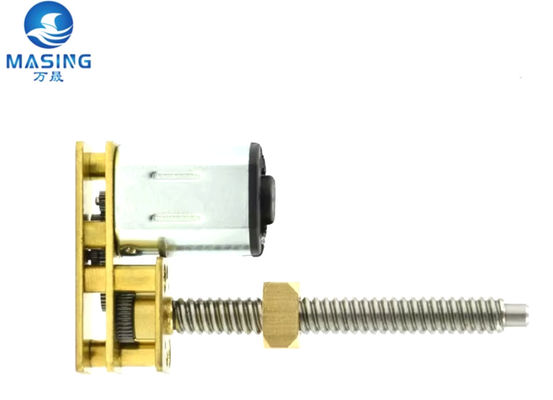

U Type 1224 N20 Gear Reduction Motor

Product Overview

DC Gear Motor U type 1224 N20 gear reduction motor with metal gearbox and long shaft M3 M4 screw options. Professional OEM/ODM manufacturing available.

Gearbox: 12×24mm gearbox compatible with N20, N30, N10 permanent magnet DC motors
Reduction Ratio: Customizable from 1:10 to 1:1000
Motor speed is proportional to motor voltage
Applications: Robots, locks, locker locks, toy cars, beauty devices, smartphone holders
Factory customization available with high performance and stable control
Meets EU environmental standards: low energy consumption, low noise
Encoders, gears and other requirements can be configured

Shaft Types

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA 3-D2.5, DIA 4-D3, etc.
Screw Type: M3, M4, M5 Series
Trapezoid Type I-cut: DIA 3-I2, DIA 4-I3
Other Types: Shaft with hole, etc.

All shaft types can be customized according to user drawings.

Technical Specifications

Speed (RPM)

5-500 rpm

Gearbox Size

12mm × 24mm

Weight

10g

Noise Level

≤55 DB

Lifetime

100-1000 hours

Model Number

MS1224GAN20

Construction

Permanent Magnet

Certifications

CE, Rohs, EU, ISO

Product Images

Performance Specifications

MODEL	VOLTAGE (V)	NO-LOAD SPEED (rpm)	NO-LOAD CURRENT (A)	MAX EFFICIENCY SPEED (rpm)	MAX EFFICIENCY CURRENT (A)	MAX EFFICIENCY TORQUE (mNm)	STALL TORQUE (mNm)	STALL CURRENT (A)	GEAR RATIO
MS-12FN20-11	5	1854	0.054	1468	0.20	3.0	6.0	0.74	11
MS-12FN20-37	5	554	0.050	436	0.22	10.0	24.2	0.74	37
MS-12FN2060	5	410	0.050	323	0.22	13.6	27.2	0.74	50
MS-12FN20-97	5	211	0.060	166	0.22	26.3	52.8	0.74	97
MS-12FN20-117	5	175	0.058	138	0.25	31.8	63.6	0.74	117
MS-12FN20-150	5	137	0.058	108	0.25	40.7	81.6	0.74	150

Packaging & Delivery

Packaging

Strong Carton 1000pcs/box, or customized

Port

Shenzhen/Guangzhou/Shanghai

Package Size

12×10×24mm

Weight

0.01kg

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Supply Ability

100,000 pieces per month

Samples

Maximum 1 piece, $5/piece

MOQ

1000 pieces

Certifications & Applications

Application Industries

Driverless Technology
Artificial Intelligence
Intelligent Transportation
Health Care
Smart City
Automotive Supplies
Security Monitoring
5G Communication
Smart Home

Frequently Asked Questions

Q1: Are you a factory?

A1: Yes, we are a factory. Main products include micro geared motors, brushless DC motors, DC motors, and planetary gear boxes.

Q2: What is your guarantee for the products?

A2: We offer technical support and spare parts for repair if any quality problems occur, and will follow up until you are satisfied.

Q3: Can you provide OEM or ODM service?

A3: Yes, OEM and ODM services are both welcomed.

Q4: Do you accept customization?

A4: Yes, we have a strong design team and can provide technical solutions for any customization requirements.

Q5: How about the quality of your products?

A5: We maintain high-quality standards with good feedback from clients worldwide. Our product complaint rate is typically around 1%.

Q6: What data do I need to provide for ordering?

A6: Please provide your rated voltage, no-load speed, load speed, load torque, and overall dimension requirements.

Q7: How can I know if the product is suitable for me?

A7: Provide us with detailed information about your application, and we will recommend suitable items and prepare samples accordingly.

Q8: How long is the delivery time?

A8: Delivery time depends on order quantity, typically 15-25 working days.
