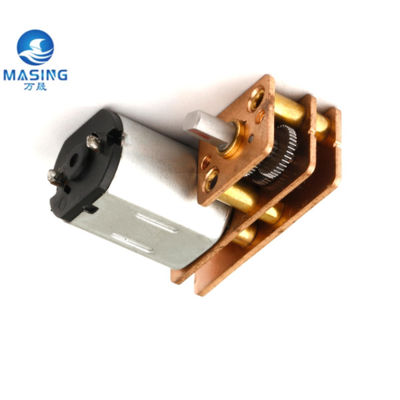

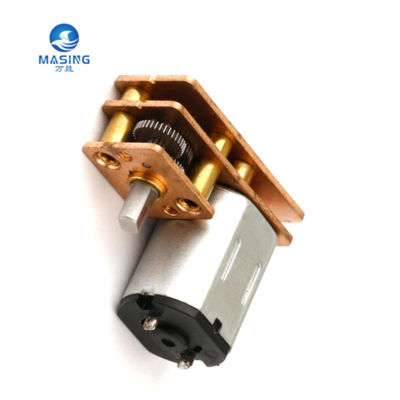

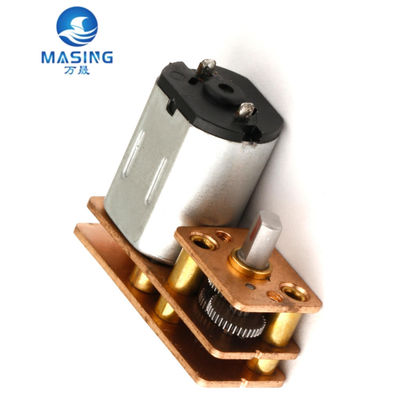

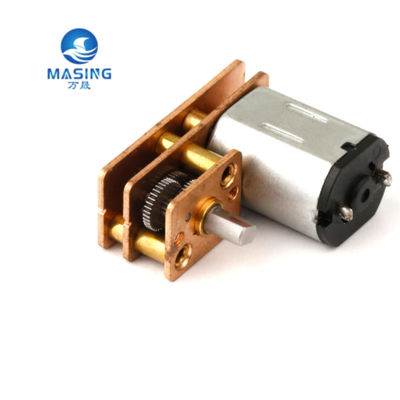

Spur Gearbox N20 DC Gear Motor 3V 6V 12mm Micro Electric Motor

Spur Gearbox N20 DC Gear Motor 3V 6V 12mm Micro Electric Motor

Brand Name:	Masing Motor
Model Number:	MSGM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

12mm Gearbox DC Gear Motor

Gearbox Shaft:

Round,D-cut,Flat,Screw Ect

OEM & ODM:

Accepted

Motor Size:

12mm *24mm

Gear Ratio:

Customized

Gearbox Size:

12*24mm Gear Box

Certificate:

CE,ROHS,ISO

Usage:

Robotics And Actuator ,Electronic Lock,Toy Car ,Locks,3D Printer

Material:

RohS Metal

Motor Type:

Miniature Dc Gear Motor

Protect Feature:

Explosion-proof

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12mm Micro Electric Motor

N20 DC Gear Motor

N20 Micro DC Gear Motor

Product Description

Spur Gearbox N20 DC Gear Motor 3V 6V 12mm Micro Electric Motor

Product Overview

12mm DC gear motor with N20 spur gearbox, available in 3V and 6V configurations. Ideal for robotics, locks, toys, and various electronic applications.

Key Features

Gearbox dimensions: 12×24mm with N20, N30, N10 permanent magnet DC motors
Customizable reduction ratios: 1:10 to 1:1000
Motor speed proportional to voltage input
EU environmental standards compliant: low energy consumption and noise
Optional encoders and custom gear configurations
Professional quality control with comprehensive testing
Customizable voltage, speed, torque, and shaft specifications

Shaft Types Available

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 series
Trapezoid/I-cut Type: DIA3-I2, DIA4-I3
Other Types: Shaft with hole, custom designs

Technical Specifications

Speed (RPM): 5-1000 rpm

Continuous Current: Customized

Gearbox Shaft: Customized Round, D-cut, Flat, Screw, etc.

Warranty: 3 Months - 1 Year

Place of Origin: Guangdong, China

Brand Name: Masing Motor

Model Number: MS1224GAN20

Applications: Car toys, Robot, Locks, Locker lock, Beauty devices, smartphone holders

Type: 1224 DC Gear Motor

Gear Ratio: Customized 1:10-1:1000 ratio

Construction: Permanent Magnet

Commutation: Brushed N20 motor

Protect Feature: Exposed Gearbox

Product Name: 12mm 12 volt gear reduction motor

Gear Box: Steel plate or Copper plate

Certificate: CE, Rohs, EU, ISO

Gearbox Size: 12mm×24mm

Weight: 10g

Noise: ≤55DB

MOQ: 1000Pcs

Life time: 100hours-1000hours

Color: Customer's Request

Motor type: Small dc gear motors 300rpm

Product Images

Technical Specifications Table

MODEL	VOLTAGE (V)	NO-LOAD SPEED (rpm)	NO-LOAD CURRENT (A)	MAX EFFICIENCY SPEED (rpm)	MAX EFFICIENCY CURRENT (A)	MAX EFFICIENCY TORQUE (mNm)	STALL TORQUE (mNm)	STALL CURRENT (A)	GEAR RATIO	GEAR BOX LENGTH (mm)	MATCH MOTOR	MOTOR LENGTH (mm)
MS-12FN20-11	5	1854	0.054	1468	0.20	3.0	6.0	0.74	11	9	N20	15
MS-12FN20-37	5	554	0.050	436	0.22	10.0	24.2	0.74	37	9	N20	15
MS-12FN2060	5	410	0.050	323	0.22	13.6	27.2	0.74	50	9	N20	15
MS-12FN20-97	5	211	0.060	166	0.22	26.3	52.8	0.74	97	9	N20	15
MS-12FN20-117	5	175	0.058	138	0.25	31.8	63.6	0.74	117	9	N20	15
MS-12FN20-150	5	137	0.058	108	0.25	40.7	81.6	0.74	150	9	N20	15

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or customized packaging

Port: Shenzhen/Guangzhou/Shanghai

Single Package Size: 12×10×24mm

Single Gross Weight: 0.01kg

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece

Sample Price: $5/piece

Certifications & Factory

Applications

Driverless vehicles, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Frequently Asked Questions

Q1: How about the quality of products in your company?

We have high quality products with good feedback from clients worldwide. We provide immediate support for any issues under guarantee and maintain a complaint rate of approximately 1%.

Q2: What is your guarantee for the products?

We offer technical support and spare parts for repairs if any quality problems occur, and we follow up until complete satisfaction.

Q3: Can you provide OEM or ODM service?

Yes, both OEM and ODM services are available.

Q4: Do you accept customization?

Yes, we have a strong design team to handle custom requirements and provide technical solutions.

Q5: What kind of data do I need to provide if I want to order?

Please provide your rated voltage, no load speed, load speed, load torque, and overall dimension requirements.

Q6: How can I know the product is suitable for me?

Provide us with detailed product requirements and we will recommend suitable items. We can prepare samples and offer advice based on your application needs.

Q7: How long is the delivery time?

Delivery time depends on order quantity, typically 15-25 working days.
