3V 6V 12mm Mini Gear Motor 12 Volt Metal Gearbox DC Motor With Gearbox And Encoder

3V 6V 12mm Mini Gear Motor 12 Volt Metal Gearbox DC Motor With Gearbox And Encoder

Brand Name:	Masing Motor
Model Number:	MSGM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

N20 DC Gear Motor With Encoder

Gearbox Materail:

Copper Or Steel Plate Gearbox

OEM & ODM:

Accepted

Motor Size:

12mm *15mm

Gear Rate:

1:10-1:1000 Ratio

Gearbox Size:

12*9mm Gearbox Rohs Metal

Life:

500hours -1000hours Long Life

Usage:

Toy Car ,Locks,3D Printer

Protect Feature:

Totally Enclosed

Motor Type:

N20 Motor With Encoder EMC PCB

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

3V 6V 12mm Mini Gear Motor

DC Motor With Gearbox And Encoder

Metal Gearbox DC Motor

Product Description

3V 6V 12mm Mini Gear Motor 12 Volt Metal Gearbox DC Motor With Gearbox And Encoder

Product Overview

DC Gear Motor 12mm 12Volt Micro Geared Motor N20 Encoder EMC PCB 3V 6V N20 N30 Metal Gearbox DC Motor for Toy Car Steel Plate Gearbox

Key Features

Applications: Robot, Locks, Locker lock, Toys car
Factory customization: Customized according to demand, high performance, stable and controllable
Gearbox: 12×9mm gearbox with N20, N30, N10 permanent magnet DC motors
Meet EU environmental standards: Low energy consumption, low noise
Encoders, gears and other requirements can be configured
Reduction ratio: Customized 1:10 to 1:1000
Quality: Professional equipment, improved testing process, quality control system
Motor voltage, speed, torque, eccentric wheel size and material can be customized

Shaft Types

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 Serial
Trape Type I-cut Type: DIA3-I2, DIA4-I3
Other Type: Shaft with a hole, etc.

Technical Specifications

Speed (RPM)	Customized
Continuous Current (A)	10mA-200mA
Gearbox Shaft	Customized Shaft
Warranty	3 Month - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS12FN20
Use	Car toys, Robot, Locks, Locker lock, Beauty devices, smartphone holders
Type	N20 Geared Motor
Gear Ratio	1:10 - 1:1000
Construction	Permanent Magnet
Commutation	N20 DC Brushed Motor
Protect Feature	Exposed Gearbox
Product Name	N20 Mini Gearbox DC Motor
Gear box	Steel plate or Copper plate
Certificate	CE, Rohs, EU, ISO
Gearbox Size	12mm × 9mm
Weight	10g
Noise	≤55DB
MOQ	1000Pcs
Gears	Hobbing Gears, Rohs Metal, Steel or Copper
Color	Customer's Request
Motor type	DC Brush Motor with encoder

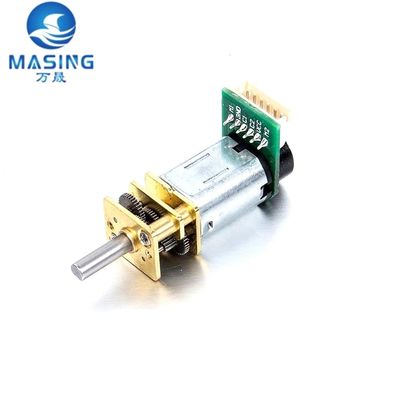

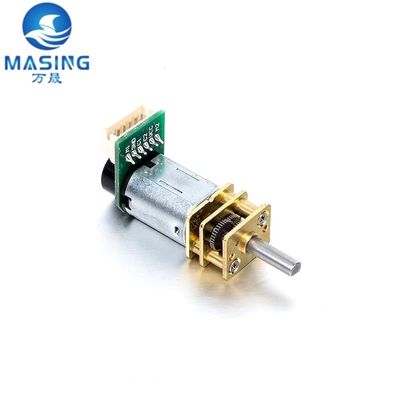

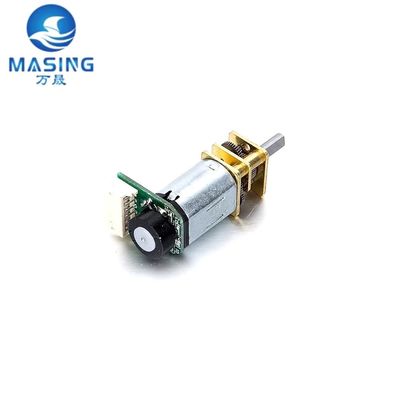

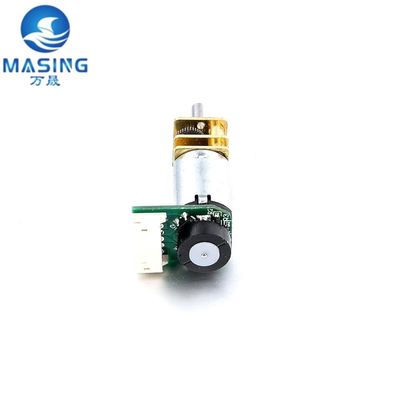

Product Images

Packaging & Delivery

Packaging Details: Strong Carton 1000pcs/box, or as you wish.

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Single package size: 12×10×24mm

Single gross weight: 0.01kg

Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	Lead time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum order quantity: 1 piece

Sample price: $5/piece

Certifications & Factory

Applications

Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Frequently Asked Questions

Q1: How about the quality of products in your company?

A: We have high quality products with good feedback from clients worldwide. We provide immediate support for any issues under guarantee and maintain complaint records below 1%.

Q2: Do you accept customize?

A: Yes, we have a strong design team to provide technical solutions for custom requirements.

Q3: What kind of data do I need to provide if I want to order?

A3: Please provide your rated voltage, no load speed, load speed, load torque and overall dimension requirements.

Q4: What is your guarantee for the products?

A4: We offer technical support and spare parts for repair if any quality problems occur, and follow up until you are satisfied.

Q5: Can you provide OEM or ODM service?

A5: Yes, OEM and ODM services are both available.

Q6: How long is the delivery?

A6: Delivery time depends on order quantity, typically 15-25 working days.

Q7: How can I know the product is suitable for me?

A: Provide detailed information about your requirements and we will recommend suitable items. We can prepare samples and offer advice based on your product use.
