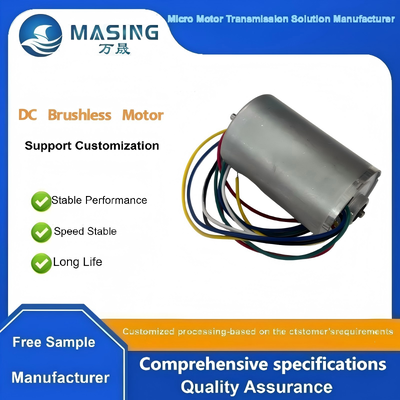

BLDC 3657 Brushless Motor with Driver 24v 12v CW/CCW PWM Speed Control

BLDC 3657 Brushless Motor with Driver 24v 12v CW/CCW PWM Speed Control

Brand Name:	Masing Motor
Model Number:	MSBL3657
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

Brushless DC Motor BLDC 3657

Shaft Size:

D-cut Or Round Or Double Flat Shaft Ect

Motor Size:

Dia36mm*57mm

Bearing:

Ball Bearing Or Oil Bearing

Product Type:

Brushless DC Motor 12V

Forward And Reverse Functions:

CW/CCW

Structure:

Built-in Drive

Signal Output Function:

FG Sigal Pulse

Pulse Width Speed Regulation Funtion:

PWM Control

Motor Life:

About 5000Hours

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

BLDC 3657 Brushless Motor with Driver 24v 12v CW/CCW PWM Speed Control

BLDC 3657 Brushless DC Motor with Driver featuring advanced speed control and protection features for industrial applications.

Key Features

Forward and reverse functions (CW/CCW rotation)
PWM speed control for precise regulation
FG signal output for monitoring
Built-in protection: Locked rotor and overcurrent protection
Motor life: ~5000 hours
Compatible with gears, encoders, and brakes
Working temperature: -40°C to +60°C
Noise level: ≤55dB

Technical Specifications

Model Number	MSBL-3657
Voltage Range	6V - 24V DC
Speed Range	2000 - 10000 RPM
Continuous Current	0.16 - 0.19A
Torque	135 - 185 gf.cm
Shaft Diameter	5mm
Dimensions	36mm diameter × 57mm length
Weight	55g
Efficiency	IE3
Construction	Permanent Magnet
Protection	Totally Enclosed

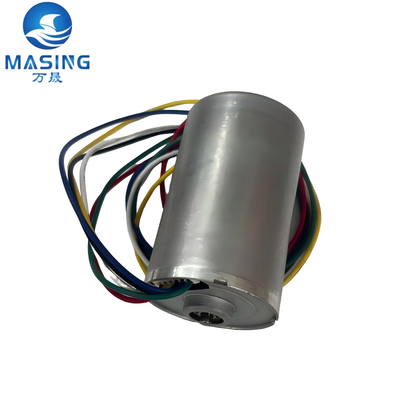

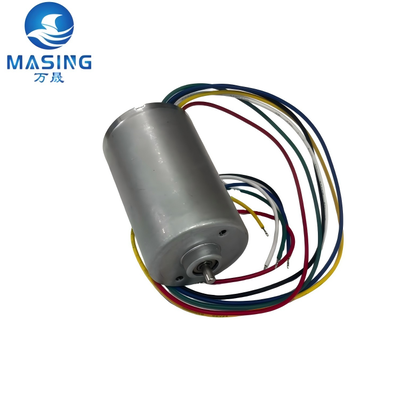

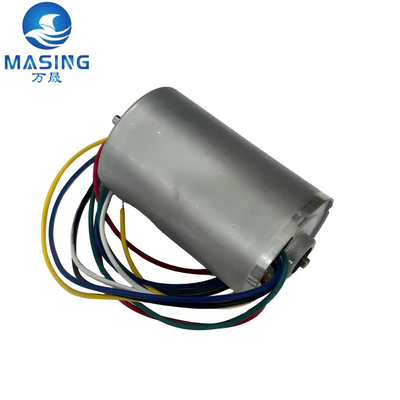

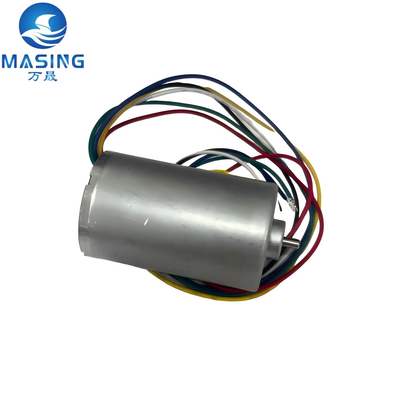

Product Images

Applications

Toys and Robotics
Massagers and Personal Care Devices
Robot Vacuum Cleaners
Car Flip Screens and Automotive Systems
Intelligent Trash Cans
Power Tools
Smart Home Devices
Medical Imaging Equipment
Cosmetic Instruments
Electric Bicycles and Fans

Customization Available

Motor voltage, speed, torque, eccentric wheel size, and materials can be customized according to customer requirements. Structure selection available: Built-in driver or external driver.

Technical Diagram

Ordering Information

Quantity	Lead Time
1 - 100 pieces	10 days
101 - 1000 pieces	15 days
Over 5000 pieces	To be negotiated

Sample Information

Maximum sample order: 1 piece
Sample price: $15/piece

Packaging

Strong carton packaging: 250pcs/box, or customized as required

Supply Capacity

100,000 pieces per month

Important: Please refer to the rated voltage used by our motor. Voltage exceeding the specified range may cause motor damage.

Certifications & Quality

We hold CE, FCC, ISO certifications and can apply for additional certifications as required.

Manufacturing Capabilities

Frequently Asked Questions

How to select a suitable motor?

If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Do you have a customized service for your standard motors?

Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Do you have an individual design service for motors?

Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Can I have samples for testing first?

Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

How do you make sure motor quality?

We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

What's your lead time?

Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

United States Feb 2.2026

Helpful (88)

Perfect,I had no issues with the order process or packaging, everything was smooth.

J*y

Switzerland Nov 28.2025

Helpful (100)

Great quality brushless motor! Consistent power, long service life, and fits perfectly in small smart projects.
