12V 24V Brushless DC Motor BLDC 3657 Brushless Motor 35000rpm With Driver

12V 24V Brushless DC Motor BLDC 3657 Brushless Motor 35000rpm With Driver

Brand Name:	Masing Motor
Model Number:	MSBL3657
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

Brushless DC Motor BLDC 3657

Shaft Size:

D-cut Or Round Or Double Flat Shaft Ect

Motor Size:

Dia36mm*57mm

Bearing:

Ball Bearing Or Oil Bearing

Product Type:

Brushless DC Motor 12V

Forward And Reverse Functions:

CW/CCW

Structure:

Built-in Drive

Signal Output Function:

FG Sigal Pulse

Pulse Width Speed Regulation Funtion:

PWM Control

Motor Life:

About 5000Hours

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

24V Brushless DC Motor BLDC

BLDC Brushless DC Motor

24 volt brushless motor BLDC

Product Description

BLDC 3657 Brushless DC Motor with Driver

High-performance 12V/24V brushless DC motor operating at 35000rpm with integrated driver for precise speed control and reliable operation.

Key Features

Forward and reverse functions (CW/CCW rotation)
PWM speed control for precise regulation
FG signal output for monitoring
Built-in protection: Locked rotor and overcurrent protection
Motor life: ~5000 hours
Compatible with gears, encoders, and brakes
Working temperature: -40°C to +60°C
Noise level: ≤55dB

Technical Specifications

Parameter	Specification
Model Number	MSBL-3657
Voltage Range	6V - 24V DC
Speed Range	2000 - 10000 RPM
Continuous Current	0.16 - 0.19A
Torque	135 - 185 gf.cm
Shaft Diameter	5mm
Dimensions	36mm diameter × 57mm length
Weight	55g
Efficiency	IE3
Construction	Permanent Magnet
Protection	Totally Enclosed

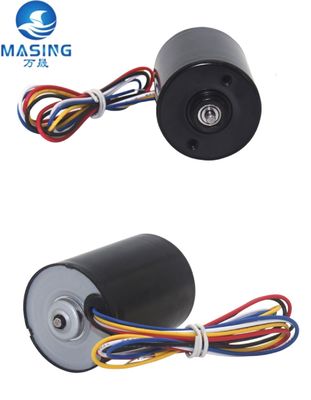

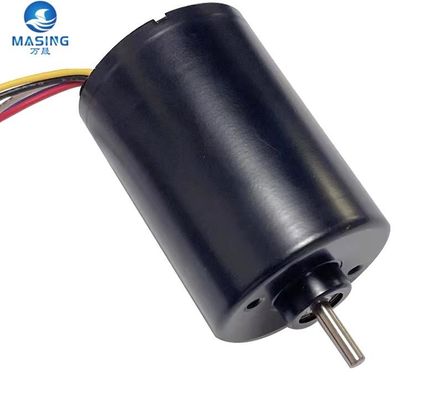

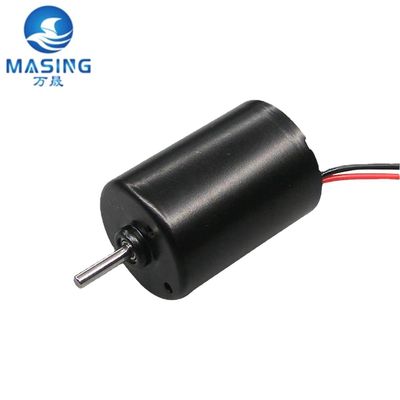

Product Images

Applications

This versatile brushless motor is suitable for various applications including:

Toys and Robotics
Massagers and Personal Care Devices
Robot Vacuum Cleaners
Car Flip Screens and Automotive Systems
Intelligent Trash Cans
Power Tools
Smart Home Devices
Medical Imaging Equipment
Cosmetic Instruments
Electric Bicycles and Fans

Customization Available

Motor voltage, speed, torque, eccentric wheel size, and materials can be customized according to customer requirements. Structure selection available: Built-in driver or external driver.

Technical Diagram

Ordering Information

Quantity	Lead Time
1 - 100 pieces	10 days
101 - 1000 pieces	15 days
Over 5000 pieces	To be negotiated

Sample Information

Maximum sample order: 1 piece
Sample price: $15/piece

Packaging

Strong carton packaging: 250pcs/box, or customized as required

Supply Capacity

100,000 pieces per month

Important: Please refer to the rated voltage used by our motor. Voltage exceeding the specified range may cause motor damage.

Certifications & Quality

We hold CE, FCC, ISO certifications and can apply for additional certifications as required.

Manufacturing Capabilities

Frequently Asked Questions

Can you accept OEM service?

Yes, we provide complete OEM services. Please contact us with your product requirements, and we will manufacture according to your specifications.

Can we test samples?

Yes, we have a dedicated R&D and Testing Center. Customized samples and freight charges apply.

How to confirm the payment?

We accept T/T, PayPal, and other payment methods. Typically, 30-50% deposit is required, with balance payment before shipping.

How long is the delivery time?

Delivery time depends on order quantity, typically 15-25 working days.

Do you offer discounts?

As a factory, we offer competitive pricing. Large quantity orders are eligible for price negotiation.

Do you have certificates for your motors?

Yes, we hold CE, FCC, ISO certifications. Additional certifications can be applied for with applicable charges.
