Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

Brand Name:	Masing Motor
Model Number:	MSBL-2418
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Porduct Name:

2418 Micro Brushless Dc Motor

Shaft Diameter:

φ2mm Or Customized

Motor Diameter:

φ24.4mm

Torque:

Customized

PWM:

PWM Countrol(Standard)

Motor Type:

3 Phases 12 Poles

Structure:

Internal Drive

Life Expectancy:

3000H(Oil Bearing)

Signal:

Signal Function Available

Motor Size:

Dia 24.4mm*18mm

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

Brushless Electric Motor 12V

Mini BLDC Motor High Speed

High Speed BLDC Motor 24V

Product Description

Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

DC Brushless Motor 12v 24v Micro Electric Engine 2418 With Hall Drive Board High Speed Mini BLDC Motor designed for automation equipment and various precision applications.

Product Features

Widely used in: Robot, Toys, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Voltage range: 6V-24V or customized
Speed: 1000-10000 RPM
Rotating speed is constant and can be customized
Size: 24.4×15mm, diameter 24.4mm, 18mm length mini brushless motor
Suitable for small diameter, low noise and high torque applications
Motor default direction: CW & CCW
Shaft material: Steel or Carbon steel shaft or customized
Shaft diameter: φ2.0mm
Shaft type: Round, D-cut, Flat, with Hole, Threaded shaft, Threaded hole, etc.
Can be matched with wheel configurations
Working temperature: -40°C to +60°C
Samples available for testing

Technical Specifications

Power: 3W (Internal Drive)
Connection Mode: A
Clockwise Rotation/Counter Clockwise Rotation
Signal Function Available
PWM Control (Standard)
Locked Rotor Protection
Life Expectancy: 3000H (Oil Bearing)

Key Attributes

Speed (RPM)	1000-10000 rpm or customized
Continuous Current (A)	20-200mA
Efficiency	70%-90%
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	BLDC2418 Brushless DC Motor
Use	FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment, Toys, Robots
Motor Type	Brushless Motor
Phases	3 phases 12 poles
Structure	Internal Drive
Commutation	Brushless
Protect Feature	Totally Enclosed
Signal	Signal Function Available
PWM	PWM Control (Standard)
Keywords	12v DC Brushless Motor
Shaft Diameter	φ2.0mm
Weight	15g
Noise	≤55DB
MOQ	1000Pcs
Life Expectancy	3000H (Oil Bearing)
Color	Customer's Request
Motor Size	Dia 24.4mm×18mm

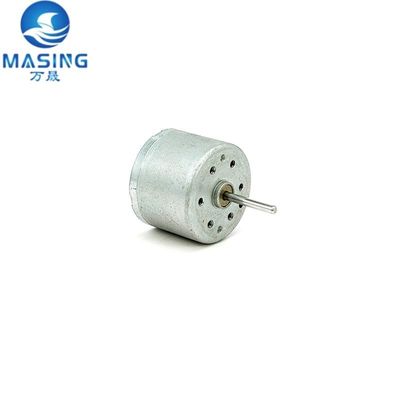

Product Images

Technical Data

BLDC 2418 Brushless Motor Typical Applications: Toys, Robots, Robot vacuum cleaner, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment

Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Motor model	Rated voltage VDC	No-load Speed r/min	No-load Current mA	Rated Speed r/min	Rated Torque g.cm	Rated Current mA	Power W	Stall Torque g.cm	Stall Current A
BLDC-2418-1262	12.0	6200	60	5100	20	180	1.05	110	0.7
BLDC-2418-2487	24.0	8700	50	7500	20	130	1.54	145	0.7

Packaging & Delivery

Packaging Details: Strong Carton 250pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Single package size: 37×27×24cm
Single gross weight: 8.0kg

Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $8/piece

Certifications & Factory

Product Classification & Applications

Applications: Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Frequently Asked Questions

Q1: How to proceed an order for products?

A1:

Firstly let us know your requirements or application
Secondly We quote according to your requirements or our suggestions
Third customer confirms the samples and places deposit for formal order
Fourth We arrange the production

Q2: How about Sample order?

A2: Sample is available for you. Please contact us for details.

Q3: Which shipping way is available?

A3: DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q4: How long is the delivery?

A4: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Q5: Do you offer a guarantee for the products?

A5: If you have any issue with our product, simply send us a message. Your problem will be solved within 7*24 hours. And if there is quality problem for product, we will replenish for you.

Q6: How to confirm the payment?

A6: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

For any additional questions, please contact us directly.
