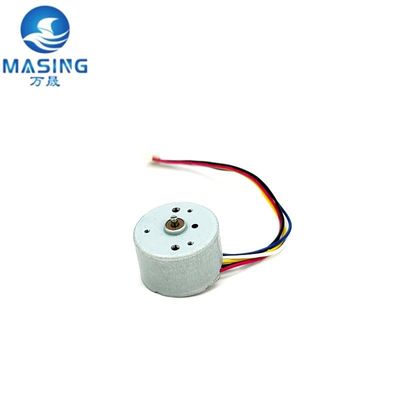

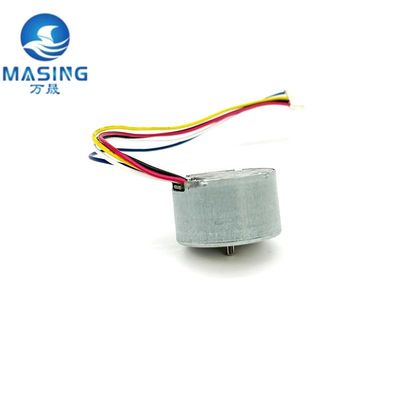

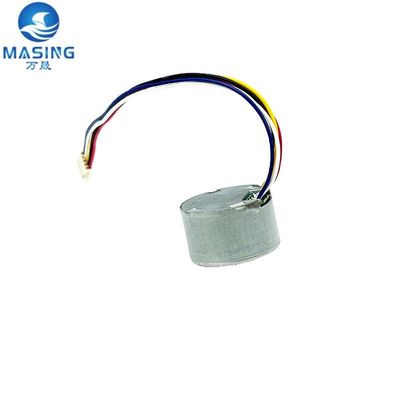

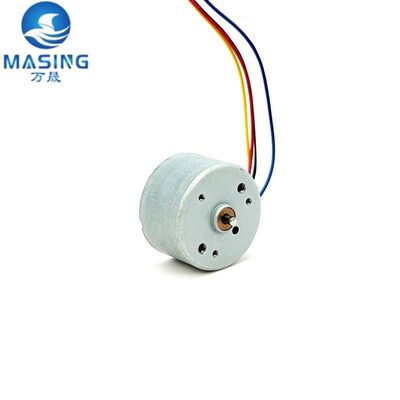

24mm Micro Brushless DC Motor 12V For Reverse And Reverse Speed Control

24mm Micro Brushless DC Motor 12V For Reverse And Reverse Speed Control

Brand Name:	Masing Motor
Model Number:	MSBL2415
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Product Name:

2415 Dc Brushless Motor

Shaft Diameter:

φ2mm

Motor Diameter:

φ24mm

Shaft Material:

Steel And Carbon Steel Shafts

Motor Type:

DC Brushless Motor

Application:

Breast Pump,Household Appliance

Structure:

Built-in Drive

Key Words:

2415 Micro Brushless Motor

Voltage:

6v-24v

Dierection Of Motor:

CW & CCW

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

Micro Brushless DC Motor 12V

12V Brushless DC Motor

24mm Brushless Motor

Product Description

24mm Micro Brushless DC Motor 12V For Reverse And Reverse Speed Control

Product Overview

Diameter 24mm Micro 12V Brushless DC Motor with reverse and reverse speed control, featuring 5 lines and long life expectancy.

Widely used in: Breast pump, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Voltage range: 6V-24V
Speed: 1000-10000 RPM
Rotating speed is constant and can be customized as required
Size: 24.4×15mm, diameter 24.4mm, 15mm length brushless motor
Suitable for small diameter, low noise and big torque applications
Motor default direction: CW & CCW
Can be matched with wheel - one shaft one wheel or one motor, one wheel
Connection Mode: A type
Motor direction: Clockwise Rotation/Counter Clockwise Rotation
Signal: Signal Function Available
PWM Control (Standard)
Locked Rotor Protection
Power: 3W (Internal Drive)
Life Expectancy: 3000H (Oil Bearing)
Working temperature: -40°C to +60°C
Samples available for testing
Every product passes quality inspection before shipment

Technical Specifications

Speed (RPM)	1000-10000 rpm or customized
Continuous Current (A)	20-200mA
Efficiency	70%-90%
Warranty	Others
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MSBL-2415
Use	Breast pump, Toys, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Type	DC Brushless Motor
Torque	Customized
Power	3W (Internal Drive)
PWM	PWM Control (Standard)
Protect Feature	Totally Enclosed
Life Expectancy	3000H (Oil Bearing)
Signal	Signal Function Available
Motor Diameter	φ24.4mm
Weight	15g
Noise	≤55DB
MOQ	1000Pcs
Connection Mode	A
Color	Customer's Request
Motor Type	DC Brushless Motor

Product Images

Technical Diagrams

Packaging & Delivery

Packaging Details: Strong Carton 250pcs/box, or as requested

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Single Package Size: 37×27×24cm

Single Gross Weight: 8.0kg

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece

Sample price: $8/piece

Certifications

Factory & Products

Applications

Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Frequently Asked Questions

Q1: What is the lead time for samples and mass production?

A1: Within 2-3 working days for samples and 5-20 days for mass production.

Q2: How to proceed an order for products?

A2: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Third customer confirms the samples and places deposit for formal order. Fourth We arrange the production.

Q3: Is it OK to print my logo on the product?

A3: OEM & ODM are welcome. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: Do you offer a guarantee for the products?

A4: If you have any issue with our product, simply send us a message. Your problem will be solved within 7*24 hours. And if there is quality problem for product, we will replenish for you.

Q5: How about the other advantages?

A5: Good quality and lots of new, hot sales products; Professional and friendly customer service and timely reply! If you sell online, we can offer professional graphic design service and nice picture to help you do your business; Full stock: You have no pressure stock, you can order the quantity you need. We have excellent transport shipping channels, good transport price and shipping time.
