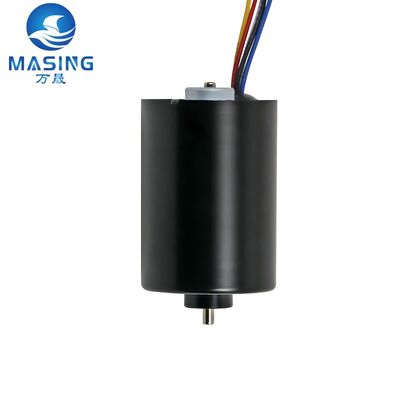

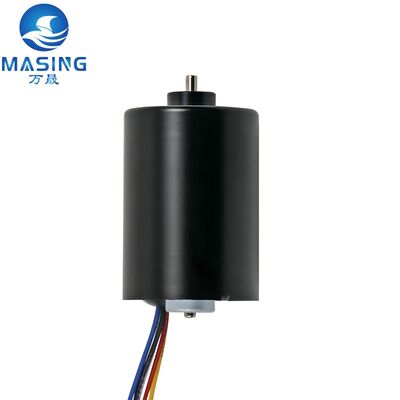

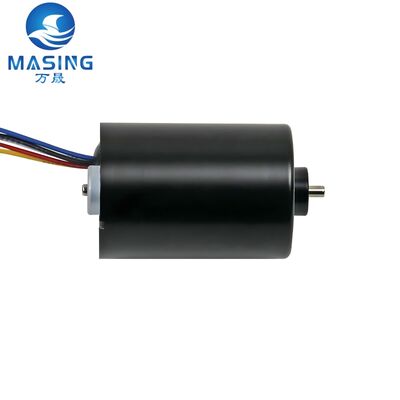

High Quality 36mm Small Brushless DC Bldc Motor 12V 24V 18V BL3650 With Driver For Sweeping Robot And Pump

Name: High Quality 36mm Small Brushless DC Bldc Motor 12V 24V 18V BL3650 With Driver For Sweeping Robot And Pump
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-BL3650
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-BL3650
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

Bl3650 36mm Dc Brushless 12v

Shaft Size:

D-cut Or Round Or Double Flat Shaft Ect

Motor Size:

Dia36mm*50mm

Connection Mode:

B Model

Power:

30w(Internal Drive)

Rotation:

Clockwise Rotation/Counter Clockwise Rotafion

Structure:

Built-in Drive

Function:

Signal Function Available

Pulse Width Speed Regulation Funtion:

PWM Control

Life Expectancy:

500oH(BallBearing)

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

36mm brushless DC motor with driver

12V 24V BL3650 motor for sweeping robot

small BLDC motor for pump application

Product Description

BL3650 36mm Brushless DC Motor

High-quality 36mm small brushless DC motor available in 12V, 18V, and 24V configurations with driver, designed for sweeping robots, pumps, and various automation applications.

Key Features

Forward and reverse rotation (CW/CCW)
FG signal output function
PWM speed control
Locked rotor and overcurrent protection
Power options: 30W (internal drive) and 50W (external drive)
Motor life: ~3000H (Oil bearing) and ~5000H (Ball bearing)
B Model connection
Compatible with gears, encoders, and brakes
High efficiency (IE3 standard)
Low noise operation (≤55DB)
Working temperature: -40°C to +60°C

Technical Specifications

Model: MS-BL3650

Diameter: 36mm

Length: 50mm

Shaft Diameter: 5mm or customized

Weight: 190g

Voltage Range: 6V-24V

Speed Range: 2000-10000 RPM

Torque: Customized 135-185 gf.cm

Construction: Permanent Magnet

Enclosure: Totally Enclosed

Product Images

Performance Characteristics

The left side of the redline area indicates the continuous operation zone for optimal performance and longevity.

Applications

Medical Equipment

Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer

Business Machines

Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen

Electric Powered Equipment

Electric toothbrush, Electric tool, Electric toy car, Electric curtain

Smart Home

Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun

Food and Beverage

Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors

Robotics

Servicing robotics, Food delivery robot, Medical serving robot, AGV & AMR

Packaging & Delivery

Packaging: Strong carton (100pcs/box) or customized packaging
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37*27*24cm
Gross Weight: 190g
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $15 per piece

Certifications & Factory

Frequently Asked Questions

Q1: How to select a suitable motor?

A1: If you have motor pictures, drawings, or detailed specifications including voltage, speed, torque, motor size, working mode, required lifetime, and noise level, we can recommend the most suitable motor for your application.

Q2: Do you have a customized service for your standard motors?

A2: Yes, we can customize voltage, speed, torque, shaft size/shape, and add additional components like wires/cables, connectors, capacitors, or EMC protection as required.

Q3: Do you have an individual design service for motors?

A3: Yes, we provide individual motor design services. Custom designs may require mold charges and design fees.

Q4: Can I have samples for testing first?

A4: Yes, after confirming the required motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.

Q5: How do you ensure motor quality?

A5: We maintain strict quality control with inspection procedures for incoming materials, production process tour inspections, and final product inspection before shipping.

Q6: What's your lead time?

A6: Standard products typically require 25-30 days, while customized products may take longer. Lead times are flexible and depend on specific order requirements.
