1024 N20 Flipped Gear Micro DC Motor 5V/6V/12V Brushed M3 Shaft Home Appliance Smart-Door-Lock & Medical Robot

1024 N20 Flipped Gear Micro DC Motor 5V/6V/12V Brushed M3 Shaft Home Appliance Smart-Door-Lock & Medical Robot

Brand Name:	Masing Motor
Model Number:	MSGM1024N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949 ,ROHS, CE, ISO

Product Name:

1024 Gearbox Motor

Shaft Tpye:

Flat, D-cut, Round,with A Hole ,with Worm Ect

Brush Type:

Metal Brush Or Carton Brush Motor

Rated Torque:

0.1kgf.cm-2kgf.cm

Gearbox Size:

φ12mm *24mm

Motor Type:

FF-N10,FF-N20,FF0N30

Direction Of Rotation:

CCW&CW

Construction:

Permanent Magnet

Voltage Range:

9.0V-16.0V DC

Operating Temperature Range:

-40℃-+85℃

Insulation Resistance:

B CLASS

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Product Description

N20 Gear Motor M3 M4 Shaft Title:

1024 N20 Flipped Gear Micro DC Motor 5V/6V/12V Brushed M3 Shaft Home Appliance Smart-Door-Lock and Medical Robot and Mechanical Arm

N20 Gear Motor M3 M4 Shaft Description:

Operating voltage range:9.0V-16.0V DC Ratedd voltage:12.0V
Operating Temperature Range:-40℃-+85℃
Storage temperature Range:-40℃-+105℃
Insulation Resistance:B CLASS
Gearbox materials :Copper or steel or customized
Gearbox size :φ12mm*24mm
Shaft diameter :φ3mm
Shaft type:D-cut ,Flat ,round ,M3,M4 or customized
Gear Ratio:1:165 or customized
Life test:Life expectancy is more than 100000 cycles
Noise :50DB Max ,Rated voltage & no load operation. Measured with following condition.Background noise: 32db max.
High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%
Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
We can provide samples for testing
Every product before shipped is 100% inspected for quality

N20 Gear Motor M3 M4 Shaft Key attributes:

No-load Speed(RPM)

5RPM-500RPM

No-load Current

0.01-0.5A

Efficiency

90%-55%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-GM1024N20

Use

New energy charging pile motor,Car, Robots ,Locks ,Electric Bicycle Lock, Home Appliance, Cosmetic Instrument, SMART HOME,Medical Robot,Mechanical Arm

Brush Type

Metal brush/Carton brush

Temperature Range

-40℃-+85℃

Gear type

Spur gears

Shaft diameter

φ3mm

Protect Feature

Exposed Gearbox

Product Name

1024 gearbox motor

Direction of motor

CW & CCW

Keywords

1000rpm micro gear motor 6v

Gearbox Diameter

φ12mm,φ13mm,φ14mm,ect

Weight

12g

Noise

50dB max

MOQ

1000Pcs

Shaft type

D-cut ,Flat ,round ,M3,M4 or customized

Insulation Resistance

B CLASS

Gear Ratio

1:10 to 1:1000

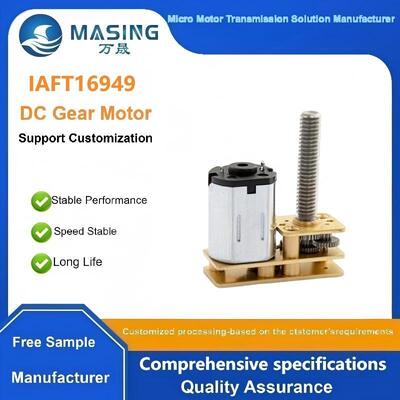

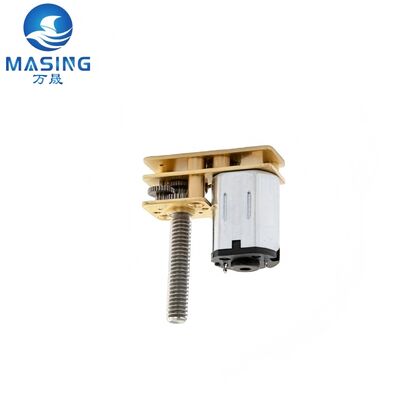

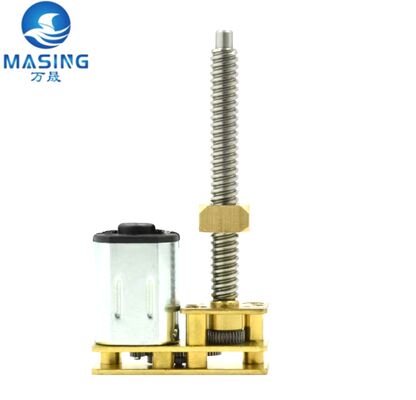

N20 Gear Motor M3 M4 Shaft Product Photo:

1024 N20 Flipped Gear Micro DC Motor 5V/6V/12V Brushed M3 Shaft Home Appliance Smart-Door-Lock & Medical Robot 1

N20 Gear Motor M3 M4 Shaft Product Spec:

N20 DC Gear Motor Typical Applications:

Home Appliance, robot,door lock,camera,medcial device,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

GM1224-N20-3.0V

Reduction	10	30	50	100	150	210	250	298	330
Length(mm)	9	9	9	9	9	9	9	9	9
No-load speed(rpm)	960	320	192	96	64	46	38	32	29
Rated speed(rpm)	730	243	146	73	49	35	29	24	22
Rated torque(kg.cm)	0.02	0.04	0.06	0.12	0.15	0.21	0.25	0.30	0.33
Stalling Torque (kg.cm)	0.07	0.18	0.25	0.50	0.63	0.88	1.04	1.24	1.38
GM1224-N20-12.0V
Reduction	50	100	150	210	250	298	330	380	1000
Length(mm)	9	9	9	9	9	9	9	9	12
No-load speed(rpm)	460	230	153	110	92	77	70	61	23
Rated speed(rpm)	410	205	137	98	82	69	62	54	21
Rated torque(kg.cm)	0.06	0.12	0.15	0.21	0.25	0.30	0.33	0.38	0.60
Stalling Torque (kg.cm)	0.55	1.10	1.38	1.93	2.30	2.74	3.04	3.50

Packaging and delivery:

Packaging Details

Strong Carton 1000pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

10.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$10/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Locks,Car, Electric Bicycle, Home Appliance, Cosmetic instrument

FAQ

Q1: How to order?
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.

Q2: Do you manufacture products yourself ?
A2: Yes,we manufacture products by ourself.we have our own R&D team and industral park,we control all the design and producing procedures ourselves,so just send us inquiry,and we will do allthe rest things for you.

Q3: Do you own patents ?
A3: Yes,we own patents on all our products,so don't worry,you won't infringe any patents if you sell our products

Q4: Do you accept private label?What's the MOQ?
A4: Yes,we accept private label,MOQ is depends on which model,some is 1000pcs,some is 500pcs.

Q5:What testing certificates do you have?
A5: We have CE,ROHS,ISO9001,ISO14000,IATF16949 certificates,we will also help
to make any other testings if you need.
