BL2418 3.7v 7000rpm 24mm Micro Brushless Motor Trimmer Motor PWM Speed Small Motor Brushless

BL2418 3.7v 7000rpm 24mm Micro Brushless Motor Trimmer Motor PWM Speed Small Motor Brushless

Brand Name:	Masing Motor
Model Number:	MS-BL2418
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Key Word:

Micro Brushless Motor Trimmer Motor

Shaft Diameter:

φ2.0mm

Motor Spec:

Customization

Rated Torque:

5gf.cm-50gf.cm

Product Type:

Brushless DC Motor

Application:

Breast Pump

Direction Of Motor:

CW &CCW

Rated Speed:

2000rpm-10000rpm

Motor Size:

Dia 24.4mm*18mm

Function:

Speed Reduce

Material:

Steel,Copper

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Product Description

Micro Brushless Motor Trimmer Motor Title:

BL2418 3.7v 7000rpm 24mm Micro Brushless Motor Trimmer Motor PWM Speed Small Motor Brushless

Micro Brushless Motor Trimmer Motor Description:

Widely used in :BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Rated Voltage range:DC 6v-24V
Rated Speed:1000-10000RPM
Rotating speed is constant and can be made as you required.
Size: φ24.4mm*18mm,diamter 24.4mm 18mm Length Small Electric Brushless Dc Motor BL2418
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW
Shaft diameter :φ2.0mm
Motor type :Brushless Motor
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
We can provide samples for your test.

Micro Brushless Motor Trimmer Motor Key Attributes:

Rated Speed(RPM)

2000rpm-10000 rpm

Continuous Current(A)

20-200mA

Efficiency

70%

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

Micro Brushless Motor Trimmer Motor

Use

BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment

Type

5v Micro Brushless Motor

Rated Torque

5gf.cm-100gf.cm

Construction

Permanent Magnet

Commutation

High Power Micro Brushless Motor

Protect Feature

Totally Enclosed

Product Name

Micro DC Motor

Application

Home Appliance Smart House Breast pump

Keywords

2W Brushless Motor

Motor Diameter

φ24.4mm

Weight

30g

Noise

≤55DB

MOQ

1000Pcs

Encoder

Optical Encoder

Color

Customer's Request

Motor type

Brushless Motor DC 6volt

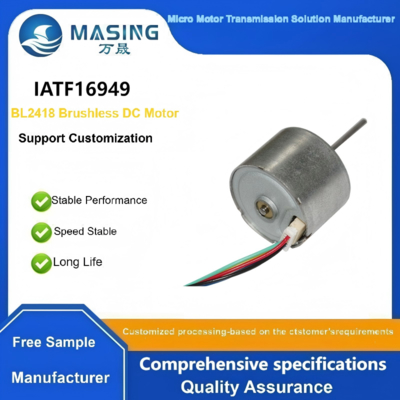

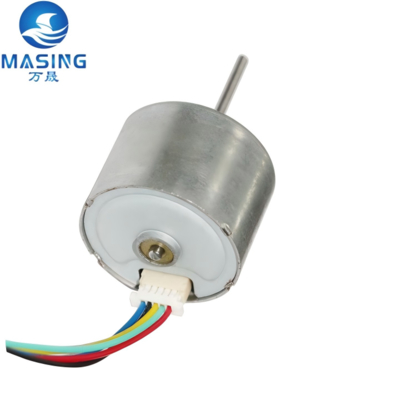

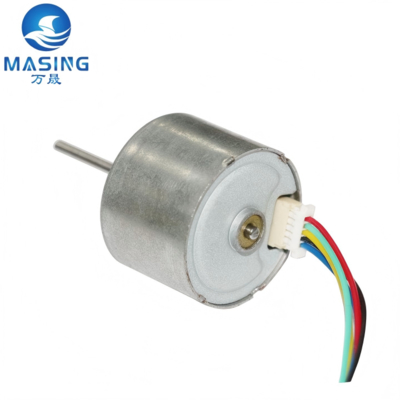

Micro Brushless Motor Trimmer Motor Product Photo:

BL2418 3.7v 7000rpm 24mm Micro Brushless Motor Trimmer Motor PWM Speed Small Motor Brushless 0

Micro Brushless Motor Trimmer Motor Product Spec:

BLDC 2418 Brushless Motor Typical Applications

● BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

BL2418 3.7v 7000rpm 24mm Micro Brushless Motor Trimmer Motor PWM Speed Small Motor Brushless 2

MotorTechnical Data
Motor model	Rated voltage	No-load		Rated				Stall
	Rated voltage	Speed	Current	Speed	Torque	Current	Power	Torque	Current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
MS-BL2418-126200	12.0	6200	60	4943	33.6	230	1.7	160	0.87
MS-BL2418-248700	24.0	8700	52	6817	37.4	180	2.62	170	0.65

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

8.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$8/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

BL2418 3.7v 7000rpm 24mm Micro Brushless Motor Trimmer Motor PWM Speed Small Motor Brushless 8

FAQ

Q1: What's the price?
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.

So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3:What's the delivery time?
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4:Can you send some samples before the order?
A4: Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5: Can you make our logo on the products?
A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
