BL2430 12V Small Size High Performance DC Brushless Motor With Integrated Driver Mini BLDC Motor

BL2430 12V Small Size High Performance DC Brushless Motor With Integrated Driver Mini BLDC Motor

Brand Name:	Masing Motor
Model Number:	MS-BL2430
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Mini BLDC Motor

Shaft Tpye:

Round,Flat ,D-cut Ect

Motor Size:

φ24.4mm*30.8mm

Motor Type:

Brushless Motor

Direction Of Motor:

CW&CCW

Signal:

Signal Function Available

Structure:

Built-in Driver Or External Driver

PWM:

PWM Countrol(Standard)

Power:

0.2W-3W(Internal Drive)

Life Expectancy:

800H-10000H

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

12v small size brushless DC motor

high performance BLDC motor with driver

mini brushless motor integrated driver

Product Description

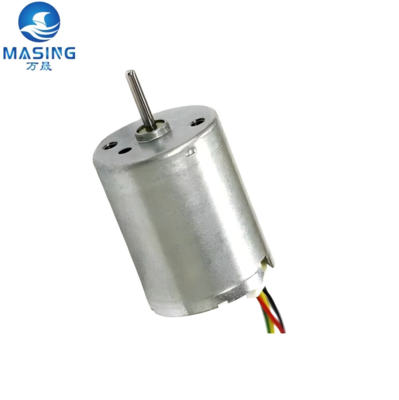

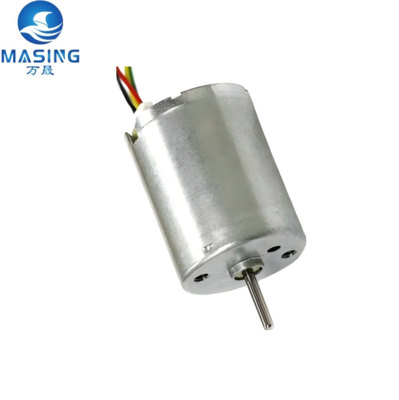

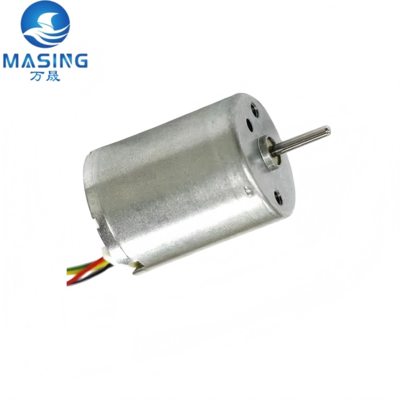

BL2430 12V Small Size High Performance DC Brushless Motor

Compact BL2430 brushless DC motor with integrated driver, designed for applications requiring small diameter, low noise, and high torque performance.

Key Specifications

Rated Voltage: DC 6V-24V
Rated Speed: 2,000-10,000 RPM
Rated Torque: 0.5G-200G
Motor Type: Brushless DC Motor
Shaft Diameter: φ2.0mm
Motor Size: φ24.4×30.8mm
Power: 3W (Internal Drive)
Weight: 25g
Noise Level: ≤55dB
Life Expectancy: 1,000-10,000 hours (Oil Bearing)
Working Temperature: -40°C to +60°C

Motor Features

Speed proportional to voltage input
Torque proportional to motor speed
Available in CW & CCW rotation directions
Built-in or external driver options
PWM control capability
Locked rotor protection
Signal function available
Compatible with wheel attachments

Product Images

Performance Data

Motor Model	Voltage Range	No Load Current	No Load Speed	Max Efficiency Current	Max Efficiency Speed	Max Efficiency Torque	Max Efficiency Power	Efficiency	Stall Current	Stall Torque
BL2430***	9-14V	0.17A	8000rpm	0.67A	6380rpm	83.1g-cm	5.4W	67.7%	2.65A	411g-cm
BL2430***	19-26V	0.05A	4600rpm	0.18A	3550rpm	67.2g-cm	2.4W	60.0%	0.58A	295g-cm

Applications

Smart home devices, robotics, office equipment, power tools, medical equipment, precision instruments, automotive electronics, personal care devices, electric bicycles, fans, home appliances, cosmetic instruments, medical imaging equipment, toys, massagers, and robot vacuum cleaners.

Packaging & Delivery

Packaging: Strong carton, 250pcs/box (customizable)
Shipping Ports: Shenzhen, Guangzhou, Shanghai
Unit: Single item
Package Size: 37×27×24cm
Gross Weight: 8.0kg

Supply Capacity

100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1,000	> 5,000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $8 per piece

Certifications

Factory Overview

Product Classification

Industry Applications

Driverless technology, artificial intelligence, intelligent transportation, healthcare, smart cities, automotive supplies, security monitoring, 5G communication, and smart home applications.

Frequently Asked Questions

Q1: What's the minimum order quantity?

A1: Our minimum order quantity depends on different motor models. Please email us to check. We typically do not accept personal use motor orders.

Q2: What's your shipping method for motors?

A2: For samples and packages under 100kg, we recommend express shipping. For heavier packages, we suggest air or sea shipping, depending on customer requirements.

Q3: Can you send me your price list?

A3: With hundreds of different products and varying specifications, we cannot provide a comprehensive price list. However, we can quote within 24 hours of receiving your inquiry.

Q4: Can I visit your company?

A4: Yes, we welcome company visits. Please notify us at least two weeks in advance to schedule your visit appropriately.

Q5: How can you guarantee the quality?

A5: We perform 100% finished product inspection before delivery and do not accept returns of defective products.
