BL3023 Customizable Torque Outer Rotor Brushless DC Motor 12V High Efficiency High Power

BL3023 Customizable Torque Outer Rotor Brushless DC Motor 12V High Efficiency High Power

Brand Name:	Masing Motor
Model Number:	MS-BL3023
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO,16949

Product Name:

Outer Rotor Brushless DC Motor 12V

Shaft Type:

Flat ,D-cut ,with A Hole,round Or Customized

Motor Size:

φ30mm*L23mm

Rated Torque:

10gf.cm-2kgf.cm

Product Type:

BLDC3023 Micro Brushless DC Motor

Application:

Actuator,Home Appliance, SMART HOME

Structure:

External Driver Or Built-in Driver

Shaft Diameter:

φ6mm ,D-cut Or Customized

Rated Speed:

1000rpm-10000rpm

Direction Of Motor:

CW&CCW Available

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Product Description

Outer Rotor Brushless DC Motor 12V Title:

BL3023 Customizable Torque Outer Rotor Brushless DC Motor 12V High Efficiency High Power

Outer Rotor Brushless DC Motor 12V Description:

Voltage range:DC 6v-30V
Rated Speed:1000RPM-10000RPM or Customized
Rotating speed is constant and can be made as you required.
Rated torque :10gf.cm-2000gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Size: φ39mm*L26mm,diameter 39mm , Length 26mm DC brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW available
Shaft diameter :φ6mm,D-cut or Customized
Shaft material:Carbon steel shaft, stainless steel shaft
Shaft type :D-cut ,Round ,Flat ,M6 ,with a hole or others
Motor type :Brushless Motor or BLDC Motor
Can be match with wheel, One shaft one wheel or one motor, one wheel
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Working temperature:-40~+60°c
Structure selection:Built-in driver or external driver
Widely used in :Robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,

5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for your test.
Quality assurance: Each product must pass the quality inspection before shipping

Outer Rotor Brushless DC Motor 12V Key Attributes:

Speed(RPM)

1000RPM-10000RPM

Continuous Current(A)

10mA-500mA

Efficiency

70.0%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSBL3023

Use

Smart home, robots, office suppliers, precision instruments, automotive electronics, 5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Motor Type

Brushless Motor

Rated Torque

10gf.cm-2000gf.cm or Customized

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Product Name

12v brushless dc motor

Direction of motor

CW&CCW available

Shaft diameter

φ6mm round or Customized

Motor Diameter

φ30mm*L23mm

Weight

105g (Approx)

Noise

≤55DB

MOQ

1000Pcs

Rated Voltage

6v-30v DC

Color

Customer's Request

Motor type

Micro brushless dc motor

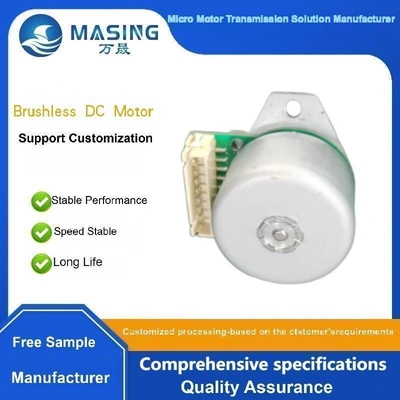

Outer Rotor Brushless DC Motor 12V Product Photo:

BL3023 Customizable Torque Outer Rotor Brushless DC Motor 12V High Efficiency High Power 0

Outer Rotor Brushless DC Motor 12V Product Spec:

BLDC 3023 Brushless DC Motor Typical Applications

Smart home, robots, office suppliers, precision instruments, automotive electronics,5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher

Voltage,rated torque,speed,curent,power and shaft size can be customized as requrement.

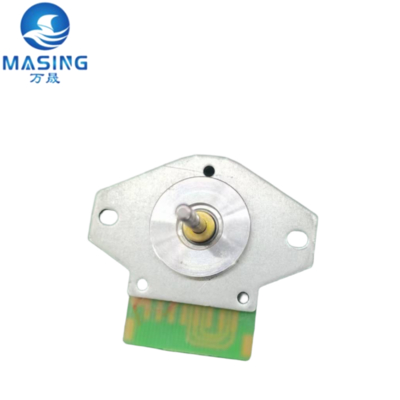

BL3023 Customizable Torque Outer Rotor Brushless DC Motor 12V High Efficiency High Power 2

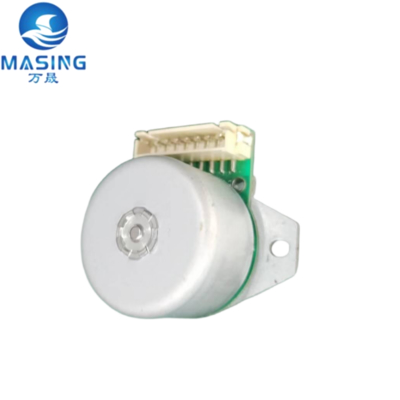

BL3023 Customizable Torque Outer Rotor Brushless DC Motor 12V High Efficiency High Power 3

Motor Data:
Motor Model	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL4026***	6~9V	7.4V	0.51	3676	2.04	2941	350	10.6	70.0	8.17	1750
BL4026***	9~14V	12V	0.82	6000	3.24	4770	565	17.2	78.2	13.2	2838

Packaging and delivery:

Packaging Details

Strong Carton 300pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

105g (Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher

FAQ

Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3:What's the delivery time?
A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4:Can you send some samples before the order?

A4: Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5: Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
