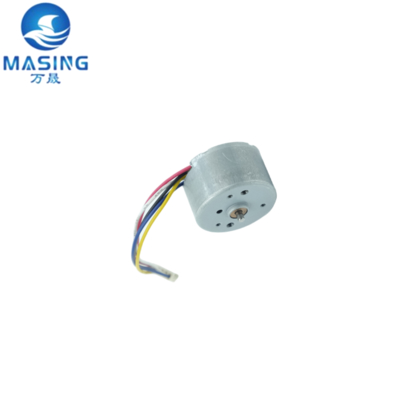

12v 24v DC Brushless Motor Micro Electric Engine 2415 With Hall Drive Board , Mini BLDC Motor for Automation Equipment

12v 24v DC Brushless Motor Micro Electric Engine 2415 With Hall Drive Board , Mini BLDC Motor for Automation Equipment

Brand Name:	Masing Motor
Model Number:	MS-BL2415
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO，16949

Key Word:

12v Micro Electric Engine 2415

Shaft Diameter:

φ2.0mm

Motor Spec:

Customization

Rated Torque:

5gf.cm-50gf.cm

Product Type:

Brushless DC Motor

Application:

Breast Pump

Direction Of Motor:

CW &CCW

Rated Speed:

2000rpm-10000rpm

Motor Size:

Dia 24.4mm*15mm

Function:

Speed Reduce

Material:

Steel,Copper

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

Automation Equipment Mini BLDC Motor

12v 24v DC Brushless Motor

Hall Drive Board Brushless Motor

Product Description

DC Brushless Motor 12v 24v Micro Electric Engine 2415 Title:

DC Brushless Motor 12v 24v Micro Electric Engine 2415 With Hall Drive Board Mini BLDC Motor for Automation Equipment

C Brushless Motor 12v 24v Micro Electric Engine 2415 Description:

Widely used in :BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Voltage range:6v-24V
Motor Speed:1000-10000RPM
Motor Size: 24.4*15mm,diamter 24.4mm 15mm Length mini motor
Suitable to small diameter, low noise and big torque application
Shaft diameter :2.0mm
Shaft type :D-cut ,Round ,With a hole
Motor default direction:CW&CCW
Motor type :Brushless motor
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
We can provide samples for your test.
Rotating speed is constant and can be made as you required.

Key Attributes:

Rated Speed(RPM)

2000rpm-10000 rpm

Continuous Current(A)

20-200mA

Efficiency

70%

Warranty

3months -1year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

Brushless Motor 2415

Use

BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment

Type

Micro brushless motor 24mm

Rated Torque

5gf.cm-100gf.cm

Construction

Permanent Magnet

Commutation

12v Micro Brushless Motor

Protect Feature

Totally Enclosed

Voltage

DC6V-24V

Application

Home Appliance Smart House Breast pump

Keywords

Breast pump motor

Motor Diameter

φ24.4mm

Weight

15g

Noise

≤55DB

MOQ

1000Pcs

Encoder

Optical Encoder

Color

Customer's Request

Drive

Built-in driver and external driver

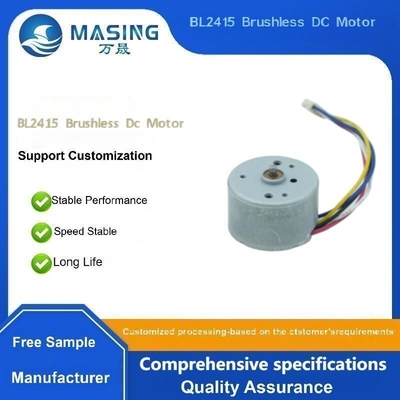

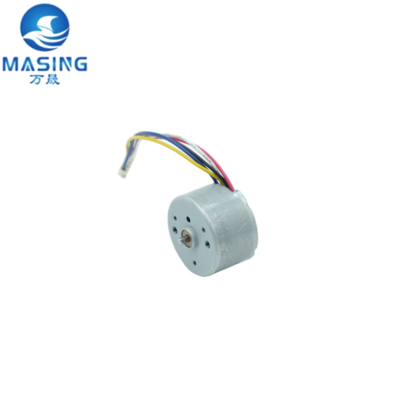

BC Brushless Motor 12v 24v Micro Electric Engine 2415 Product Photo:

12v 24v DC Brushless Motor Micro Electric Engine 2415 With Hall Drive Board , Mini BLDC Motor for Automation Equipment 0

C Brushless Motor 12v 24v Micro Electric Engine 2415 Product Spec:

BLDC 2415 Brushless Motor Typical Applications

● BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

12v 24v DC Brushless Motor Micro Electric Engine 2415 With Hall Drive Board , Mini BLDC Motor for Automation Equipment 2

12v 24v DC Brushless Motor Micro Electric Engine 2415 With Hall Drive Board , Mini BLDC Motor for Automation Equipment 3

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

8.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$8/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

12v 24v DC Brushless Motor Micro Electric Engine 2415 With Hall Drive Board , Mini BLDC Motor for Automation Equipment 9

FAQ

Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3: Do you have an individual design service for motors?
A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4:Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5: How do you make sure motor quality?
A5:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q6: What's your lead time?
A6: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
