28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Brand Name:	Masing Motor
Model Number:	MS-BL2838
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

24v Dc Brushless Motor 10000 Rpm

Shaft Type:

Flat ,D-cut Or Round Ect

Motor Size:

φ28mm*L38mm

Bearing Type:

Oil Bearing Or Ball Bearing

Motor Type:

Brushless Motor

Application:

Smart Home, Robots, Office Supplies, Power Tools, Medical Equipment, Precision Instruments, Automotive Electronics,etc.

Structure:

Built-in Drive

Direction Of Motor:

CW&CCW

Rated Voltage:

6volt -30volt

Function:

Driving Effect

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

28mm Brushless DC Motor

Vending Machine 24V Brushless DC Motor

Spin Coater 24v Dc Brushless Motor

Product Description

28mm 24V DC Brushless Motor 10000 RPM for Spin Coater, Vending Machine, Pump BL2838

Product Overview

High-performance 28mm brushless DC motor designed for precision applications with customizable voltage, speed, and torque specifications.

Rated Voltage Range: DC 6V-24V
Rated Speed: 1000rpm - 10000rpm
Motor Speed: Proportional to motor voltage
Torque Range: 10g.cm - 200g.cm
Motor Type: Brushless DC Motor
Default Direction: CW & CCW
Motor Size: φ28mm × L38mm
Shaft Options: φ2.3mm or custom specifications
Bearing Types: Oil bearing or ball bearing
Working Temperature: -40°C to +60°C
Structure Options: Built-in driver or external driver

Technical Specifications

Rated Speed

1000rpm - 10000rpm

Continuous Current

10mA - 500mA

Efficiency

IE3

Warranty

3 Months - 1 Year

Motor Diameter

φ28mm

Weight

90g

Noise Level

≤55DB

MOQ

1000 Pcs

Performance Data

Motor Model	Voltage	No Load Current (A)	No Load Speed (rpm)	Max Efficiency Current (A)	Max Efficiency Speed (rpm)	Max Efficiency Torque (g-cm)	Power (W)	Efficiency (%)	Stall Current (A)	Stall Torque (g-cm)
BL2838***	9~14V (12V)	0.04	3550	0.18	2900	50	1.5	71.5	0.8	275
BL2838***	19~26V (24V)	0.10	6400	0.31	4850	104	5.1	67.5	1.0	434

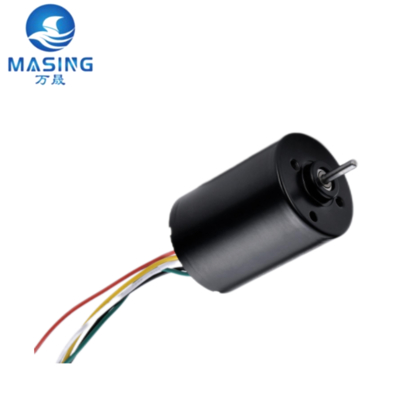

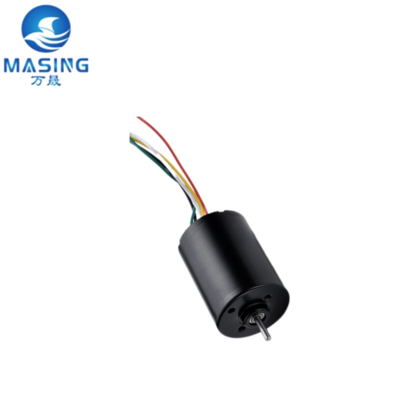

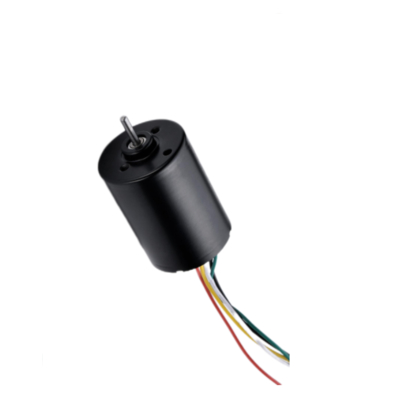

Product Images

Applications

This brushless motor is suitable for various precision applications including:

Smart home devices
Robotics and automation
Office equipment
Power tools
Medical equipment
Precision instruments
Automotive electronics
Toys and massagers
Robot vacuum cleaners
Intelligent trash cans
Personal care devices
Electric bicycles
Fans and ventilation systems
Cosmetic instruments
Medical imaging equipment

Packaging & Delivery

Packaging

Strong Carton 100pcs/box, or custom

Port

Shenzhen/Guangzhou/Shanghai

Package Size

37×27×24cm

Gross Weight

70g

Supply Ability

100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Sample Information: Maximum order quantity: 1 piece | Sample price: $15/piece

Certifications

We hold CE, ROHS, ISO9001, ISO14000, IATF16949 certifications and can assist with additional testing requirements.
