10mm FF-M20 3v 5v DC Brushed Motor Speed Control Mini Electric Small Fan Motor Intelligent Lock

Name: 10mm FF-M20 3v 5v DC Brushed Motor Speed Control Mini Electric Small Fan Motor Intelligent Lock
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-FFM20
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-FFM20
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

Permanent Magnet Electric Motor

Shaft Diameter:

φ1.0mm

Motor Spec:

High Speed

Motor Diameter:

φ10mm

Application:

Beauty Devices/toys/power Tool

Rated Speed:

5000rpm-30000rpm

Rated Voltage:

DC1.2v-12v

Brush Material:

Metal Brush

Motor Type:

Mini Brush Motor

Direction Of Motor:

CW &CCW

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Product Description

M20 Mini DC Motor Title:

0mm FF-M20 3v 5v DC Brushed Motor Speed Control Mini Electric Small Fan Motor Intelligent Lock

M20 Mini DC Motor Description:

Widely used in robot,lock. toy, gun magazine, eye brush,power tools,Model Airplanes Eyelash Curlers Electric Toothbrushes Model Airplanes Eyelash Curlers Electric Toothbrushes Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Rated Voltage range:DC1.2V-12V
Rated Speed:5000rpm-30000RPM
Motor Type Size: φ10*12.5mm,Diamter:10mm, Length;12.5mm mini brushed dc motor
Suitable to small diameter, low noise and big toque application
Shaft diameter :φ1.0mm
Shaft type :Ronud ,with hole ,with gear ect
Motor type :Brush Motor
Brush type :Metal- brush
Rated torque :1gf.cm-5gf.cm
Direction of motor :CW&CCW
Rotating speed is constant and can be made as you required.
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
We can provide samples for your test.

Key attributes:

Rated Speed(RPM)

5000rpm-30000 rpm

Continuous Current(A)

20-100mA

Efficiency

70%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-FFM20

Use

Model Airplanes Eyelash Curlers Electric Toothbrushes Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot

Type

Brush Motor

Rated Torque

1gf.cm-5gf.cm

Construction

Permanent Magnet

Commutation

Brush

Protect Feature

Totally Enclosed

Product Name

M20 mini dc motor

Application

Model Airplanes Eyelash Curlers Electric Toothbrushes Home Appliance

Keywords

M20 Metal Brush DC Motor

Motor Diameter

φ10mm

Weight

Noise

≤55DB

MOQ

5000Pcs

Rated voltage

DC1.2V-12V

Color

Customer's Request

Motor Type

M20 small dc motor

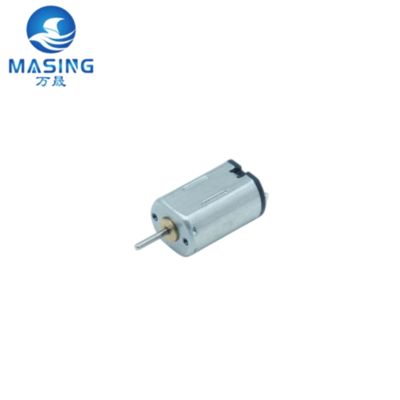

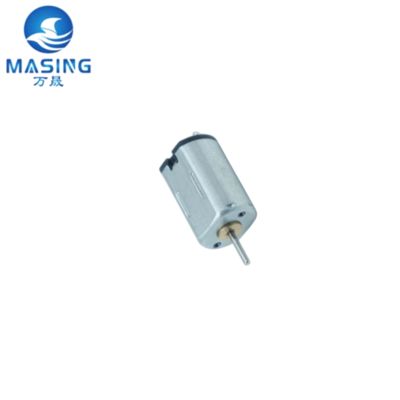

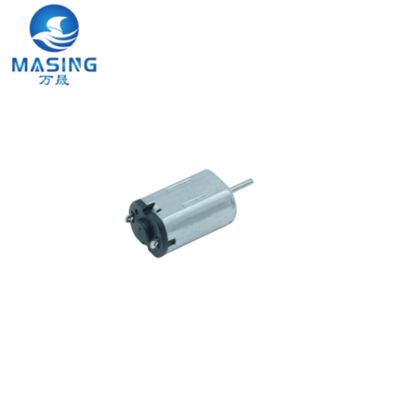

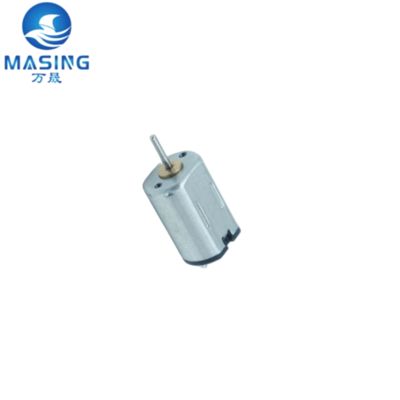

M20 Micro DC Motor Product Photo:

M20 Micro DC Motor Product Spec:

FF-M20 Micro Brush DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.,Model Airplanes Eyelash Curlers Electric Toothbrushes
●Office Equipment:Printer,Projector,Counting Machine.

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

MODEL	WLIACE	NO LOAD		AT MAXIYUV EFICIENCY						STALL
	NORMAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		Out-put	EFF	TORQUE		CURRENT
	V	r/min	A	r/rin	A	mN.m	g.cm	W	%	mN.m	g.cm	A
FF-M20PA-1552	1.5	16460	0.15	12485	0.48	0.38	3.86	0.50	46.50	1.57	16	1.50
FF-M20PA-08160	3.5	34960	0.23	27727	0.87	0.60	6.10	1.74	55.10	2.94	30	3.40
FF-M2CFA-09135	7.2	26683	0.06	20704	020	0.53	5.37	1.14	50.58	2.35	24	0.72
FF-M20WA-1551	6.0	27100	0.06	21640	024	0.41	4.22	094	56.05	2.06	21	0.95
FF-M20WA-1738	1.85	24000	0.22	18900	0.81	0.43	4.40	0.87	53.00	2.06	21	3.00

10mm FF-M20 3v 5v DC Brushed Motor Speed Control Mini Electric Small Fan Motor Intelligent Lock 3

Packaging and delivery:

Packaging Details

Strong Carton 1000pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

5.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$1.5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

FAQ

Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too

Q3:Do you have an individual design service for motors?
A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?
A4:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly

Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q6: What's your lead time?
A6: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
