RS 528 520 Small DC Brushed Motor 24V 6000RPM Brushed DC Motor High Torque

Brand Name:	Masing Motor
Model Number:	MSRF-528C
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Brushed DC Motor High Torque

Shaft Diameter:

φ2.0mm Or Customized

Brush Type:

Metal Brush/Carbon Brush

Rated Power:

0.5w-30w

Motor Diameter:

φ33mm*30mm

Rated Speed:

2000rpm-10000rpm

Voltage Range:

DC3v-24v

Direction Of Motor:

Cw & Ccw

Shaft Material:

Carbon Steel Or Stainless Steel

Certificate:

16949,Rohs,CE,ISO

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

Brushed DC Motor High Torque

6000RPM Brushed DC Motor

Small DC Brushed Motor

Product Description

RS 528 520 Small DC Brushed Motor 24V 6000RPM

Product Overview

High torque brushed DC motor designed for heater air purifiers, garden tools, sewing machines, and various industrial applications. Compact size with reliable performance and customizable specifications.

Key Specifications

Voltage Range: DC 3V-24V

Rated Speed: 2000-10000 RPM

Motor Size: φ33×30mm

Shaft Diameter: 2.0mm (customizable)

Weight: 80g

Noise Level: ≤55 DB

Working Temperature: -40°C to +60°C

Efficiency: 70%

Technical Features

Constant rotating speed with customization available
Suitable for small diameter, low noise, and high torque applications
Motor direction: CW & CCW available
Shaft material: Stainless steel and carbon steel (customizable)
Shaft types: Round, D-Cut, Flat, Knurled, etc.
Brush type: Metal brush or carbon brush
Construction: Permanent Magnet
Protection: Totally Enclosed
Compatible with various accessories: Wires, connectors, gearbox, encoder, brake, cooling fan

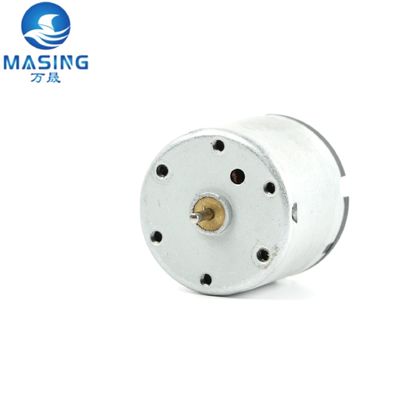

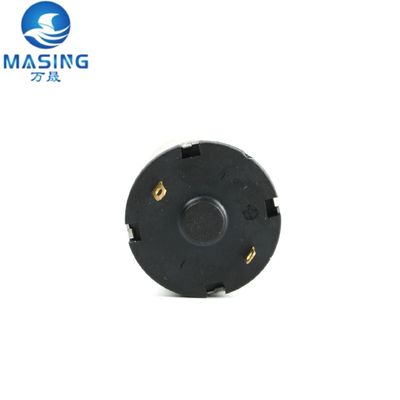

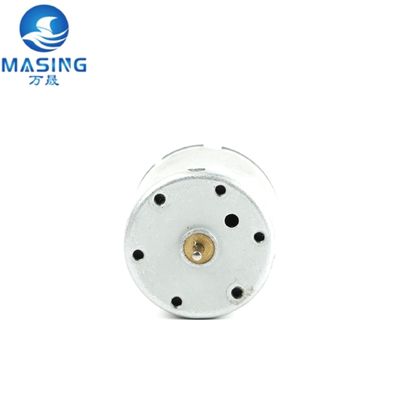

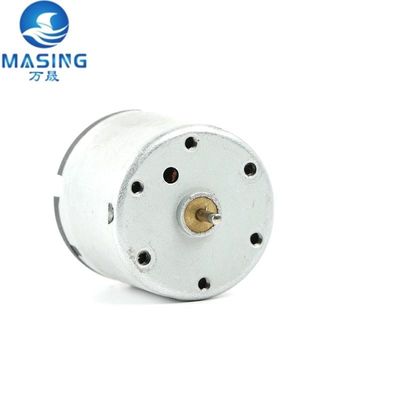

Product Images

Performance Data

Motor Model	Rated Voltage (V)	No-Load Speed (rpm)	No-Load Current (mA)	On-Load Speed (rpm)	On-Load Current (mA)	Output (w)	Torque (gcm)
MS-528-15380	12	4600	30	3800	155	1.24	39
MS-528-11645	24	5250	22	4600	100	1.5	45

Note: Voltage, rated torque, speed, current, power, and shaft size can be customized according to requirements.

Applications

Heater Air Purifiers
Garden Tools
Sewing Machines
Water Pumps & Air Pumps
ATM Machines
Automatic Vending Machines
Soap Dispensers
Vacuum Cleaners
Intelligent Robots
Coffee Makers
Medical Devices
Smart Home Appliances

Ordering & Delivery

Packaging: Strong Carton (200pcs/box) or custom

Shipping Ports: Shenzhen/Guangzhou/Shanghai

Package Size: 37×27×24cm

Gross Weight: 85g

MOQ: 5000 Pieces

Supply Ability: 100,000 Pieces/Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece

Sample Price: $2/piece

Certifications & Quality

ISO 16949
RoHS
CE
ISO Quality Systems

100% of goods pass quality inspection before delivery.

Frequently Asked Questions

Q1: What is the advantage about your company?

A1: Advanced manufacturing equipment, over 15 years of motor design and manufacturing experience, flexible customization for OEM/ODM orders, advanced automated production equipment, and comprehensive system certifications including ISO9001, ISO14001, TS16949, CE, and RoHS.

Q2: Can I have samples for testing first?

A2: Yes, after confirming the required motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.

Q3: Can the logo and color be customized?

A3: Yes, we welcome custom samples including logo and color customization.

Q4: Can you provide OEM or ODM service?

A4: Yes, both OEM and ODM services are welcomed.

Q5: What is your guarantee for the products?

A5: We provide technical support and spare parts for repairs if any quality problems occur, and we will follow up until you are satisfied.

Q6: Can I visit your company?

A6: Yes, you are welcome to visit our company. Please inform us at least two weeks in advance to schedule your visit.
