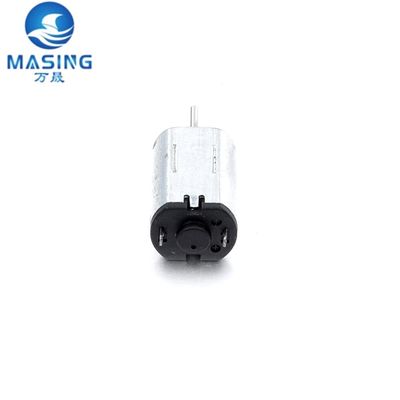

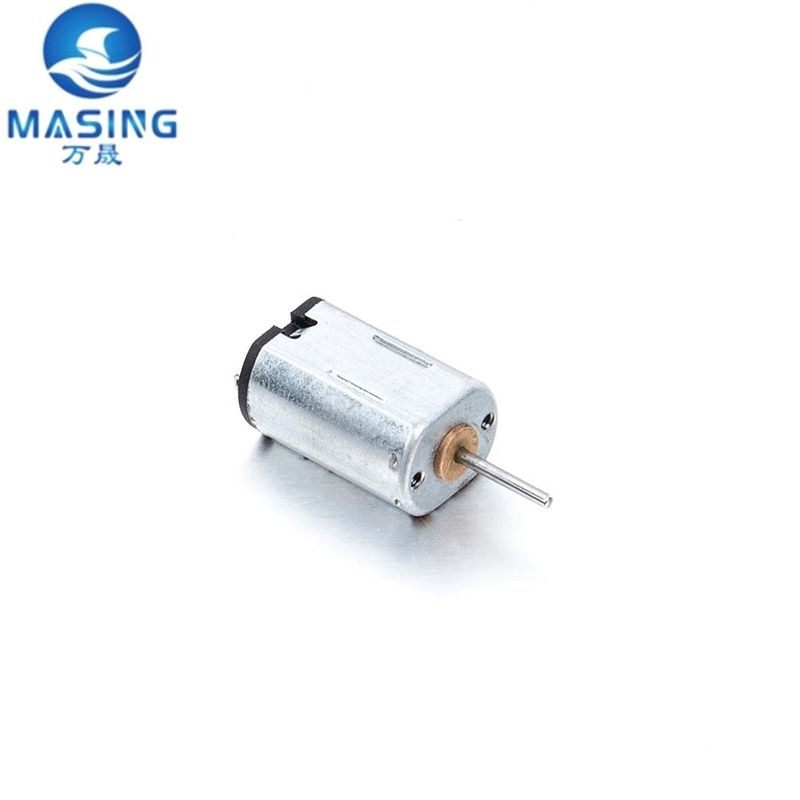

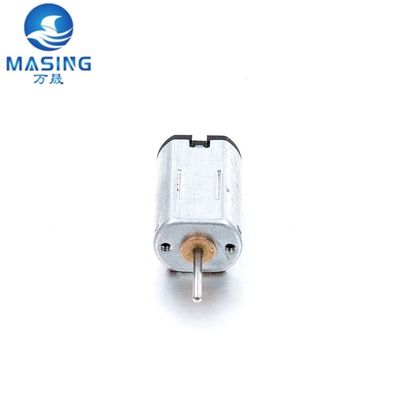

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

ROHS CE Certified Customized Small DC Motor with voltage range of DC 1.5V-12V and rated speed from 5000-30000 RPM. Compact size of φ12mm × 20mm, ideal for small diameter applications requiring low noise and high torque.

• Voltage Range: DC 1.5V-12V
• Rated Speed: 5000-30000 RPM (Customizable)
• Motor Size: φ12mm × 20mm
• Shaft Diameter: φ1mm (Customizable)
• Shaft Types: Round, D-cut, Flat, with hole, with knurl
• Shaft Materials: Stainless steel or carbon steel
• Brush Type: Metal brush/Carbon brush
• Motor Direction: CW & CCW available
• Working Temperature: -40°C to +60°C
• Weight: 5g
• Noise Level: ≤55 DB
• Motor Lifetime: 500-1000 hours

Note: Voltage, rated torque, speed, current, power and shaft size can be customized as required.

• Medical Equipment: Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
• Business Machines: Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
• Electric Powered Equipment: Electric toothbrush, Electric tool, Electric toy car, Electric curtain
• Smart Home: Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun
• Food and Beverage: Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors
• Robotics: Servicing robotics, Food delivery robot, Medical serving robot, AGV & AMR, Inspection robot
• Additional Uses: Toys, Locks, Beauty instruments, Home appliances

• Packaging: Strong Carton 1000pcs/box, or customized
• Ports: Shenzhen/Guangzhou/Shanghai
• Package Size: 37×27×24cm
• Gross Weight: 5.0kg
• Supply Ability: 100,000 pieces per month

• Maximum Sample Quantity: 1 piece
• Sample Price: $1.5/piece
• Certifications: ROHS, CE Certified
