High Torque DC Motors 12V Low Speed RF-370CH Small Brushed DC Motor

High Torque DC Motors 12V Low Speed RF-370CH Small Brushed DC Motor

Brand Name:	Masing Motor
Model Number:	MSRF-370C
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RohS

Product Name:

Rf-370 Small Brushed Dc Motor

Shaft Tpye:

Round ,Flat,D-cut,with A Hole Ect

Protect Feature:

Totally Enclosed

Shaft Material:

Carbon Steel Or Stainless Steel

Application:

Water Pump/Househols Appliances / Hair Dryer / Massager

Voltage:

DC1.5V-24V

Certificate:

15949,CE,ROHS,ISO

Motor Size:

φ24mm*L 30.8mm

Brush Model:

Metal Brush Or Carton Brush

Direction Of Motor:

CW &CCW Available

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

High Torque DC Motors 12V

12V Low Speed DC Motor

Small Brushed DC Motor

Product Description

High Torque DC Motors 12V Low Speed RF-370CH Small Brushed DC Motor

High Torque 12V Low Speed RF-370CH Small Brushed DC Motor designed for automotive air conditioning fan regulators and various industrial applications.

Product Features

Wide voltage range: DC 1.5V-24V
Rated speed: 1500rpm-20000RPM (customizable)
Compact size: 24.2×30.8mm (φ24mm diameter, 30.8mm length)
Shaft diameter: φ2.0mm (customizable)
Shaft materials: Stainless steel and carbon steel options
Motor direction: CW & CCW available
Working temperature: -40°C to +60°C
Low noise operation: ≤55DB
Motor lifetime: 500-1000 hours
Weight: 55g

Applications

Water pumps, household appliances, hair dryers, massagers, automotive air conditioning fan regulators, air pumps, cosmetic instruments, smart home devices, robots, office equipment, printers, projectors, counting machines, and shredders.

Technical Specifications

Parameter	Specification
Speed (RPM)	Customized
Continuous Current (A)	10mA-500mA
Efficiency	90%-56%
Torque	5g.cm-200g.cm
Brush Type	Metal Brush or Carton Brush
Protection Feature	Totally Enclosed
Motor Diameter	φ24.4mm
Certifications	16949, CE, Rohs, ISO, EU
MOQ	5000 Pcs
Place of Origin	Guangdong, China

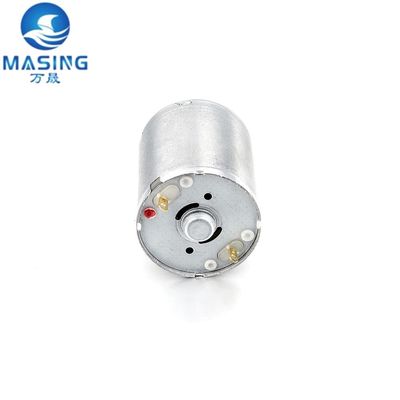

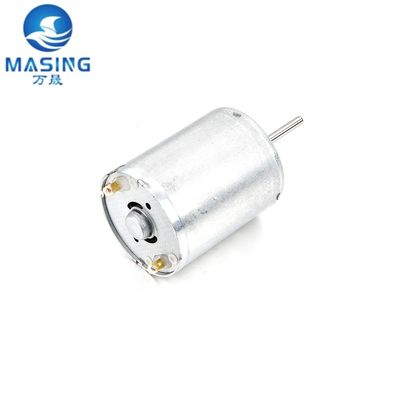

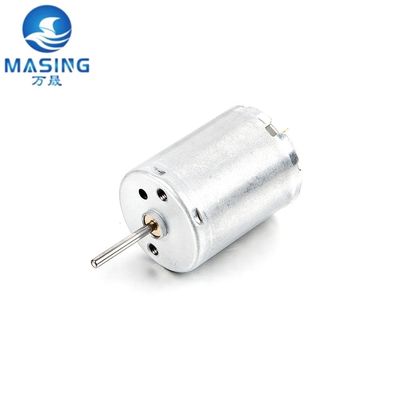

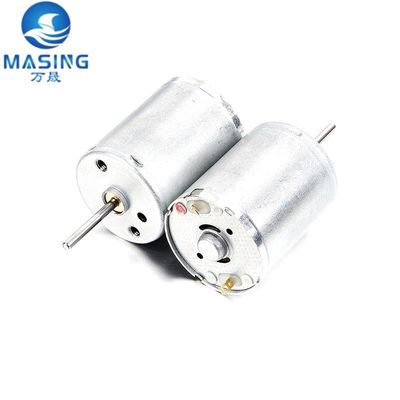

Product Images

Detailed Technical Data

MODEL	VOLTAGE(V)	NO-LOAD SPEED (r/min)	NO-LOAD CURRENT (A)	MAX EFFICIENCY SPEED (r/min)	MAX EFFICIENCY CURRENT (A)	MAX EFFICIENCY TORQUE (mNm)	MAX EFFICIENCY OUTPUT (w)	STALL TORQUE (mNm)	STALL CURRENT (A)
JFF-3700H350014	3-12	5600	0.02	4300	0.17	4.0	0.22	18.4	0.92
JRK3700+400013	3-12	5000	0.01	3800	0.15	4.0	0.16	17.8	0.76
JRF3700H435013	6-24	4500	0.02	3600	0.13	4.0	0.25	24.4	0.77

Packaging & Delivery

Packaging: Strong Carton 250pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package size: 37×27×24cm
Gross weight: 11.5kg

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $1.5/piece

Certifications

Factory & Applications

Frequently Asked Questions

Q1: How about Sample order?

A1: Sample is available for you. Please contact us for details.

Q2: How can I know the product is suitable for me?

A2: You provide us the detailed information about your requirements. We will recommend the appropriate item according to your parameters and provide samples for testing.

Q3: How to order?

A3: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q4: How do we ensure quality?

A4: Always produce samples for inspection before mass production; conduct final inspection before shipment.

Q5: How to confirm the payment?

A5: We accept payment by T/T, PayPal, and other payment methods. 30-50% deposit is available, with balance payment before shipping.

Customization Available: Voltage, rated torque, speed, current, power, and shaft size can be customized according to your requirements.
