12V 14.4V 18V 24V DC Motor Rs 555 Dc Motor High RPM High Torque Brushed Motor

Name: 12V 14.4V 18V 24V DC Motor Rs 555 Dc Motor High RPM High Torque Brushed Motor
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-RS550/555
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-RS550/555
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO,16949

Product Name:

High Torque Brushed Motor

Shaft Type:

Round ,Flat,D-cut,Knurled Shaft

Output Power:

1W~100W

Shaft Material:

Carbon Steel Or Stainless Steel

Application:

Water Pump/Househols Appliances / Hair Dryer / Massager

Voltage:

DC6.0V-30V

Certificates:

16949,CE,ROHS,ISO

Motor Size:

φ36mm*L57mm

Brush Model:

Carton Brush

Direction Of Motor:

CW &CCW Available

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

High Torque Brushed Motor Title:

Diameter 36mm RS-555 6v12V 24V High Speed and Power Small Electric Motor DC For Massagers and Pump

High Torque Brushed Motor Description:

Working temperature:-40~+60°c
Rated Voltage range:DC 6.0V-30V
Rated Speed:3000rpm-30000RPM
Rotating speed is constant and can be made as you required,The motor speed is proportional to the motor voltage.
Motor Size: φ36mm*57mm,φ36mm,diameter 57mm length permanent magnet electric motor
Output power:approx 1W~100W
Certification:CE,ROHS ISO9001:2000,16949
Motor default direction:CW&CCW available
Shaft diameter :φ3.175mm or customized
Shaft material :Stainless steel and carbon steel
Shaft type :D-cut ,round ,Flat,with a hole ,Shaft knurling or customized
Brush type :Carbon-brush motors
The motor weight:150g(Approx)
Can be match with wheel, One shaft one wheel or one motor, one wheel
Accessories:Gears, gear box, wires, encoder ect
Widely used in: Water Pump/Househols Appliances / Hair Dryer / Massager/Automotive Air Conditioning Fan Regulator Air Pump,Water Pump, Home Appliance, Cosmetic Instrument, SMART HOME, Power Tool Water Pump and Cleaning Robot,Massager
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for your test.
Every product must be shipped 100% after quality inspection

Key attributes:

Rated Speed(RPM)

3000rpm-30000RPM

Continuous Current(A)

10mA-500mA

Rated Voltage

DC6V-30V

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-RS550/555

Use

massager/vibrator air compressor Power Tool ,Cleaning RobotWater Pump/Househols Appliances / Hair Dryer / Massager/Automotive Air Conditioning Fan Regulator

Type

permanent magnet electric motor

Torque

10g.cm-1000g.cm

Direction of motor

CW & CCW available

Brush type

Carton Brush

Protect Feature

Totally Enclosed

Shaft diameter

φ3.175mm or others

Rated Voltage

DC6.0V-30V

Keywords

24v high power dc motor

Motor Diameter

φ36mm

Weight

150g(Approx)

Noise

≤55DB

MOQ

5000Pcs

Certificates

16949 ,CE ,Rohs ,ISO ,EU

Shaft materials

Stainless steel shaft and carbon steel shaft

Motor Life time

500H-5000H

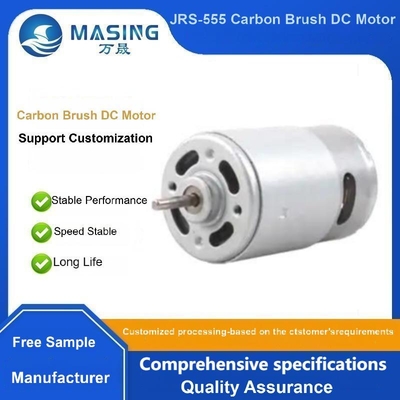

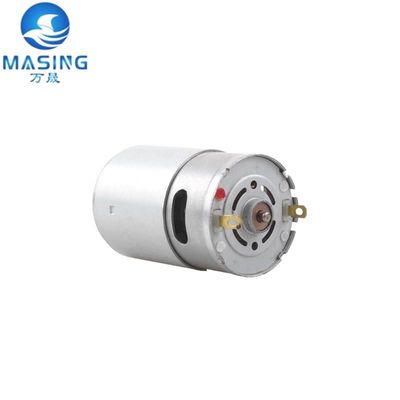

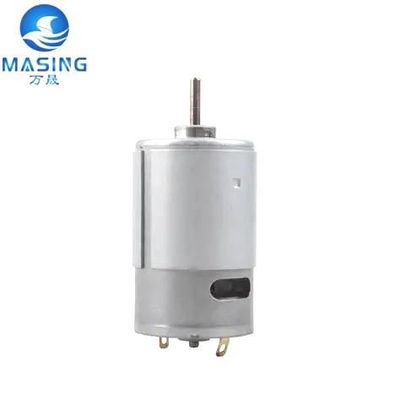

High Torque Brushed Motor Product Photo:

12V 14.4V 18V 24V DC Motor Rs 555 Dc Motor High RPM High Torque Brushed Motor 0

High Torque Brushed Motor Product Spec:

12V 24V High Speed and Power Small Electric Motor Typical Applications
Air freshener,smartvacuumcleaner,soap disbperser,Hair dyer,Eectichar clipper,massager, instument
Office Equipment,Printer,Projector,Counting Machine,Shredder.Power Tool ,Cleaning Robot

Water Pump/Househols Appliances / Hair Dryer / Massager/Automotive Air Conditioning Fan Regulator

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

12V 14.4V 18V 24V DC Motor Rs 555 Dc Motor High RPM High Torque Brushed Motor 2

MODEL	VOLTAGE NO LOAD				AT MAXIMUM EFFICIENCY			STALL
	OPERATING	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	RANGE	V	rpm	A	rpm	A	g.cm		g.cm	A
RS-550PH-6532	6.0~14.4	12.0	16000	0.90	14300	7.80	480	70.4	4510	65.8
RS-550PH-5740	12.0~19.6	18.0	19000	0.85	16800	7.05	550	94.8	4750	54.3
RS-555PH-23110	6.0~26.0	24.0	4200	0.12	3600	0.62	300	12.9	2400	4.1
RS-555PH-2983	6.0~26.0	24.0	6600	0.16	5800	1.15	370	22.3	3500	8.0

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

80g(Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$1.5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Air Pump ,Water Pump ,Automobile air conditioning actuator,Massager ,Driverless,Artificial intelligence,Intelligent

transportation,Health care,Smart city,Automotive supplies,Security monitoring,5G communication,Smart home

12V 14.4V 18V 24V DC Motor Rs 555 Dc Motor High RPM High Torque Brushed Motor 8

FAQ

Q1:What're your main products?

A1: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q2:How to select a suitable motor?

A2:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q3: Do you have a customized service for your standard motors?
A3: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q4: Do you have an individual design service for motors?
A4:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
