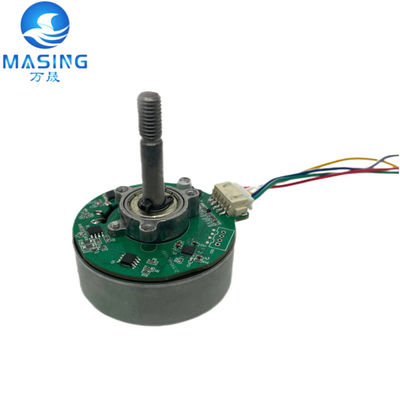

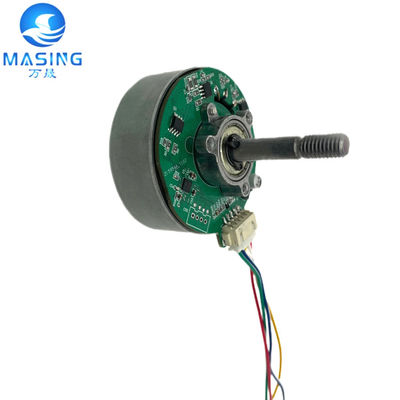

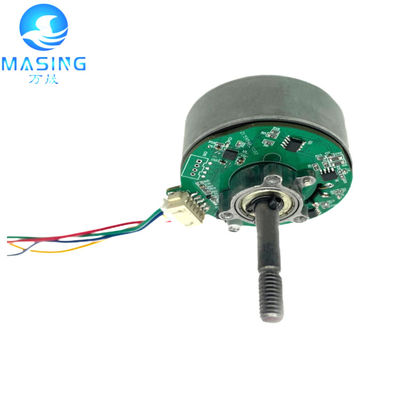

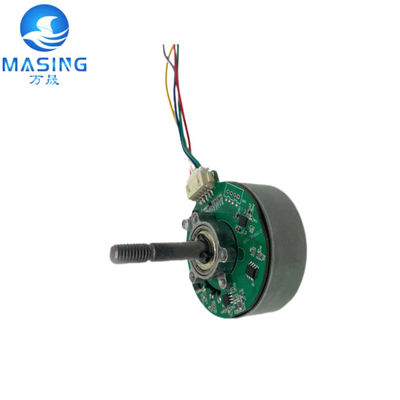

BLDC6032 24 Volt Brushless DC Motor High Power 3000rpm M8 Shaft For Fan Motor

BLDC6032 24 Volt Brushless DC Motor High Power 3000rpm M8 Shaft For Fan Motor

Brand Name:	Masing Motor
Model Number:	MSBL6032
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO,16949

Product Name:

36v Dc Brushless Motor

Shaft Type:

Round ,Flat ,D-cut M2 Or Customized

Motor Size:

φ36mm*L26mm

Rated Torque:

5g.cm-300g.cm

Product Type:

BLDC3626 Brushless DC Motor

Application:

Electric Curtain, 5G Base Station,Robot Vacuum Cleaner,Car Flip Screen

Structure:

Built-in Driver Or External Driver

Shaft Diameter:

φ3.175mm Or Customized

Rated Speed:

1000rpm-15000rpm

Direction Of Motor:

CW&CCW Available

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

24 Volt Brushless DC Motor

Brushless DC Motor High Power

3000 Rpm Brushless Dc Motor

Product Description

BLDC6032 24 Volt Brushless DC Motor High Power 3000rpm M8 Shaft For Fan Motor

Product Overview

PWM Control CW&CCW BLDC6032 24 Volt Brushless DC Motor with high power output, 24V operation, 3000rpm speed, and M8 shaft designed specifically for fan motor applications.

Voltage range: DC 9V-26V
Rated Speed: 1000RPM-15000RPM (Adjustable speed motor)
Rated torque: 10gf.cm-300gf.cm
Motor Size: φ36mm × L26mm
Direction: CW & CCW available
Shaft diameter: φ3.175mm or customized
Working temperature: -40°C to +60°C
Structure selection: Built-in driver or external driver

Technical Specifications

Speed (RPM)	1000rpm-15000rpm
Continuous Current	10mA-500mA
Efficiency	55%-80%
Warranty	3 months - 1 year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MSBL3626
Motor Type	Brushless Motor
Rated Torque	10gf.cm-300gf.cm or Customized
Construction	Permanent Magnet
Weight	65g (Approx)
Noise	≤55DB
MOQ	1000Pcs

Performance Data

Motor Model	Voltage	No Load Current	No Load Speed	Max Efficiency Current	Max Efficiency Speed	Max Efficiency Torque	Power	Efficiency	Stall Current	Stall Torque
BL3636***	9~14V	0.17A	4000rpm	0.48A	2952rpm	143.4g-cm	4.3W	75.7%	1.35A	547g-cm
BL3636***	19~26V	0.04A	1915rpm	0.11A	1407rpm	121.3g-cm	1.8W	65.8%	0.31A	458g-cm

Applications

5G Base Station, Electric Curtain, Power Tools, Home Application, Personal Care, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Medical Imaging Equipment, Toys, Massager, Robot Vacuum Cleaner, Driverless Systems, Artificial Intelligence, Intelligent Transportation, Health Care, Smart City, Automotive Supplies, Security Monitoring, 5G Communication, Smart Home.

Packaging & Delivery

Packaging: Strong Carton 200pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package size: 37×27×24cm
Weight: 65g (Approx)

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $15/piece

Frequently Asked Questions

Q1: What're your main products?

A1: We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q2: How to select a suitable motor?

A2: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q3: Do you have a customized service for your standard motors?

A3: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q4: Do you have an individual design service for motors?

A4: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q5: How to confirm the payment?

A5: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Quality Assurance

Each product must pass the quality inspection before shipping. Please refer to the rated voltage used by our motor, the voltage exceeding the range of use of our voltage may cause the machine to burn.
