Electric Three Phase Brushless DC Motor Permanent Magnet BLDC5528 20W External Rotor

Brand Name:	Masing Motor
Model Number:	MSBL5528
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO,16949

Direction Of Motor:

CW&CCW Available

Product Name:

Motor Brushless Dc BLDC5528

Shaft Type:

M6,Flat ,D-cut ,with A Hole,round Or Customized

Motor Size:

φ55mm*L28mm

Rated Torque:

50gf.cm-2kgf.cm

Product Type:

BLDC5528 Brushless DC Motor

Application:

FAN, Home Appliance, SMART HOME,Water Purifier Equipment

Structure:

External Driver Or Built-in Driver Or

Shaft Diameter:

φ6mm ,D-cut Or Customized

Rated Voltage:

DC 9V-26V

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

Electric Brushless DC Motor

Three Phase Brushless DC Motor

Brushless DC Motor Permanent Magnet

Product Description

Electric Three Phase Brushless DC Motor Permanent Magnet BLDC5528 20W External Rotor

Product Overview

The BLDC5528 is a high-performance 20W external rotor brushless DC motor designed for applications requiring small diameter, low noise, and high torque. This three-phase permanent magnet motor offers customizable specifications to meet diverse industrial needs.

Technical Specifications

Voltage Range: DC 9V-26V
Rated Speed: 1000RPM-10000RPM (Customizable)
Rated Torque: 50gf.cm-2kgf.cm
Motor Size: φ55mm × 28mm
Shaft Diameter: φ6mm (D-cut or Customized)
Shaft Material: Carbon steel or stainless steel
Weight: 220g (Approx)
Noise Level: ≤55dB
Working Temperature: -40°C to +60°C
Efficiency: Up to 83.2%
Rotation Direction: CW & CCW available
Structure: Built-in driver or external driver options

Performance Data

Motor Model	Voltage Range	Rated Voltage	No Load Current (A)	No Load Speed (rpm)	Max Efficiency Current (A)	Max Efficiency Speed (rpm)	Max Efficiency Torque (g-cm)	Max Efficiency Power (W)	Efficiency (%)	Stall Current (A)	Stall Torque (g-cm)
BL5528***	9-14V	12V	0.297	3110	1.98	2710	710	19.76	83.2	13.2	5440
BL5528***	19-26V	24V	0.078	3215	1.09	3000	660	20.72	79.2	15.2	9870

Applications

Robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, 5G Base Station, Electric Curtain, Power Tools, Home Application, Personal Care, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment, Toys, Massager, Robot Vacuum Cleaner, sweeping robot, electric wheelchair, paper shredder, lawn mower, range hood, dishwasher.

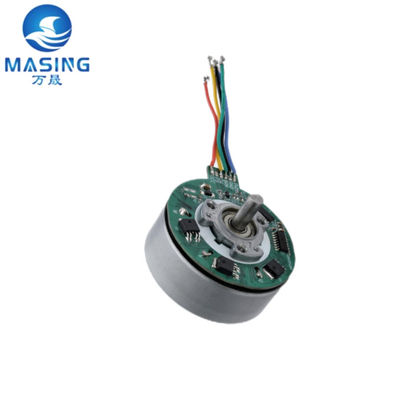

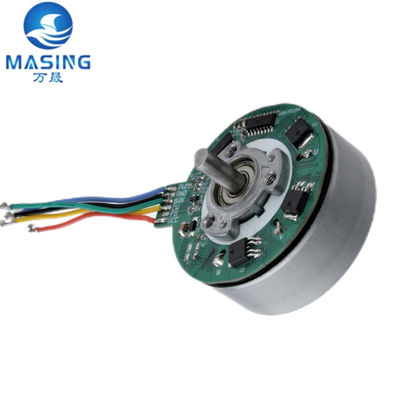

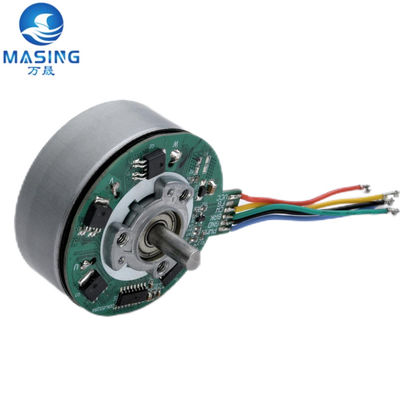

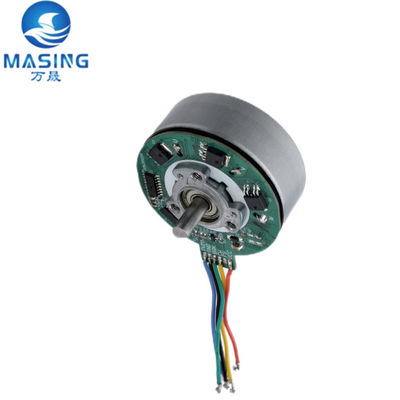

Product Images

Ordering Information

Minimum Order Quantity: 1000 pieces
Supply Ability: 100,000 pieces per month
Sample Price: $15/piece
Maximum Sample Quantity: 1 piece

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Packaging & Delivery

Packaging: Strong Carton (300pcs/box) or customized
Single Package Size: 37×27×24cm
Single Gross Weight: 220g (Approx)
Shipping Ports: Shenzhen/Guangzhou/Shanghai

Quality Assurance

Each product undergoes rigorous quality inspection before shipping to ensure optimal performance and reliability.

Frequently Asked Questions

Q1: How can I get the price?

A1: We typically provide quotes within 24 hours after receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly via email or other communication channels.

Q2: Could you provide customized service?

A2: Yes, we offer comprehensive customization services. All parameters can be tailored to your specific requirements. Please contact us for detailed information.

Q3: Can I buy samples before placing orders?

A3: Yes, sample orders are available. Please contact us for sample purchasing details.

Q4: What is your lead time?

A4: Lead time depends on order quantity and seasonal factors. Typically, we can ship within 7-15 days for small quantities and approximately 30 days for large quantities.

Q5: What is the shipping method?

A5: We ship via sea, air, or express carriers (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm shipping methods with us before placing orders.
