12v 6000rpm Brushless DC Outrunner Motor 3 Phase High Torque 24V DC Brushless Motor

12v 6000rpm Brushless DC Outrunner Motor 3 Phase High Torque 24V DC Brushless Motor

Brand Name:	Masing Motor
Model Number:	MSBL3926
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO,16949

Product Name:

24 Volt Brushless Dc Motor

Shaft Type:

Flat ,D-cut ,with A Hole,round Or Customized

Motor Size:

φ39mm*L26mm

Rated Torque:

10gf.cm-1kgf.cm

Product Type:

BLDC3926 Brushless DC Motor

Application:

FAN, Home Appliance, SMART HOME

Structure:

External Driver Or Built-in Driver Or

Shaft Diameter:

φ6mm ,D-cut Or Customized

Rated Speed:

1000rpm-10000rpm

Direction Of Motor:

CW&CCW Available

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

12v Brushless DC Outrunner Motor

6000rpm Brushless DC Outrunner Motor

24V DC Brushless Motor

Product Description

12V 6000RPM Brushless DC Outrunner Motor 3 Phase High Torque 24V DC Brushless Motor

Product Overview

This high-performance brushless DC outrunner motor operates at 12V with 6000RPM speed, featuring 3-phase design for high torque applications. Suitable for massager guns and various industrial applications.

Voltage range: DC 6V-30V
Rated Speed: 1000RPM-10000RPM or customized
Rated torque: 10gf.cm-700gf.cm
Motor Size: φ39mm × L26mm
Direction: CW & CCW available
Shaft diameter: φ6mm, D-cut or customized
Working temperature: -40°C to +60°C
Structure: Built-in driver or external driver

Technical Specifications

Speed (RPM): 3600RPM
Continuous Current: 10mA-500mA
Efficiency: 70.0%
Motor Type: Brushless Motor
Model Number: MSBL3926
Weight: 105g (Approx)
Noise: ≤55DB
Rated Voltage: 6V-28V
Warranty: 3 Months - 1 year
Place of Origin: Guangdong, China
Brand Name: Masing Motor

Performance Data

Motor Model	Voltage	No Load Current	No Load Speed	At Maximum Efficiency Current	At Maximum Efficiency Speed	Torque	Power	Efficiency	Stall Current	Stall Torque
BL4026***	6-9V	0.51A	3676rpm	2.04A	2941rpm	350g-cm	10.6W	70.0%	8.17A	1750g-cm
BL4026***	9-14V	0.82A	6000rpm	3.24A	4770rpm	565g-cm	17.2W	78.2%	13.2A	2838g-cm

Applications

Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, 5G Base Station, Electric Curtain, Home Application, Personal Care, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment, Toys, Massager, Robot Vacuum Cleaner, sweeping robot, electric wheelchair, paper shredder, lawn mower, range hood, dishwasher.

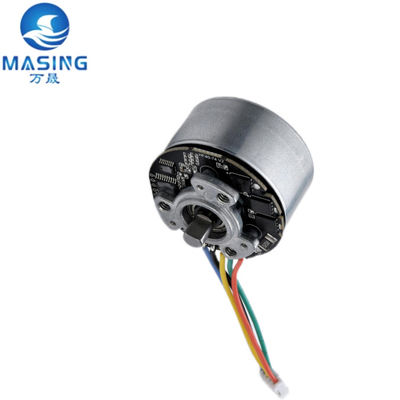

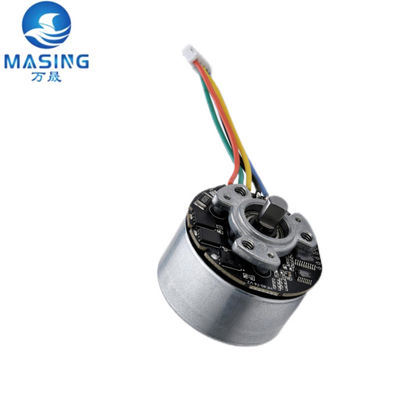

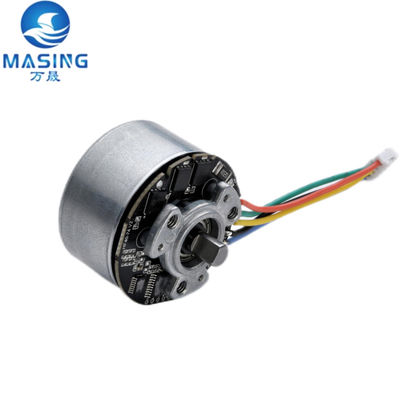

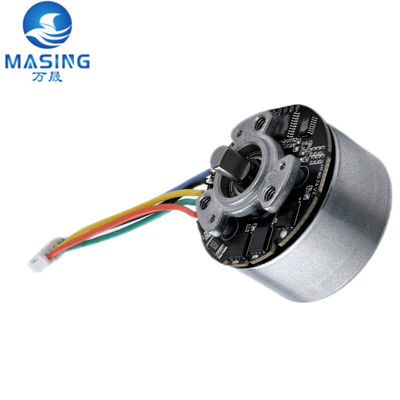

Product Images

Packaging & Delivery

Packaging: Strong Carton 300pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 105g (Approx)
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum sample order quantity: 1 piece

Sample price: $15/piece

Frequently Asked Questions

Q1: How to choose a motor to match my machine?

A1: Please provide key parameters such as physical size (diameter, length, etc), torque, voltage, and power consumption. Our team is available to assist with motor selection.

Q2: Could you provide customized service?

A2: Yes, all parameters can be customized according to your specific requirements. Please contact us for detailed information.

Q3: Can I order samples first?

A3: We stock many standard models and can provide samples for testing. For specialized motors, please contact us with your requirements.

Q4: How long is your delivery time?

A4: Delivery time depends on order quantity, typically 7-15 working days. Regular products ship within 3 working days, customized samples within 7-10 working days.

Q5: What is your quality assurance process?

A5: We have professional testing instruments and QC team, performing full inspection for each mass production batch to ensure quality standards.
