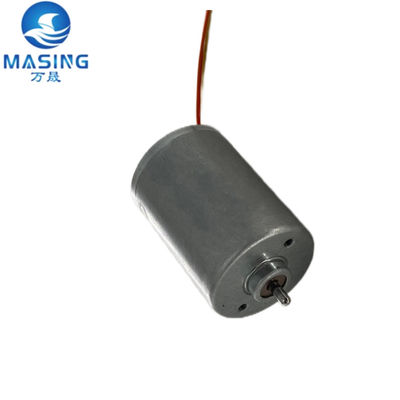

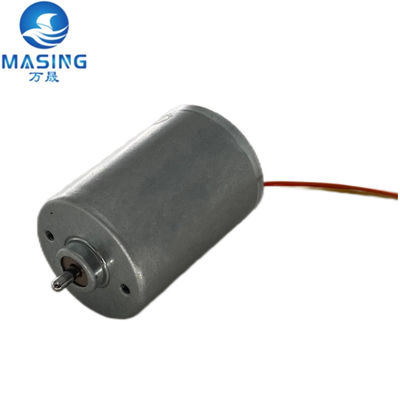

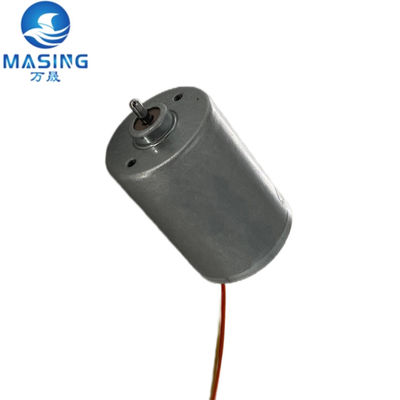

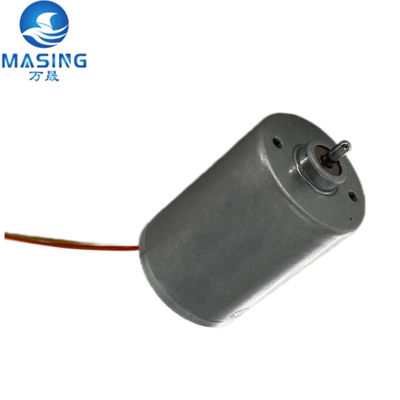

High Power BLDC Brushless Motor 24V 12V 5000rpm PWM Speed Control Motor With Driver

Brand Name:	Masing Motor
Model Number:	MSBL3657
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

12v High Power Brushless Dc Motor

Shaft Type:

M3 ,Round,Flat ,D-cut Or Others

Motor Size:

φ36mm*L57mm

Bearing Type:

Oil Bearing Or Ball Bearing

Motor Type:

Brushless Motor &BLDC Motor

Application:

Smart Home, Robots, Office Supplies, Power Tools, Medical Equipment, Precision Instruments, Automotive Electronics,

Structure:

Built-in Drive Or External Drive

Direction Of Motor:

CW&CCW Available

Voltage:

12volt - 26volt

Shaft Diameter:

φ6mm,round

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

High Power BLDC Brushless Motor

BLDC Brushless Motor 24V

5000rpm PWM Speed Control Motor

Product Description

High Power BLDC Brushless Motor 24V 12V 5000rpm PWM Speed Control Motor With Driver

Product Overview

High Power BLDC 3657 Brushless Motor with Driver featuring 24V/12V operation, 5000rpm speed, and PWM speed control with CW/CCW direction capability.

Technical Specifications

Rated Voltage: 12V-26V
Rated Speed: 1000rpm - 10000rpm
Rated Torque: 10g.cm - 500g.cm
Motor Type: Brushless DC Motor (BLDC)
Direction: CW & CCW available
Motor Size: φ36mm × 57mm (Diameter 36mm × Length 57mm)
Motor Shaft: φ3.175mm (round or customized)
Shaft Type: M3, Round, Flat, D-cut, Threaded shaft, etc.
Bearing Type: Oil bearing or ball bearing
Working Temperature: -40°C to +60°C
Structure Selection: Built-in driver or external driver
Weight: 190g (Approx)
Noise: ≤55DB

Key Attributes

Speed (RPM): 1000rpm - 10000rpm
Continuous Current: 10mA - 500mA
Efficiency: 55.1% - 90%
Warranty: 3 Months - 1 Year
Place of Origin: Guangdong, China
Brand Name: Masing Motor
Model Number: MSBL3657
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Totally Enclosed
Feature: High Efficiency
MOQ: 1000 Pcs

Product Images

Performance Data

Motor Model	Voltage	No Load Current (A)	No Load Speed (rpm)	Max Efficiency Current (A)	Max Efficiency Speed (rpm)	Max Efficiency Torque (g-cm)	Power (W)	Efficiency (%)	Stall Current (A)	Stall Torque (g-cm)
BL3657***	9~14V	0.10	3000	0.87	2690	27.4	5.7	55.1	7.51	2000
BL3657***	19~26V	0.20	5600	1.12	4750	484.5	23.6	88.0	6.26	3196

Applications

Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, Toys, Massager, Robot Vacuum Cleaner, Car flip screen, Intelligent Trash Can, Power Tools, Home Application, Personal Care, Car, Electric Bicycle, FAN, Cosmetic instrument, SMART HOME, Medical Imaging Equipment, Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication.

Packaging & Delivery

Packaging: Strong Carton 100pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 190g (Approx)
Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Quality

Maximum Sample Quantity: 1 piece
Sample Price: $15/piece
Quality Assurance: Each product passes quality inspection before shipping

Factory & Product Range

Frequently Asked Questions

Q1: Can I have samples for testing first?

A1: Yes, definitely you can. After confirming the needed motor specifications, we will provide a quotation and proforma invoice for samples. Once payment is received, we will proceed with sample production.

Q2: How to order?

A2: Send inquiry → Receive quotation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Cargo ready → Balance payment/delivery → Further cooperation

Q3: How do you ensure motor quality?

A3: We have comprehensive inspection procedures: incoming materials inspection against signed samples and drawings, production process tour inspection, and final inspection before shipping to ensure qualified products.

Q4: What's your lead time?

A4: Standard products typically require 25-30 days, while customized products may take longer. Lead times are flexible and depend on specific order requirements.

Q5: When will you reply after receiving my inquiries?

A5: We respond within 24 hours of receiving your inquiries.

Q6: What if I don't know the technical data?

A6: Please contact our sales team for assistance. We'll patiently answer all your questions and help determine the right specifications for your application.

Customization Available: Motor voltage, speed, torque, eccentric wheel size, and materials can be customized according to customer requirements.
