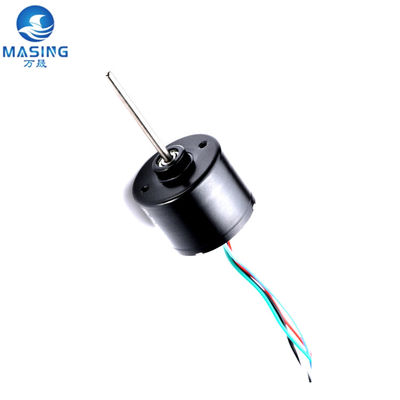

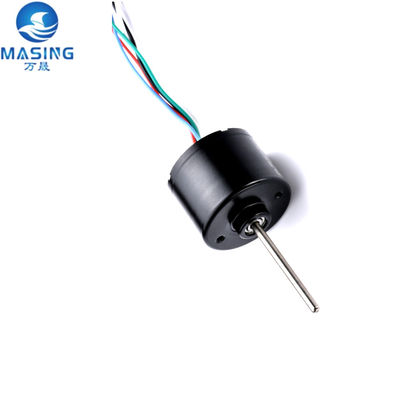

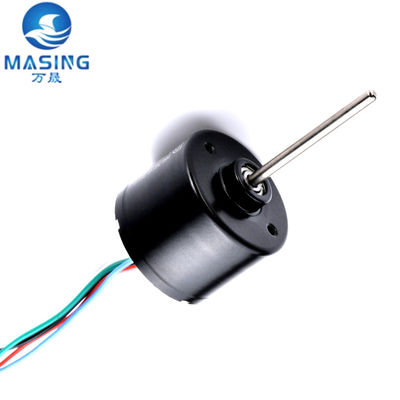

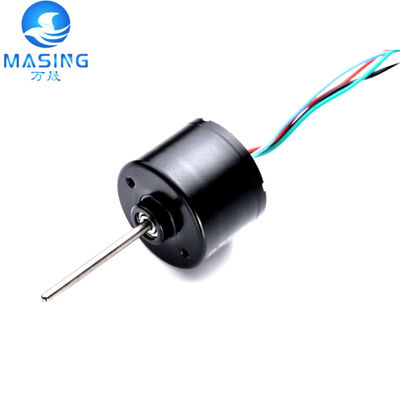

12V 24V Brushless DC Motor 36m CW CCW Low Noise 5000rpm High Power BLDC Motor PWM Control

High efficiency 36mm brushless DC motor featuring PWM control, low noise operation, and bidirectional rotation (CW/CCW). Designed for applications requiring small diameter, high torque, and long life performance.

• Voltage Range: DC 9V-26V
• Rated Speed: 1000RPM-15000RPM (adjustable)
• Rated Torque: 10gf.cm-300gf.cm
• Motor Size: φ36mm × L26mm
• Shaft Diameter: φ3.175mm or customized
• Shaft Material: Carbon steel or stainless steel
• Noise Level: ≤55DB
• Weight: 65g (Approx)
• Working Temperature: -40°C to +60°C
• Direction: CW & CCW available
• Structure: Built-in driver or external driver options

• Speed: 1000rpm-15000rpm
• Continuous Current: 10mA-500mA
• Efficiency: 55%-80%
• Warranty: 3 months - 1 year
• Place of Origin: Guangdong, China
• Brand Name: Masing Motor
• Model Number: MSBL3626
• Motor Type: Brushless DC Motor
• Construction: Permanent Magnet
• Commutation: Brushless
• Protection: Totally Enclosed
• MOQ: 1000 Pcs

5G Base Station, Electric Curtain, Power Tools, Home Application, Personal Care, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Medical Imaging Equipment, Toys, Massager, Robot Vacuum Cleaner, Driverless Systems, Artificial Intelligence, Intelligent Transportation, Health Care, Smart City, Automotive Supplies, Security Monitoring, 5G Communication, Smart Home.

• Packaging: Strong Carton 200pcs/box, or customized
• Port: Shenzhen/Guangzhou/Shanghai
• Selling Units: Single item
• Package Size: 37×27×24cm
• Weight: 65g (Approx)
• Supply Ability: 100,000 pieces per month

Maximum sample order quantity: 1 piece
Sample price: $15/piece

A1: We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

A2: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

A3: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

A4: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

A5: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
