BL3636 12 Volt Brushless DC Motor Custom Long Shaft 6mm Diameter 4000rpm High Performance DC Motor

Name: BL3636 12 Volt Brushless DC Motor Custom Long Shaft 6mm Diameter 4000rpm High Performance DC Motor
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSBL3636
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSBL3636
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Electric Brushless Dc Motor

Shaft Type:

Round,Flat ,D-cut Or Others

Motor Size:

φ36mm*L36mm

Bearing Type:

Oil Bearing Or Ball Bearing

Motor Type:

Brushless Motor &BLDC Motor

Application:

Smart Home, Robots, Office Supplies, Power Tools, Medical Equipment, Precision Instruments, Automotive Electronics,etc.

Structure:

Built-in Drive Or External Drive

Direction Of Motor:

CW&CCW Available

Voltage:

9volt - 26volt

Shaft Diameter:

φ6mm

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

12 Volt Brushless DC Motor

Brushless DC Motor Custom

4000rpm High Performance DC Motor

Product Description

Title:

BL3636 12v Brushless Dc Motor Custom Long Shaft 6mm Diameter 12v 4000rpm High Performance Dc Motor

Description:

Rated Voltage :9volt-26volt
Rated speed :1000rpm -10000rpm
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Rated Torque :5g.cm-200g.cm
The torque of the motor is nronortional to the speed of the motor
Motor type :Brushless dc motor &BLDC Motor
Direction of motor:CW&CCW available
Motor size :φ36mm*L36mm ,diameter 36mm Length 36mm brushless motor/BLDC motor
Motor shaft :φ6mm or customized
Motor type :M6,Round ,Flat ,D-cut,Threaded shaft ect
Bearing type:Oil bearing or ball bearing
Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.
Working temperature:-40~+60°c
Structure selection:Built-in driver or external driver
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Applications :Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.

Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
We can provide samples for your test.
Quality assurance: each product must pass the quality inspection before shipping

Key Attributes:

Speed(RPM)

1000rpm-10000rpm or others

Continuous Current(A)

10mA-500mA

Efficiency

65.8%-90%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSBL3636

Use

Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.

Shaft diameter

φ6mm customized

Rated Torque

5gf.cm-200gf.cm or Customized

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Bearing type

oil bearing or ball bearing

Feature

High Efficiency

Keywords

12V High Power DC Brushless Motor

Motor Diameter

φ36mm

Weight

120g (Approx)

Noise

≤55DB

MOQ

1000Pcs

Voltage

9Volt -26volt

Color

Customer's Request

Motor type

20V Brushless DC Motor

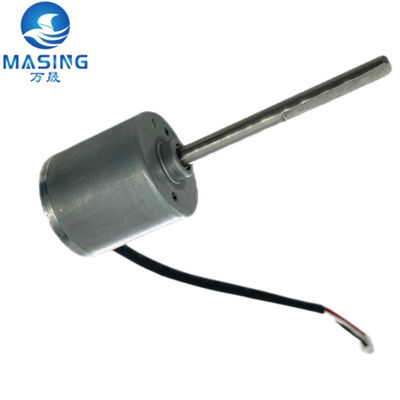

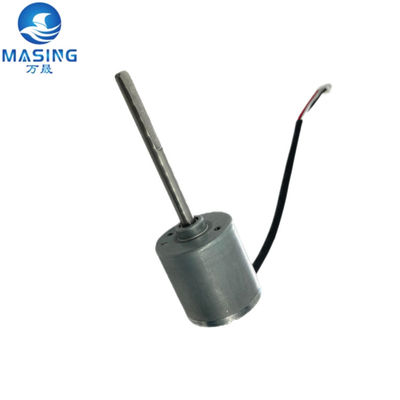

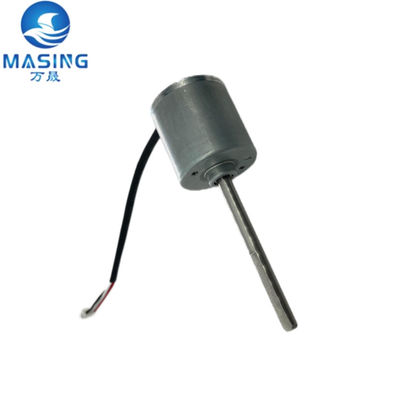

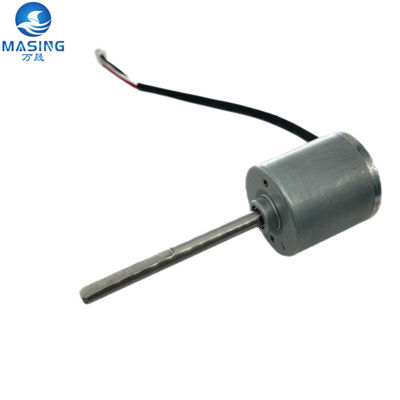

Product Photo:

BL3636 12 Volt Brushless DC Motor Custom Long Shaft 6mm Diameter 4000rpm High Performance DC Motor 0

Product Spec:

BLDC 3636 Brushless DC Motor Typical Applications

Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

BL3636 12 Volt Brushless DC Motor Custom Long Shaft 6mm Diameter 4000rpm High Performance DC Motor 2

BL3636 12 Volt Brushless DC Motor Custom Long Shaft 6mm Diameter 4000rpm High Performance DC Motor 3

Motor Data:
Motor Model	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL3636***	9~14V	12V	0.17	4000	0.48	2952	143.4	4.3	75.7	1.35	547
BL3636***	19~26V	24V	0.04	1915	0.11	1407	121.3	1.8	65.8	0.31	458

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

120g (Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools,Driverless,

Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1:Are you trading company or manufacturer?
A1: We are factory.

Q2: How to order?
A2: Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q3: How about Sample order?
A3:Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q4: Do you accept customize?

A4: Sure,as we have a strong design team,any problems will get our technical answer.

Q5: What kind of data do i neet to provide if i want to order?
A5:Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.

Q6: What if i don't know the above data?
A6: Please contact our salesman to handle,we'll answer your questions patiently.
