BLDC2830 High Torque Brushless DC Motor 20V 20W 10000RPM Fascia Gun External Rotor Brushless Motor

Name: BLDC2830 High Torque Brushless DC Motor 20V 20W 10000RPM Fascia Gun External Rotor Brushless Motor
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSBL2830
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSBL2830
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Porduct Name:

High Torque Brushless Dc Motor

Shaft Diameter:

φ5mm Or Customized

Motor Diameter:

φ28mm*L30mm

Rated Torque:

10g-300g Or Customized

Rated Voltage:

DC 5V-26V

Motor Type:

Brushless DC Motor

Structure:

Built-in Drive, External Drive

Life Expectancy:

Customized 3000H(Oil Bearing) Or 5000H (ball Bearing)

Direction Of Motor:

Cw & Ccw Available

Rated Power:

1W-30W

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

High Torque Brushless DC Motor

BLDC High Torque Motor

Fascia Gun External Rotor Brushless Motor

Product Description

Title:

20V 20W 10000RPM BLDC2830 High Torque Brushless Dc Motor Fascia Gun External Rotor DC Motor

Description:

Motor type :BLDC motor/Brushless motor
Voltage range:DC 5Volt-26Volt or customized
Rated Speed:3000-12000RPM
Rotating speed is constant and can be made as you required.
Motor Size: φ28mm*L30mm,diameter 28mm,Length 30mm brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW Available
Shaft material:Steel or Carbon steel shaft or customized
Shaft diameter :φ5.0mm or customized
Shaft type:Round ,Flat ,D-cut ,with a Hole ,Threaded shaft ,Threaded hole ect
Structure :Built-in drive, external drive
Bearing type :Oil bearing or ball bearing
Life Expectancy:3000H(Oil Bearing) or 5000H(ball bearing)
Working temperature:-40~+60°c
Connection Mode:A
Signal Function Available
PWM Countrol(Standard)
Locked Rotor Protection

Rated Power :1W-30W external drive

Widely used in :Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
We can provide samples for your test.

Quality assurance: Each product must pass 100% quality inspection before shipping

Key Attributes:

No-load Speed(RPM)

5000RPM

Continuous Current(A)

430mA

Efficiency

73.88%

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSBL2830

Use

SMART HOME, Medical Imaging Equipment,Toys,Robots,

office supplies, power tools, medical equipment,

precision instruments, automotive electronics,Electric curtain

FAN, Home Appliance, Cosmetic instrument

Motor Type

Brushless

Rated Voltage

5Volt-20volt

Structure

Built-in drive or external drive

Commutation

Brushless

At Maximum Efficiency speed

8750rpm

At Maximum Efficiency Torque

237g-cm

At Maximum Efficiency Power

21.75W

Keywords

20V BLDC2830 brushless motor

Shaft Diameter

φ5mm or customized

Weight

85g(Approx)

Noise

≤55DB

MOQ

1000Pcs

Life Expectancy

customized 3000H(Oil Bearing),5000H(Ball Bearing),

Color

Customer's Request

Motor Size

φ28mm*L30mm

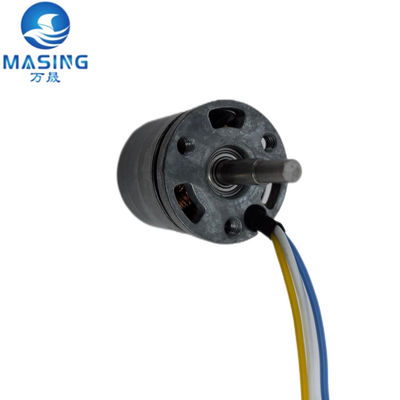

Product Photo:

BLDC2830 High Torque Brushless DC Motor 20V 20W 10000RPM Fascia Gun External Rotor Brushless Motor 0

Product Spec:

BLDC 2830 Brushless Motor Typical Applications

office supplies, power tools, medical equipment,precision instruments, automotive electronics,Electric curtain

Toys,Robots, Robot vacuum cleaner,Electric Bicycle, FAN, Home Appliance, Cosmetic instrument,SMART HOME, Medical Imaging Equipment

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

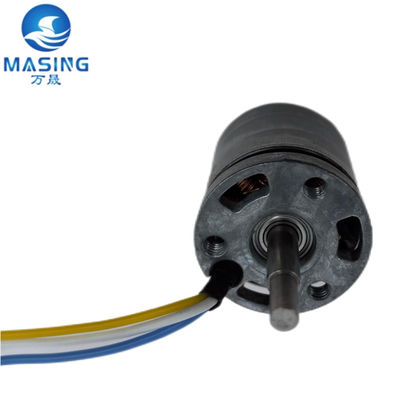

BLDC2830 High Torque Brushless DC Motor 20V 20W 10000RPM Fascia Gun External Rotor Brushless Motor 2

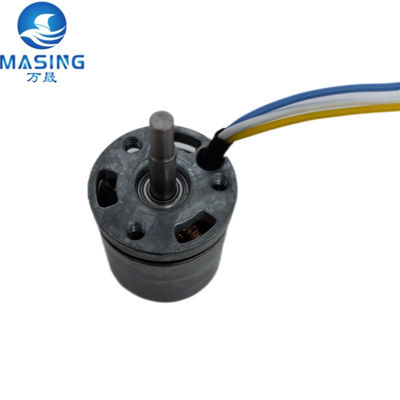

BLDC2830 High Torque Brushless DC Motor 20V 20W 10000RPM Fascia Gun External Rotor Brushless Motor 3

Motor Data:
Motor Model	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL2830***	5~26V	12V	0.43	10290	2.45	8750	237	21.75	73.88	13.9	1580
BL2830***	5~26V	20V	0.20	10000	1.10	8300	201	20.59	72.45	7.31	1500

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

85g(Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1: Can you design and develop samples?

A1: Sure. Support design,R&D and manufacturing of your motors.

Q2: How to Place order ?

A2:1).Tell us the motor parameters you need or send us the motor drawing.

2).Proforma Invoice will be made and send for your approval.

3).Productions will be arranged upon receipt of your approval and payment or deposit.

4).Goods will be delivered as stated on the proforma invoice

Q3: What kind of inspection you can provide ?

A3: 1).ISO9000 quality system certification.

2).MASING MOTOR provides 8 motor function quality tests for motor shaft balance, resistance, leakage, power, speed, waterproof, silent, and temperature resistance. Confirm that the quality of the motor meets your strict requirements.

Q4: How long is your delivery time ?

A4: 1).Masing MOTOR warehouse stock 2-3 days.
2).Masing MOTOR custom production 10-15 days.
