12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

Brand Name:	Masing Motor
Model Number:	MSBL2820
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Porduct Name:

Small Brushless Dc Motor

Shaft Diameter:

φ2.3mm Or Customized

Motor Diameter:

φ28mm*L20mm

Rated Torque:

10g-100g Or Customized

Voltage:

DC 5V-12V

Motor Type:

Brushless Motor

Structure:

Built-in Drive, External Drive

Life Expectancy:

3000H(Oil Bearing) Or 5000H (ball Bearing)

Direction Of Motor:

Cw & Ccw Available

Rated Power:

1W-10W

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

Brushless DC Motor High Speed

5V DC Brushless Motor

5V Brushless DC Motor

Product Description

12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

Product Overview

OEM Factory Customized 5V 12V DC Brushless Motor with high power, high speed, and low noise operation.

Voltage range: DC 5V-12V or customized
Rated Speed: 1000-10000 RPM
Motor Size: φ28mm × L20mm
Direction: CW & CCW Available
Shaft diameter: φ2.3mm or customized
Structure: Built-in drive or external drive
Bearing type: Oil bearing or ball bearing
Life Expectancy: 3000H (Oil Bearing) or 5000H (Ball Bearing)
Working temperature: -40°C to +60°C
Features: PWM Control, Locked Rotor Protection, Signal Function Available

Technical Specifications

Parameter	Value
No-load Speed	5000 RPM
Continuous Current	130 mA
Efficiency	51.7%
Model Number	MSBL2820
Motor Type	Brushless DC
Weight	48g
Noise Level	≤55 DB
MOQ	1000 Pcs

Performance Data

Motor Mode	Voltage	No Load Speed	No Load Current	Max Efficiency Speed	Max Efficiency Torque	Max Efficiency Power	Efficiency	Stall Current	Stall Torque
BL2820***	5V	5000 rpm	0.13 A	3768 rpm	27.4 g-cm	1.1 W	51.7%	1.27 A	111 g-cm
BL2820***	12V	7650 rpm	0.10 A	6176 rpm	53.1 g-cm	3.4 W	66.9%	1.75 A	275 g-cm

Applications

Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, toys, fans, home appliances, cosmetic instruments, medical imaging equipment, electric curtains, robot vacuum cleaners, electric bicycles.

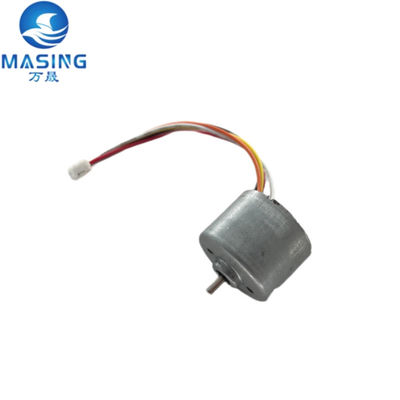

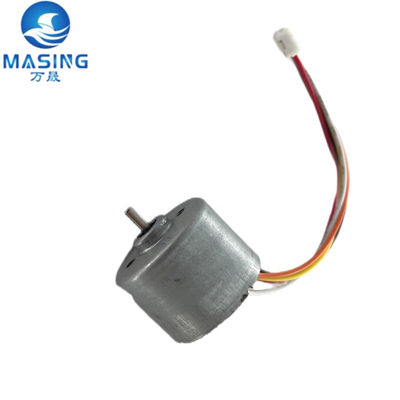

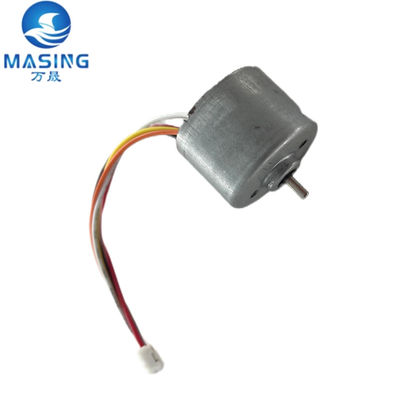

Product Images

Packaging & Delivery

Packaging: Strong Carton 250pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Single package size: 37×27×24 cm
Single gross weight: 48g (Approx)
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum sample order quantity: 1 piece

Sample price: $15/piece or negotiable

Frequently Asked Questions

What is the advantage about your company?

Advanced manufacturing equipment, more than 15 years motor design and manufacturing experience, flexible customization of OEM/ODM orders, advanced automated production equipment, ISO9001, ISO14001, TS16949 system certification.

Why should I choose your products?

Our products are high quality and competitively priced.

Can the logo and color be customized?

Yes, we welcome custom sample orders.

What is your guarantee for the products?

We provide technical support and spare parts for repair if any quality problems occur, and will follow up until you are satisfied.

Do you offer a guarantee for the products?

If you have any issues with our product, contact us and your problem will be solved within 7*24 hours. If there is a quality problem, we will replenish the product.

Can you provide OEM or ODM service?

Yes, OEM and ODM services are both available.
