36mm*30mm 12V Micro DC Brushless Motor 3630 BLDC High Speed Motor For Robots

36mm*30mm 12V Micro DC Brushless Motor 3630 BLDC High Speed Motor For Robots

Brand Name:	Masing Motor
Model Number:	MSBL-2418
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Porduct Name:

Bldc3630 Brushless Dc Motor

Shaft Diameter:

φ5mm Or Customized

Motor Diameter:

φ36mm*L30mm

Rated Torque:

Customized 10g-500g

PWM:

PWM Countrol(Standard)

Motor Type:

Brushless Motor

Structure:

Built-in Drive, External Drive

Life Expectancy:

3000H(Oil Bearing) Or 5000H (ball Bearing)

Direction Of Motor:

Cw & Ccw Available

Power:

1W-20W

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

12V Micro DC Brushless Motor

12V BLDC Motor

3630 BLDC High Speed Motor

Product Description

36mm×30mm 12V Micro DC Brushless Motor 3630 BLDC High Speed Motor For Robots

Product Overview

DC Micro Motor 36mm×30mm 12V Brushless DC Motor featuring high efficiency, low noise, and versatile speed capabilities. Ideal for robotics and precision applications requiring compact size and reliable performance.

Technical Specifications

Voltage Range: DC 6V-24V or customized
Rated Speed: 1000-10000 RPM
Motor Size: φ36mm × L30mm
Shaft Diameter: φ3.175mm or customized
Shaft Material: Steel or Carbon Steel
Power: 3W (Internal Drive)
Weight: 75g
Noise Level: ≤55 DB
Working Temperature: -40°C to +60°C
Direction: CW & CCW Available
Bearing Type: Oil Bearing or Ball Bearing
Life Expectancy: 3000H (Oil Bearing), 5000H (Ball Bearing)

Performance Data

Motor Model	Voltage	No Load Current	No Load Speed	Max Efficiency Current	Max Efficiency Speed	Max Efficiency Torque	Max Efficiency Power	Efficiency	Stall Current	Stall Torque
BL3630***	9-14V	0.15A	3000 rpm	0.51A	2318 rpm	133.4 g-cm	3.2W	51.9%	1.74A	587 g-cm
BL3630***	19-26V	0.13A	4680 rpm	0.41A	3556 rpm	153.6 g-cm	5.6W	56.8%	1.30A	639 g-cm

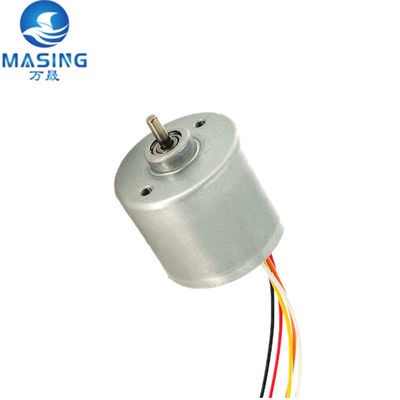

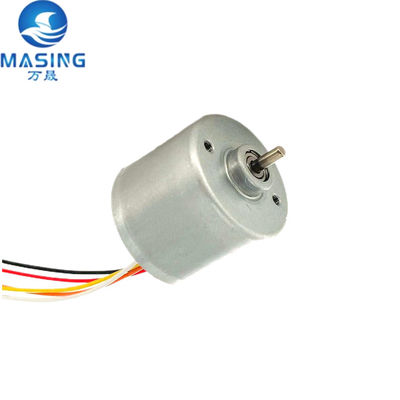

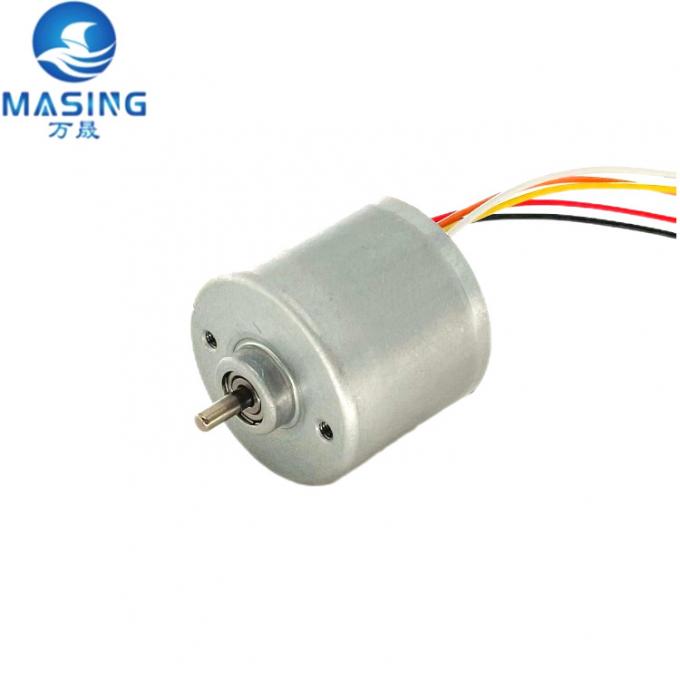

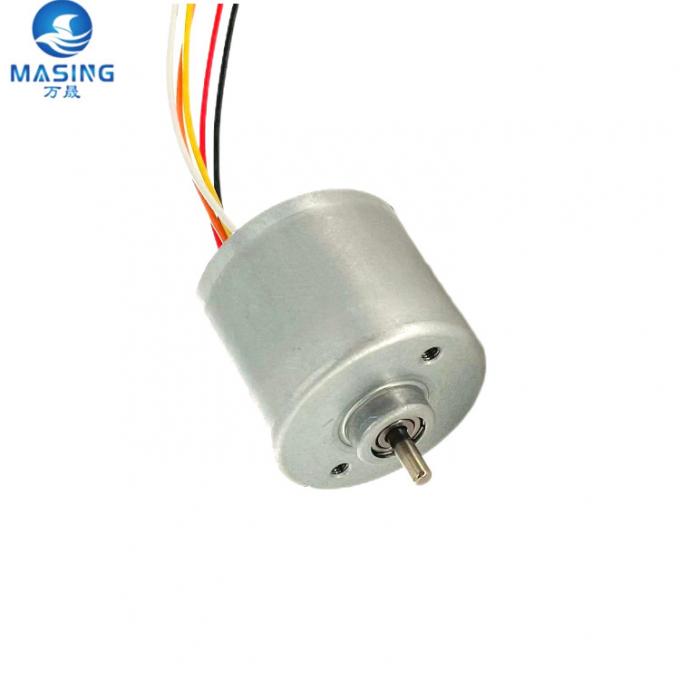

Product Images

Applications

Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, toys, fans, home appliances, cosmetic instruments, medical imaging equipment, electric curtains, robot vacuum cleaners, and electric bicycles.

Ordering Information

Minimum Order Quantity: 1000 pieces
Supply Ability: 100,000 pieces per month
Packaging: Strong Carton 250pcs/box or customized
Sample Price: $15/piece (Negotiable)
Maximum Sample Quantity: 1 piece
Port: Shenzhen/Guangzhou/Shanghai
Warranty: 3 Months - 1 Year

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Frequently Asked Questions

Q1: Do you accept customizations?

A1: Yes, we have a strong design team to provide technical solutions for custom requirements.

Q2: How about sample orders?

A2: Samples are available. Please contact us for details.

Q3: What data do I need to provide for ordering?

A3: Please provide voltage, speed, torque, and overall dimension requirements.

Q4: What if I don't know the technical data?

A4: Our sales team will assist you in determining the appropriate specifications.

Q5: Do you offer product guarantee?

A5: Yes, we provide quality assurance and will resolve any issues within 24 hours. Quality problems will be replenished.

Q6: What are the main applications of this motor?

A6: Widely used in home appliances, office equipment, healthcare appliances, automation industry, banking systems, vending machines, and electronic door locks.

Quality Assurance

Each product undergoes 100% quality inspection before shipping to ensure reliability and performance standards.

Contact us for technical support, custom requirements, or sample orders.
