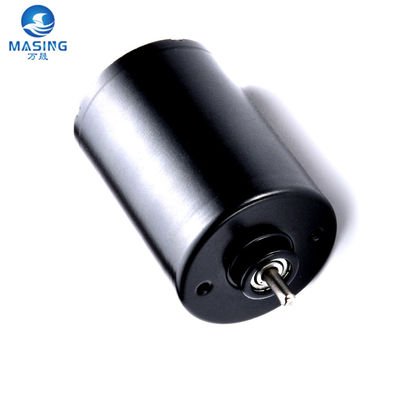

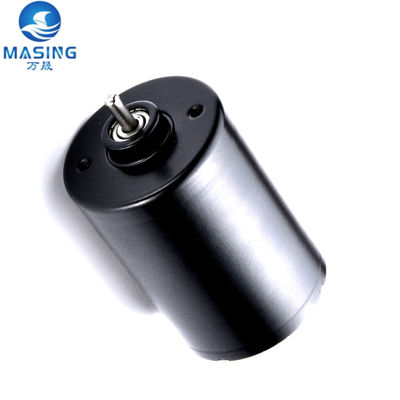

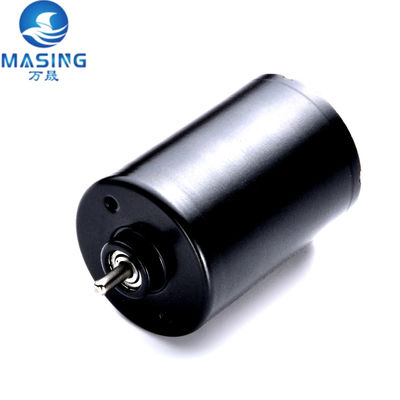

5000rpm High Speed Brushless DC Motor 24V 12V BLDC3650 Motor Low Noise

5000rpm High Speed Brushless DC Motor 24V 12V BLDC3650 Motor Low Noise

Brand Name:	Masing Motor
Model Number:	MSBL3650
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Permanent Magnet Dc Brushless Motor Bldc3650

Shaft Type:

Round ,D-cut, Flat Shaft ,Threaded Shaft,ect

Motor Size:

φ36mm*50mm

Motor Type:

Brushless Motor

High Power:

1W-50W

Direction Of Motor:

CW&CCW Available

Structure:

Built-in Drive/External Drive

Bearing Type:

Ball Or Oil Bearing

Voltage:

12volt/24volt

Life Expectancy:

3000H(Oil Bearing) Or Customized

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

Low Noise Brushless DC Motor

High Speed Brushless DC Motor

24V Brushless DC Motor

Product Description

5000rpm High Speed Brushless DC Motor 24V 12V BLDC3650 Motor Low Noise

Product Overview

High Efficiency Low Noise 12V 5000rpm High Speed Brushless DC Motor 24V BLDC3650 Motor designed for optimal performance in various industrial and commercial applications.

Key Features

High Efficiency: IE3 efficiency rating for optimal energy usage and minimal waste
Low Noise Level: ≤55DB operation for quiet performance
Motor Size: φ36mm × L50mm (diameter 36mm, length 50mm)
Structure Options: Built-in driver or external driver configurations
Rated Voltage: DC 6V-24V operation range
Customizable: Voltage, speed, torque, eccentric wheel size and material can be customized
Direction Control: Forward and reverse functions (CW/CCW available)
Signal Output: FG Signal function
Speed Control: Pulse width speed regulation (PWM Control)
Protection Features: Locked rotor protection and overcurrent protection

Technical Specifications

Motor Type: Brushless DC Motor (BLDC)
Model Number: MSBL-3650
Brand Name: Masing Motor
Place of Origin: Guangdong, China

Shaft Diameter: φ5mm or customized
Weight: 180g
Speed Range: 1500rpm-10000rpm
Continuous Current: 10mA-500mA

Torque Range: 20gf.cm-1kgf.cm
Construction: Permanent Magnet
Commutation: Brushless
Working Temperature: -40°C to +60°C

Power Range: 1W-30W (Internal Drive), 1W-50W (External Drive)
Connection Mode: B Model
Life Expectancy: 5000H (Ball Bearing), 3000H (Oil Bearing)
Certifications: 16949, CE, Rohs, ISO

Performance Data

Motor Model	Voltage	No Load	At Maximum Efficiency	Stall
Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
BL3650***	9~14V	12V	0.46A	5300rpm	1.98A	4301rpm	342g-cm	15.1W	63.5%	8.53A	1813g-cm
BL3650***	19~26V	24V	0.32A	13800rpm	1.76A	11678rpm	265g-cm	31.8W	75.3%	9.69A	1725g-cm

Product Images

Applications

Medical Equipment
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer

Business Machines
Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen

Electric Powered Equipment
Electric toothbrush, Electric tool, Electric toy car, Electric curtain

Smart Home
Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock

Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers

Robotics
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Packaging & Delivery

Packaging Details: Strong Carton 100pcs/box, or customized
Single Package Size: 37×27×24cm
Single Gross Weight: 180g

Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Samples: Maximum order quantity: 1 piece
Sample Price: $15/piece or Negotiable
Quality Assurance: Each product must pass 100% quality inspection before shipping

Frequently Asked Questions

Q1: How to order?

A1: Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q2: Do you offer accessories like encoder, PCB, connector, soldering wired for the motor?

A2: We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.

Q3: How about Sample order?

A3: Sample is available for you. Please contact us for details.

Q4: How long is the delivery?

A4: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Q5: Do you accept customization?

A5: Sure, as we have a strong design team, any problems will get our technical answer.

Q6: What kind of data do I need to provide if I want to order?

A6: Please kindly tell us your voltage, speed, torque and overall dimension.

Q7: What if I don't know the above data?

A7: Please contact our salesman to handle, we'll answer your questions patiently.

Important Note: Please refer to the rated voltage used by our motor. The voltage exceeding the range of use of our voltage may cause the machine to burn.
