28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Brand Name:	Masing Motor
Model Number:	MSBL2838
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Permanent Magnet DC Brushless Motor

Shaft:

Flat ,D-cut Or Round Ect

Motor Size:

φ28mm*L38mm

Bearing Type:

Oil Bearing Or Ball Bearing

Motor Type:

Brushless Motor

Application:

Smart Home, Robots, Office Supplies, Power Tools, Medical Equipment, Precision Instruments, Automotive Electronics,etc.

Structure:

Built-in Drive

Direction Of Motor:

CW&CCW

Voltage:

12volt Or 24volt

Function:

Driving Effect

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

28mm Permanent Magnet DC Brushless Motor

Permanent Magnet DC Brushless Motor 24V

BLDC Permanent Magnet Motor

Product Description

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Product Overview

Factory customizable 28mm diameter 24V DC brushless motor 2838 BLDC permanent magnet designed for medical devices and robotic applications.

Voltage: 12V, 24V or custom specifications
Rated speed: 1000rpm - 10000rpm
Motor speed is proportional to motor voltage
Torque: 10g.cm - 200g.cm
Motor type: Brushless DC motor
Default direction: CW & CCW
Size: φ28mm × 38mm (diameter 28mm, length 38mm)
Shaft: φ2.3mm or custom specifications
Shaft types: Round, Flat, D-cut, Threaded, etc.
Bearing type: Oil bearing or ball bearing
Working temperature: -40°C to +60°C
Structure selection: Built-in driver or external driver

Key Specifications

Speed (RPM): 1000rpm - 10000rpm
Continuous Current: 10mA - 500mA
Efficiency: IE3
Warranty: 3 Months - 1 Year
Place of Origin: Guangdong, China
Brand Name: Masing Motor
Model Number: MSBL-2838
Shaft Diameter: φ2.3mm
Torque: Customized
Construction: Permanent Magnet
Commutation: BLDC Motor
Protection Feature: Totally Enclosed
Weight: 90g
Noise: ≤55DB
MOQ: 1000Pcs
Color: Customer's Request
Motor Type: Micro Brushless Motor

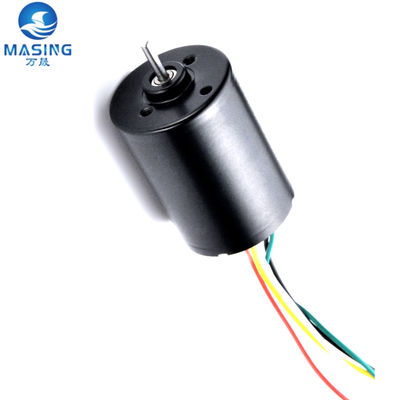

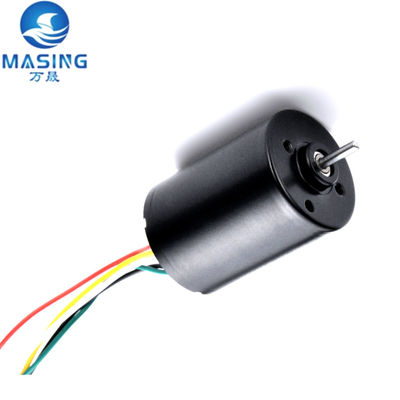

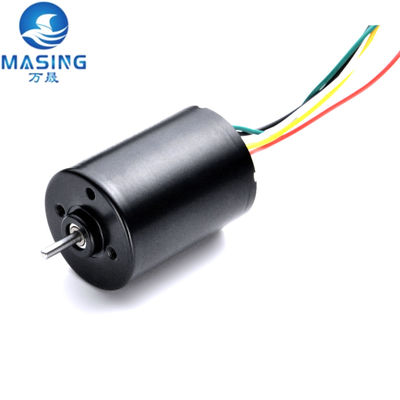

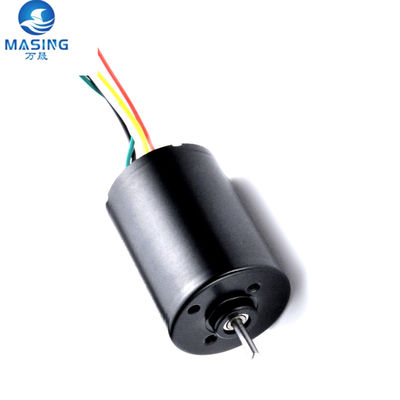

Product Images

Applications

Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, toys, massagers, robot vacuum cleaners, car flip screens, intelligent trash cans, power tools, home applications, personal care, cars, electric bicycles, fans, cosmetic instruments, smart home, medical imaging equipment.

Technical Specifications

Motor Model	Voltage	No Load Current (A)	No Load Speed (rpm)	Max Efficiency Current (A)	Max Efficiency Speed (rpm)	Max Efficiency Torque (g-cm)	Max Efficiency Power (W)	Max Efficiency (%)	Stall Current (A)	Stall Torque (g-cm)
BL2838***	9-14V (12V rated)	0.04	3550	0.18	2900	50	1.5	71.5	0.8	275
BL2838***	19-26V (24V rated)	0.10	6400	0.31	4850	104	5.1	67.5	1.0	434

Packaging & Delivery

Packaging: Strong Carton 100pcs/box, or custom packaging
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 70g
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 5000	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $15/piece

Certifications & Factory

Frequently Asked Questions

Q1: How can I get the price?

A1: We usually quote within 24 hours after we get your inquiry (except weekends and holidays). If you are urgent to get the price, please email us or contact us in other ways.

Q2: Can I buy samples before placing orders?

A2: Yes. Please feel free to contact us.

Q3: Do you offer discounts?

A3: We are a factory and have the most competitive price. If your quantity is large, we can negotiate the price.

Q4: What is your lead time?

A4: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Q5: Do you accept customizations?

A5: Yes, we have a strong design team and can provide technical solutions for any requirements.

Q6: What information do I need to provide to place an order?

A6: Please provide your voltage, speed, torque, and overall dimension requirements.

Customization Available: All motor specifications including voltage, speed, torque, eccentric wheel size, and materials can be customized according to customer requirements. We provide samples for testing.
