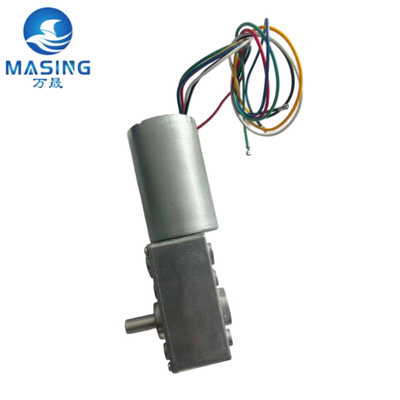

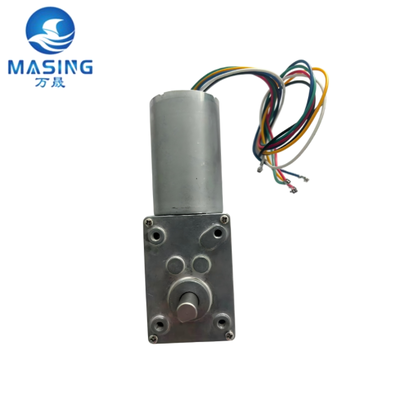

58mm Worm Gear Reduction Motor Intelligent Valve Pet Feeder Intelligent Cat Litter Machine Motor Electric Door Lock Motor 24V

58mm Worm Gear Reduction Motor Intelligent Valve Pet Feeder Intelligent Cat Litter Machine Motor Electric Door Lock Motor 24V

Brand Name:	Masing Motor
Model Number:	MS4058Z31ZY
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

High Torque Micro Worm Gear Motor

Motor Type:

12volt Worm Gear Motor

Life Time:

500H-2000H

Gear Type:

Z Type Gearbox

Motor:

31ZY DC Motor

Rated Voltage:

6v-30v

Gear Material:

Copper ,Steel,Powder Metallurgy,Plastic Or Others

Direction Of Motor:

CW&CCW

Rated Torque:

0.1~10NM

Motor Function:

Self-locking Function

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

58mm worm gear reduction motor

24V DC worm gear motor

intelligent valve pet feeder motor

Product Description

58mm Worm Gear Reduction Motor

Intelligent Valve Pet Feeder, Intelligent Cat Litter Machine Motor, Electric Door Lock Motor 24V

Product Overview

High-performance 58mm worm gear reduction motor designed for intelligent applications including pet feeders, cat litter machines, and electric door locks. Features customizable specifications and reliable performance.

Technical Specifications

Rated Voltage: DC 6V-30V
Rated Speed: 5rpm-500rpm or customized
Torque: 0.1NM-10NM
Motor Direction: CW & CCW
Working Temperature: -40°C to +60°C
Gear Material: Metal, Copper, Powder Metallurgy & Steel, Plastic or customized
Bearing: Ball bearing, Oil bearing
Noise Level: ≤55DB
Life Time: 500H-2000H or Customized

Product Images

Performance Data - 4058GM31ZY DC Worm Gear Motor

Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Voltage	Gear Ratio(i)	17	30	50	100	165	200	290	505	670
12V	No-load Speed (rpm)	471	267	160	80	48	40	28	16	12
	On-load Speed (rpm)	353	200	120	60	36	30	21	12	9
	Rated Torque (kgf.cm)	3.00	5.00	8.00	15.00	18.00	23.00	28.00	39.00	48.00
	Stall Torque (kgf.cm)	8.1	13.5	21.6	40.5	48.6	70.0	70.0	70.0	70.0
24V	No-load Speed (rpm)	471	267	160	80	48	40	28	16	12
	On-load Speed (rpm)	353	200	120	60	36	30	21	12	9
	Rated Torque (kgf.cm)	3.00	5.00	8.00	15.00	18.00	23.00	28.00	39.00	48.00
	Stall Torque (kgf.cm)	8.1	13.5	21.6	40.5	48.6	70.0	70.0	70.0	70.0

Applications

This motor is suitable for various applications including:

Medical Equipment
Office Supplies & Automation
Home Appliances
Smart Home Systems
Conveying Equipment
Robotics
Electronic Locks
Vending Machines
Massage Machines
Intelligent Robots

Packaging & Delivery

Packaging: Strong Carton (100pcs/box) or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×24cm
Gross Weight: 0.5KG
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	20	To be negotiated

Quality & Certifications

Every product must pass quality inspection before shipping. Products through various certifications including CE, RoHS, ISO, Reach.

Company Advantages

Large-scale professional manufacturer with 5+ years experience
Integrated development, production, wholesale and service
Professional teams for research, engineering and sales
Strong technology development and manufacturing capability

Product Advantages

Variety of products with quality guarantee
Advanced product testing equipment
Customizable according to client requirements
Independent research and development capability
Products with patent certificates

Frequently Asked Questions

Q1: How to select a suitable motor?

A1: If you have motor pictures, drawings, or detailed specifications like voltage, speed, torque, motor size, working mode, needed lifetime and noise level, please contact us for suitable motor recommendations.

Q2: Do you have a customized service for your standard motors?

A2: Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as required.

Q3: Do you have an individual design service for motors?

A3: Yes, we provide individual motor design services, which may require mould and design charges.

Q4: Can I have samples for testing first?

A4: Yes, after confirming motor specifications, we will provide a proforma invoice for samples. Payment confirmation allows us to proceed with sample production.

Q5: How do you ensure motor quality?

A5: We have comprehensive inspection procedures including incoming materials inspection, production process tour inspection, and final inspection before shipping.

Q6: What's your lead time?

A6: Standard products typically require 25-30 days, while customized products may take longer. Lead times are flexible and depend on specific order requirements.
