High Torque Worm Gear Motor 12V 24V Volt Micro Electric Brush DC Gear Motor

High Torque Worm Gear Motor 12V 24V Volt Micro Electric Brush DC Gear Motor

Brand Name:	Masing Motor
Model Number:	MS4058Z390/395
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

4058 Micro Worm Gear Motor

Construction:

Permanent Magnet

Life Time:

1000H

Type:

Z Type Gearbox

Motor:

RS-390 RS-395 Micro Motor

Voltage:

6v-30v

Gear Material:

Powder Metallurgy&Steel

Product Type:

Worm Gear Motor

Rated Torque:

0.1~4NM

Shaft Diameter:

8mm Customzied

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

High Torque Worm Gear Motor 12V

Worm Gear Motor 12v High Torque

Electric Brush DC Gear Motor

Product Description

High Torque Worm Gear Motor 12V 24V Volt Micro Electric Brush DC Gear Motor

Product Overview

DC Worm Gear Motor High Torque 12V 24V Volt DC Worm Gear Motor Micro Electric Brushed DC Motor RS-390 RS-395 Gear Motor

Voltage: DC 6V-30V
Speed: 5RPM-500RPM
Customizable Speed: The motor allows for custom speed options, making it suitable for a wide range of applications
Torque: 0.01NM-4NM
Motor default direction: CW & CCW
Working temperature: -40~+60°C
Gear Material: Metal, Powder metallurgy & Steel
Bearing: Ball bearing, Oil bearing etc.
Suitable for Various Applications: Home Appliance, Cosmetic instrument, SMART HOME, Conveying equipment, Robots, electronic locks, public bicycle locks, relays
Customized support: OEM, ODM, OBM
Compliance and Support: RoHS-certified product meeting international safety standards
Low Noise Operation: Features low noise design for quiet operation
Customizable Options: Customizable weight, continuous current, and rated power options

Key Specifications

Speed (RPM)
2RPM-500RPM

Continuous Current (A)
Customized

Efficiency
IE3

Warranty
3 Months-1 Year

Place of Origin
Guangdong, China

Brand Name
Masing Motor

Model Number
MS4058GM-390/-395

Type
4058Z DC Worm Gear Motor

Torque
0.01NM-4NM

Construction
Permanent Magnet

Commutation
Carton Brush

Protect Feature
Totally Enclosed

Gear Material
Powder metallurgy & Steel

Noise
≤55DB

MOQ
1000Pcs

Life Time
1000H Customized

Gearbox Shaft
8mm Customer's Request

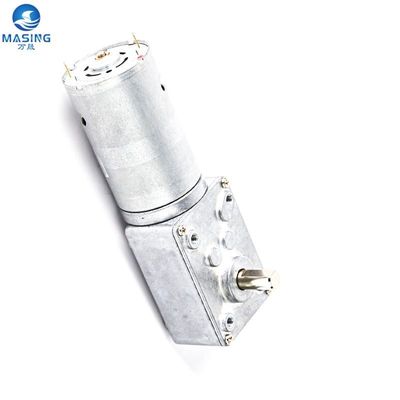

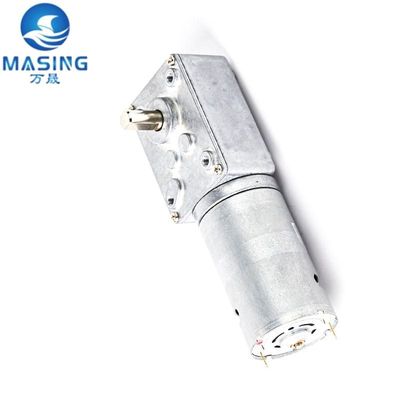

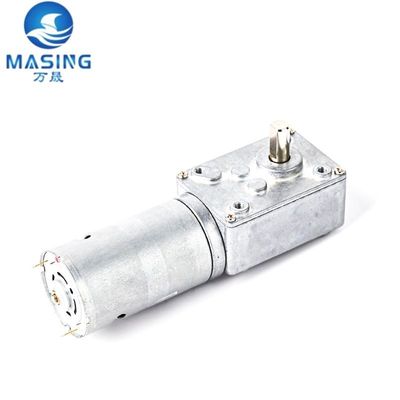

Product Images

Technical Specifications

4058GM390/395 DC Worm Gear Motor Typical Applications: Home Appliance, Cosmetic instrument, SMART HOME, Conveying equipment, Robots, electronic locks, public bicycle locks, relays

Voltage, rated torque, speed, current, power and shaft size can be customized as requirement.

DC Motor Speed	Ratio	Gear Stages	Gearbox Size	Model Number	Voltage Range	Rated Voltage	No Load Current	Speed	On Load Current	Torque	Speed RPM
3500	27	3	58×40	MS4058GM27i-24V-129.6R	6-36	24	70.0	129.6	310.0	0.32	103.7
3500	50	3	58×40	MS4058GM50i-24V-70R	6-36	24	70.0	70.0	310.0	0.60	56.0
3500	79	3	58×40	MS4058GM79i-24V-44.3R	6-36	24	70.0	44.3	310.0	0.95	35.4
3500	93	3	58×40	MS4058GM93i-24V-37.6R	6-36	24	70.0	37.6	310.0	1.12	30.1
3500	122	3	58×40	MS4058GM122i-24V-28.7R	6-36	24	70.0	28.7	310.0	1.47	23.0
3500	167	3	58×40	MS4058GM167i-24V-21R	6-36	24	70.0	21.0	310.0	2.01	16.8
3500	213	3	58×40	MS4058GM213i-24V-16.4R	6-36	24	70.0	16.4	310.0	2.56	13.1
3500	263	4	58×40	MS4058GM263i-24V-13.3R	6-36	24	70.0	13.3	310.0	2.85	10.6
3500	311	4	58×40	MS4058GM311i-24V-11.3R	6-36	24	70.0	11.3	310.0	3.00	9.0
3500	407	4	58×40	MS4058GM407i-24V-8.6R	6-36	24	70.0	8.6	310.0	3.00	6.9
3500	556	4	58×40	MS4058GM556i-24V-6.3R	6-36	24	70.0	6.3	310.0	3.00	5.0
3500	710	4	58×40	MS4058GM710i-24V-4.9R	6-36	24	70.0	4.9	310.0	3.00	3.9

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in

If you need other parameters, please contact customer service.

Packaging & Delivery

Packaging Details: Strong Carton 100pcs/box, or as you wish
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Single package size: 37×27×24cm
Single gross weight: 0.52KG

Supply Ability

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	20	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $10/piece

Certifications

Company & Product Advantages

Company Advantages

Large-scale professional manufacturer trusted by domestic and overseas customers
Integrated development, production, wholesale and service
Professional teams in research, product engineering and sales
5+ years experience in research and development
Strong technology development and manufacturing capability
Advanced equipment

Product Advantages

Variety of products with quality guarantee
Advanced product testing equipment
Product flexibility with custom development
Independent research and development capabilities
Products through various certifications (CE, RoHS, ISO, Reach)
Some products have patent certificates

Factory Overview

Product Classification

Applications

Small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

Our products have a wide range of applications, more application scenarios are waiting for you to unlock.

Medical Equipment
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer

Business Machines
Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen

Electric Powered Equipment
Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain

Smart Home
Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock

Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers

Robotics
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot

Frequently Asked Questions

Q1: Are you factory?

A1: Yes, we are factory. Our brand "Masing Motor" is a well-known micro motor manufacturer for more than 5 years in China. Main products include micro geared motor, brushless DC motor, DC motor and planetary gear box etc.

Q2: How to order?

A2: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q3: Can I have samples for testing first?

A3: Yes, definitely you can. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples. Once we receive payment, we will proceed with samples accordingly.

Q4: How long is the delivery?

A4: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Q5: How to confirm the payment?

A5: We accept payment by T/T, PayPal. Other payment methods can also be accepted. Please contact us before using other payment methods. 30-50% deposit is available, with balance paid before shipping.

Q6: Can I visit your company?

A6: Yes, welcome to visit our company. Please let us know at least two weeks in advance to ensure no other meetings during your visit.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

United States Feb 2.2026

Helpful (88)

Perfect,I had no issues with the order process or packaging, everything was smooth.

Prince

United States Dec 5.2025

Helpful (106)

Great motor! Works perfectly at 6V, 12V, and 24V. The planetary gear design provides excellent reduction and reliable power. Solid construction and long‑lasting so far.

Sara

Turkey Oct 28.2025

Helpful (209)

Very good ,the quality is way better than I expected, and it arrived super quickly.
