3246 Worm Gearbox DC Motor 370 Worm Geared Motor Customized For Doll Machine

3246 Worm Gearbox DC Motor 370 Worm Geared Motor Customized For Doll Machine

Brand Name:	Masing Motor
Model Number:	MS3246Z370
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Dc Worm Reduction Gear Motor

Gearbox Shaft:

Flat,Round,D-cut ,with A Hole Or Customized

Motor Type:

370 Dc Motor

Gearbox Type:

Worm Gear Motor

Gearbox Size:

φ32mm*H46mm

Rated Voltage:

DC 3v-24v

Direction Of Motor:

CW &CCW Available

Shaft Diameter:

φ6mm

Rated Torque:

0.5kgf.cm~25kgf.cm

Efficiency:

IE 3

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

Worm Gearbox DC Motor

370 Worm Geared Motor

Worm Geared Motor Customized

Product Description

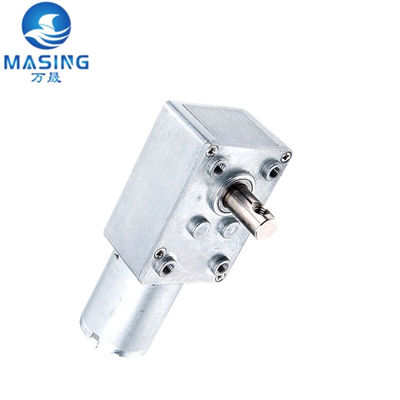

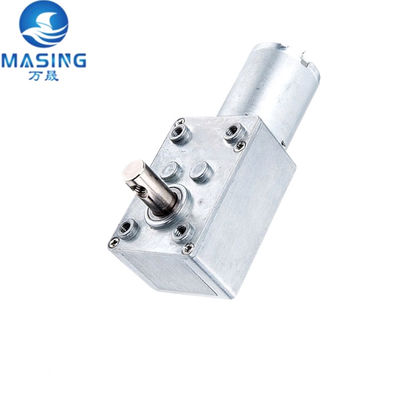

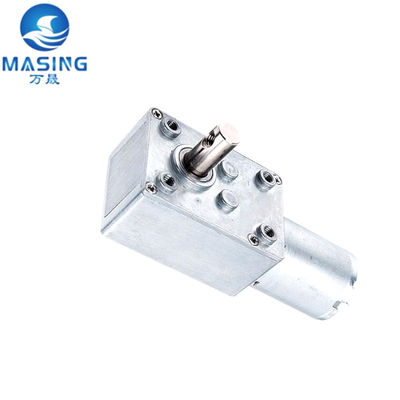

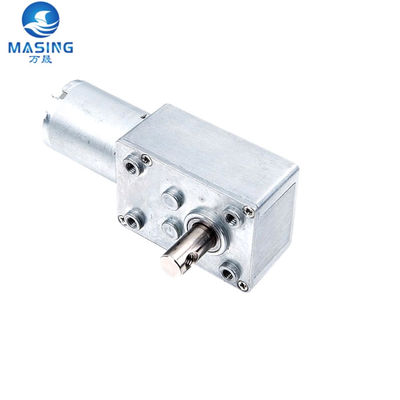

3246 Worm Gearbox DC Motor 370 Worm Geared Motor Customized For Doll Machine

High-performance DC worm gear motor designed for doll machines, smart small appliances, and vending machines with customizable specifications.

Product Specifications

Voltage range: DC 1.5V-24V
Rated Speed: 2RPM-500RPM
Customizable Speed: Suitable for electric access control systems and security cameras
Gearbox type: Worm gear DC motor
Gearbox size: φ32mm × H46mm
Gearbox material: Metal or customized
Gear Material: Metal, Plastic, Powder metallurgy & Steel
Shaft diameter: φ6mm or customized
Shaft type: Flat, D-cut, Round, Threaded shaft, Threaded hole, etc.
Motor Type: Brush Motor or Brushless Motor
Accessories: Encoder, terminal wire, gear, fan or customized
Motor default direction: CW & CCW available
Working temperature: -40°C to +60°C
Customized support: OEM, ODM, OBM

Technical Attributes

Speed (RPM)	2RPM-500RPM
Continuous Current (A)	10mA-500mA
Efficiency	65%-90%
Warranty	3 Months-1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS3246Z370
Use	Doll Machine/Smart Small Appliances/Vending Machine, Auto shutter, binding machine, automatic TV rack, money counter, spot light, tissue machine, office equipment, household appliances, automatic actuator
Gearbox Type	Worm Gearbox Motor
Torque	0.1kgf.cm-30kgf.cm
Construction	Permanent Magnet
Commutation	Brush Motor / Brushless Motor
Direction of motor	CW & CCW available
Product Name	12V DC worm gear motor
Shaft diameter	φ6mm
Shaft material	Steel or customized
Gearbox size	φ32mm × H46mm
Weight	0.35KG
Noise	≤55DB
MOQ	1000Pcs
Life Time	500h-2000H or Customized
Gearbox Shaft type	Flat, M5, M6, D-cut or Round or Threaded shaft or Threaded hole
Motor type	Brush Motor / Brushless Motor

Product Images

Typical Applications

Doll Machine/Smart Small Appliances/Vending Machine, Auto shutter, binding machine, automatic TV rack, money counter, spot light, tissue machine, office equipment, household appliances, automatic actuator.

Voltage, rated torque, speed, current, power and shaft size can be customized as requirement.

Packaging & Delivery

Packaging Details	Strong Carton 400pcs/box, or as you wish
Port	Shenzhen/Guangzhou/Shanghai
Selling Units	Single item
Single package size	37×27×24cm
Single gross weight	10.6kg

Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	20	To be negotiated

Samples

Maximum order quantity	1 piece
Sample price	$10/piece

Certifications

Company Advantages

Large-scale professional manufacturer integrating development, production, wholesale and service
Professional teams in research, product engineering and sales
5 years experience in research and development with strong technology and manufacturing capability

Product Advantages

Variety of products with quality guarantee
Advanced product testing equipment
Customizable according to client requirements with independent mold development
Products certified with CE, RoHS, ISO, Reach
Some products have patent certificates

Factory Overview

Product Classification

Application Areas

Small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

Our products have a wide range of applications including driverless technology, artificial intelligence, intelligent transportation, health care, smart city, automotive supplies, security monitoring, 5G communication, and smart home.

Medical Equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment	Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Frequently Asked Questions

Q1: How to order?

A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q2: How can I know the product is suitable for me?

A2: Firstly, you need to provide us the detailed information including voltage, no-load speed, load speed, load torque and shaft length. Then, we will recommend the item to you according to your requirement. After you confirm, we will prepare samples and offer advice based on your product use.

Q3: What is the lead time for samples and mass production?

A3: Within 5-7 working days for samples and 20-30 days for mass production.

Q4: How to proceed an order for products?

A4: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Third customer confirms the samples and places deposit for formal order. Fourth We arrange the production.

Q5: My package has missing products. What can I do?

A5: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.

Q6: How to confirm the payment?

A6: We accept payment by T/T, PayPal, and other payment methods. Please contact us before using other payment ways. 30-50% deposit is available, with balance paid before shipping.
