BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

Name: BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-BL2430
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-BL2430
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Mini BLDC Motor

Shaft Tpye:

Round,Flat ,D-cut Ect

Motor Size:

φ24.4mm*30.8mm

Motor Type:

Brushless Motor

Direction Of Motor:

CW&CCW

Signal:

Signal Function Available

Structure:

Built-in Driver Or External Driver

PWM:

PWM Countrol(Standard)

Life Expectancy:

800H-10000H

Power:

0.2W-3W(Internal Drive)

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

24mm Brushless Dc Motor 12v Title:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

24mm Brushless Dc Motor 12v Description:

Rated Voltage range:DC 6v-30V
Rated Speed: 1000RPM-10000RPM
The motor speed is proportional to the motor voltage
Rated Torque :0.5gf.cm-200gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Type :Brushless DC Motor
Motor Shaft diameter :φ2.0mm
Motor Size: φ24.4*30.8mm,diamter 24.4mm ,30.8mm Length micro brushless motor
Suitable to small diameter, low noise and big torque application
Motor default direction:CW &CCW available
Structure selection:Built-in driver or external driver
Connection Mode:A
Signal :Signal Function Available

PWM Countrol(Standard)

Locked Rotor Protection

Power:3W(Internal Drive)

Life Expectancy:1000H-10000H(Oil Bearing)
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Widely used in :Smart home, robots, office supplies, power tools, medical equipment,

precision instruments, automotive electronics,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
We can provide samples for your test. 24mm Brushless Dc Motor 12v Key Attributes:

Rated Speed(RPM)

1000rpm-20000rpm

Continuous Current(A)

10mA-300mA or Customized

Efficiency

IE2

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-BL2430

Use

Smart home, robots, office supplies, power tools,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Motor Type

Brushless Motor

Connection Mode

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Product Name

BL2430 Brushless DC Motor

Direction of motor

CW&CCW

Keywords

12v Brushless Micro Dc Motor

Motor Diameter

φ24.4mm

Weight

25g

Noise

≤55DB

MOQ

1000Pcs

Rated Voltage

DC 6v-30v

Color

Customer's Request

Life Expectancy

1000H-10000H(Oil Bearing)

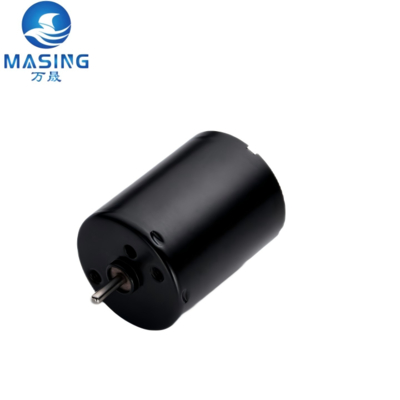

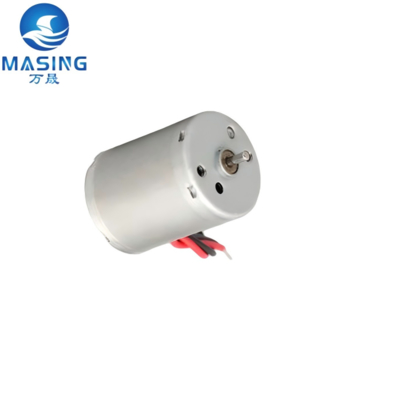

24mm Brushless Dc Motor 12v Product Photo:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus 0

24mm Brushless Dc Motor 12v Product Spec:

12V High Performance DC Brushless Motor Typical Applications

Smart home, robots, office supplies, power tools,precision instruments, automotive electronics,Personal Care,Car,

Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus 2

Motor Data:
Motor Model	Votage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL2430***	9~14V	12V	0.17	8000	0.67	6380	83.1	5.4	67.7	2.65	411
BL2430***	19~26V	24V	0.05	4600	0.18	3550	67.2	2.4	60.0	0.58	295

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus 3

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

8.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$8/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2:What's the MOQ?
A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3:Can you send some samples before the order?

A3:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q4:Can you make our logo on the products?

A4: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q5: How to select a suitable motor?
A5: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
