High Power High Performance Brushless DC Motor BL2847 12V 6000rpm 28mm

Brand Name:	Masing Motor
Model Number:	MSBL2832
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RohS,CE,iSO,16949

Product Name:

High Performance Brushless DC Motor

Shaft Type:

Round,Flat ,D-cut Or Customized

Motor Size:

φ28mm*L47mm

Rated Torque:

5gf.cm-150gf.cm

Product Type:

BL2847 DC Brushless Motor

Application:

Robot Vacuum Cleaner,Car Flip Screen,Robot

Structure:

Built-in Driver Or External Driver

Shaft Diameter:

φ2.3mm

Rated Speed:

2000rpm-10000rpm

Direction Of Motor:

CW&CCW Available

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

High Performance Brushless DC Motor

High Power Dc Brushless Motor

Brushless DC Motors 12V

Product Description

Title:

BL2847 12V 6000rpm 28mm High Power Dc Brushless Motor High Performance Brushless Dc Motor Bldc Motor

Description:

Motor type :Micro Brushless Motor &BLDC motor
Voltage range:DC 9v-24V
Rated Speed:2000-10000RPM
The motor speed is proportional to the motor voltage,Rotating speed is constant and can be made as you required.
Rated torque :5gf.cm-200gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Size: φ28mm*L47mm,diamter 28mm , Length 47mm DC brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW available
Shaft diameter :φ2.3mm or customized
Shaft material:Steel or carton steel ect
Structure selection:Built-in driver or external driver
Can be match with wheel, One shaft one wheel or one motor, one wheel
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Working temperature:-40~+60°c
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Widely used in :Hair Curler, Hair Trimmer,5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
We can provide samples for your test.
Quality assurance: Each product must pass the quality inspection before shipping

Key Attributes:

No-load Speed(RPM)

6000rpm

No-load current (A)

0.18A

At Maximum Efficiency

73.5%

Rated Voltage

12volt

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSBL2847

Use

Hair Curler, Hair Trimmer,5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Motor Type

Brushless Motor

Rated Torque

5gf.cm-150gf.cm or Customized

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Product Name

High Power 28mm Dc Brushless Motor

Direction of motor

CW&CCW available

Shaft diameter

φ2.3mm

Motor Diameter

φ28mm*L47mm

Weight

60g (Approx)

Noise

≤55DB

MOQ

1000Pcs

Rated Voltage

9volt-24volt

Color

Customer's Request

Motor type

High Toque Dc Brushless Motor BL2847

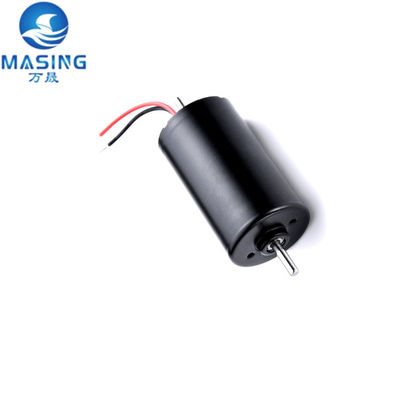

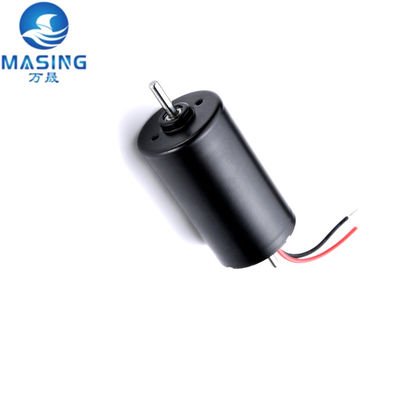

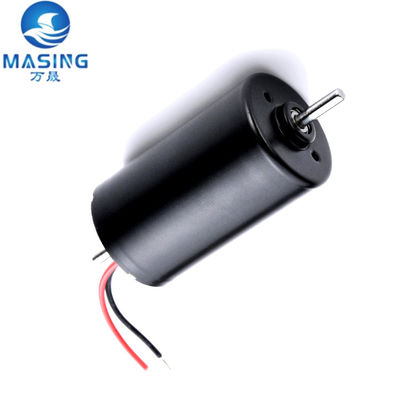

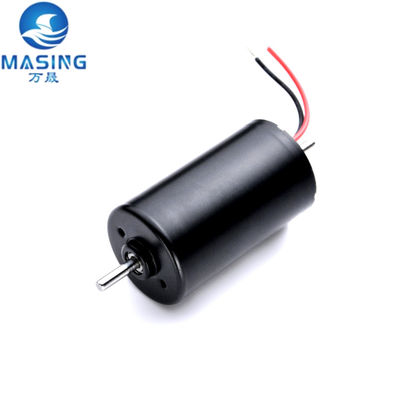

Product Photo:

High Power High Performance Brushless DC Motor BL2847 12V 6000rpm 28mm 0

Product Spec:

BLDC 2847 Brushless DC Motor Typical Applications

Robot,Hair Curler, Hair Trimmer,5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

High Power High Performance Brushless DC Motor BL2847 12V 6000rpm 28mm 2

High Power High Performance Brushless DC Motor BL2847 12V 6000rpm 28mm 3

Motor Data:
Motor Model	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL2847***	9~16V	12V	0.18	6000	0.69	4800	120	6.2	73.5	2.69	616
BL2847***	16~24V	24V	0.12	7300	0.55	6000	130	8.0	60.5	2.75	730

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

100g (Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1: When will you reply after got my inquiries?
A1:We will respond within 24 hours once get your inquiries.

Q2:How do you make sure motor quality?
A2: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q3: What's your lead time?
A3:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders

Q4:How can I trust you to make sure my money is safe?

A4: We are certified by the third party SGS and we have exported to over 85 countries up to June.2017. You can check our reputation with our current customers in your country (if our customers do not mind), or you can order via Alibaba to get trade assurance from Alibaba to make sure your money is safe.

Q5:What's the minimum order quantity?

A5:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q6:What's your shipping method for motors?
A6: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
