Micro Worm Gear Reducer Motor 12 Volt Low Speed 3246 Right Angle Gearbox For Electric Car

Micro Worm Gear Reducer Motor 12 Volt Low Speed 3246 Right Angle Gearbox For Electric Car

Brand Name:	Masing Motor
Model Number:	MS3246Z370
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Worm Gear Brushless Dc Motor

Shaft Type:

Flat,Round,D-cut ,with A Hole Or Customized

Motor Type:

Brushless Motor

Gearbox Type:

Worm Gearbox

Gearbox Size:

φ32mm*H46mm

Rated Voltage:

DC 12v-24v

Direction Of Motor:

CW &CCW Available

Shaft Diameter:

φ6mm,D-cut

Rated Torque:

0.5kgf.cm~25kgf.cm

Efficiency:

53%-48%

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

Micro Worm Gear Reducer Motor

Worm Gear Reducer Motor Low Speed

Worm Gear Reducer Gearbox

Product Description

Micro Worm Gear Reducer Motor 12 Volt Low Speed 3246 Right Angle Gearbox

Compact DC worm gear motor designed for electric vehicles and various automation applications, featuring customizable options and reliable performance.

Product Overview

Micro worm gear reducer motor with RF-370 brushless motor, offering customizable weight, continuous current, and rated power options for diverse applications.

Voltage range: DC 12V-24V
Rated speed: 2RPM-200RPM
Customizable speed options
Gearbox type: Worm gearbox
Gearbox size: φ32mm × H46mm
Reduction ratio: 1:69 to 1:1320
Gearbox material: Metal or customized
Gear material: Steel, Metal, Plastic, Powder metallurgy
Shaft diameter: φ6mm D-cut or customized
Motor type: Brush Motor or Brushless Motor
Working temperature: -40°C to +60°C
Customized support: OEM, ODM, OBM

Technical Specifications

Key Attributes:

Speed: 2RPM-200RPM
Continuous Current: 10mA-500mA
Efficiency: 53%-48%
Torque: 0.1kgf.cm-30kgf.cm
Noise: ≤55DB
Life Time: 1000h-3000H or Customized
Weight: 0.35KG
MOQ: 1000Pcs

Gearbox Data:

Number of Stages	3	4
Reduction Ratio	69/108/200	323/412/540/600/727/806/900/1012/1320
Rated Torque (kg-cm)	2	4
Transient Torque (kg-cm)	5	7
Efficiency (%)	53%	48%

Motor Data:

Motor Model	Voltage	No Load Current (A)	No Load Speed (rpm)	Max Efficiency Current (A)	Max Efficiency Speed (rpm)	Max Efficiency Torque (g-cm)	Max Efficiency Power (W)
BL2430***	9-14V (12V)	0.17	8000	0.67	6380	83.1	5.4
BL2430***	19-26V (24V)	0.05	4600	0.18	3550	67.2	2.4

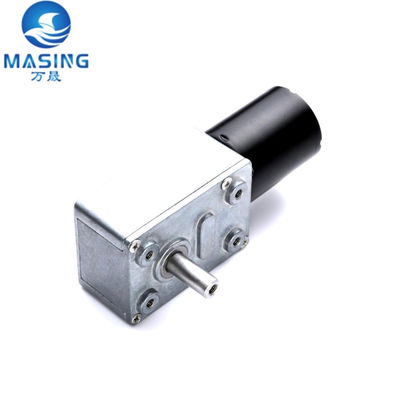

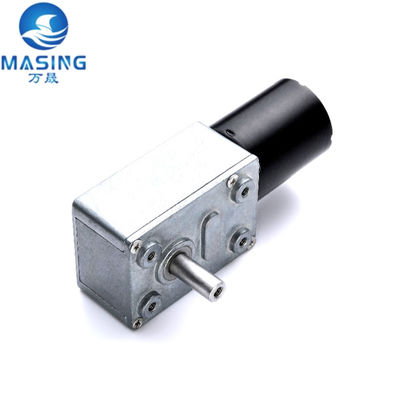

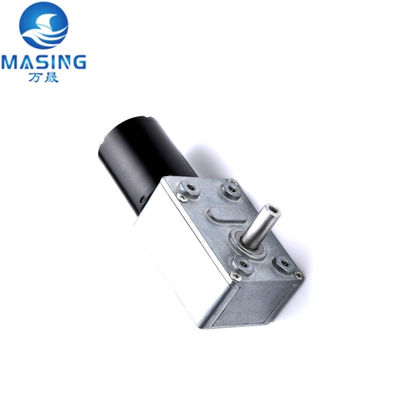

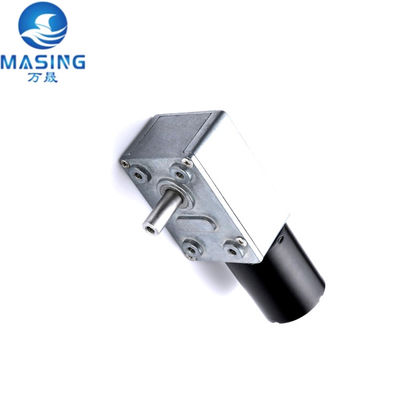

Product Images

Applications

This motor is widely used in various industries including:

Electric cars and vehicles
Smart small appliances and vending machines
Office equipment and household appliances
Medical devices and healthcare equipment
Robotics and automation systems
Security systems and access control
Food and beverage equipment
Smart home devices

Packaging & Delivery

Packaging: Strong carton 80pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Single package size: 37×27×24cm
Single gross weight: 10.6kg
Supply ability: 100,000 pieces per month

Lead Time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	20	To be negotiated

Samples & Certifications

Maximum sample order quantity: 1 piece

Sample price: $15/piece or negotiable

Company Advantages

Large-scale professional manufacturer with 5+ years experience
Professional R&D, engineering, and sales teams
Advanced equipment and manufacturing capabilities
Independent research and development capabilities
Products certified with CE, RoHS, ISO, Reach standards
Patent certificates for selected products

Frequently Asked Questions

Q1: How to order?

A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final inspection before shipment.

Q3: What is the lead time for samples and mass production?

A3: Within 5-7 working days for samples and 20-30 days for mass production.

Q4: Do you have certificates for the motors?

A4: Yes, we have CE, Rohs, 16949, ISO, etc. If you have other certificate requirements, we can apply for them.

Q5: How is your Quality Control?

A5: We have professional checking staff on every production line process. After finishing the whole motor, we have entire quality machines to test the motor including Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester.
