5840-31ZY Worm Gear Reducer Motor 12V/24V 7RPM~470RPM Speed Adjustable DC Reducer Motor Micro Motor High Torque

Name: 5840-31ZY Worm Gear Reducer Motor 12V/24V 7RPM~470RPM Speed Adjustable DC Reducer Motor Micro Motor High Torque
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-GM4058Z31ZY
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-GM4058Z31ZY
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

Worm Gear Reducer Motor 12V/24V

Shaft Type:

Flat,Round,D-cut ,with A Hole Or Customized

Motor Type:

PMDC Motor

Gearbox Type:

Worm Gearbox

Gearbox Size:

φ40mm*H58mm

Rated Voltage:

DC 6v-24v

Direction Of Motor:

CW &CCW Available

Shaft Diameter:

φ8mm,D-cut

Rated Torque:

1kgf.cm~100kgf.cm

Efficiency:

53%-48%

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Product Description

Worm Gear Reducer Motor 12V/24V Title:

5840-31ZY Worm Gear Reducer Motor 12V/24V 7RPM~470RPM Speed Adjustable DC Reducer Motor Micro Motor High Torque

Worm Gear Reducer Motor 12V/24V Description:

Voltage range:DC 6volt-24volt
Rated Spped :2rpm-500pm
Customizable Speed: The motor allows for custom speed options, making it suitable for a wide range of applications, including electric access control systems and security cameras.
Gearbox type :Worm gearbox Motor
Gearbox size :φ40mm*H58mm
Gearbox reduction ratio:1:49 to 1:950
Gearbox material:Metal Gearbox and customized
Gear Material:Steel ,Metal ,Plastic,Powder metallurgy
Shaft diameter :φ8mm, φ7mm with D-cut or customized
Shaft type :Round,Flat ,D-cut ,Threaded shaft,Threaded hole ect
Motor Type :Brushed Motor or PMDC Motor or Brushless Motor
Motor size :φ36mm*L50mm ,BLDC3650,3657,3640 ,31ZY
Accessories:Encoder, terminal wire, gear or customized
Direction of motor:CW&CCW available
Working temperature:-40~+60°c
Customized support:OEM, ODM, OBM
We can provide samples for testing
Every product must pass quality inspection before shipment.

Worm Gear Reducer Motor 12V/24V Key attributes:

Speed(RPM)

2rpm-500rpm

Voltage

6v-24v

Efficiency

53%-48%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-GM4058Z31ZY

Use

Robots,smoke extractor,stir-frying machine ,coffee machine ,Doll Machine/Smart Small Appliances/Vending Machine,Auto shutter, binding machine, automatic TV rack , money counter,spot light, tissue machine , office equipments, household appliances,automatic actuator

Gearbox Type

Micro Worm Gear Gearbox

Torque

1kgf.cm-100kgf.cm

Construction

Permanent Magnet

Commutation

PMDC

Direction of motor

CW &CCW available

Product Name

12v dc worm gear motor

Shaft diameter

φ8mm,D-cut

Shaft material

Steel or customized

Gearbox size

φ40mm*H58mm

Weight

0.4KG

Noise

≤55DB

MOQ

1000Pcs

Life TIme

1000H-5000H or Customized

Gearbox Shaft type

Flat,M5,M6, D-cut or Round or Threaded shaft or Threaded hole

Motor type

31ZY/BL3640/3650/3650/555/540/550

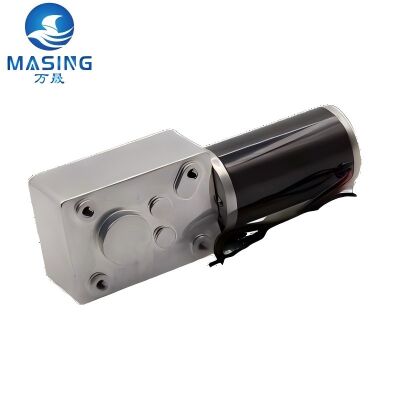

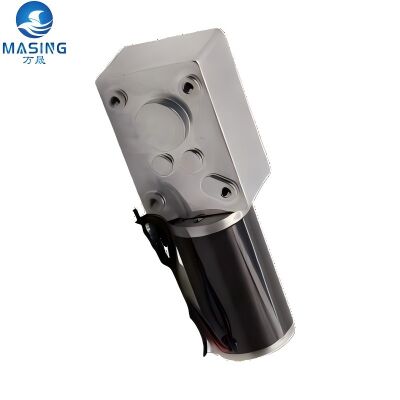

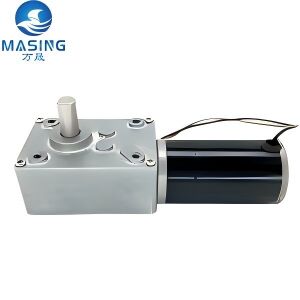

Worm Gear Reducer Motor 12V/24V Product Photo:

5840-31ZY Worm Gear Reducer Motor 12V/24V 7RPM~470RPM Speed Adjustable DC Reducer Motor Micro Motor High Torque 0

Worm Gear Reducer Motor 12V/24V Product Spec:

GM4058-31ZY DC Worm Gear Motor Typical Applications:

Doll Machine/Smart Small Appliances/Vending Machine,Auto shutter, binding machine, automatic TV rack , money counter,spot light, tissue machine , office equipments, household appliances,automatic actuator

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customized as requrement.

5840-31ZY Worm Gear Reducer Motor 12V/24V 7RPM~470RPM Speed Adjustable DC Reducer Motor Micro Motor High Torque 2

Motor Data:
Motor Model	Voltage			No Load				Load					Stall
	Rated Voltage			Speed		Current		Speed		Current	Output	Torque	Current	Torque
	V			(rpm)		(mA)		(rpm)		(mA)	(w)	(g ·cm)	(mA)	(g ·cm)
MS-31ZY	12			5500		180		4100		750	5.5	130	3500	520
MS-31ZY	12			9000		300		6700		1500	21	300	6500	1200
MS-31ZY	24			3500		100		2600		220	2.5	90	850 360
MS-31ZY	24			5500		160		4100		320	5.6	130	1700	520

Model number		Rated volt.	No load				Load						Stall
			Speed		Current		Speed		Current		Torque	Power	Current	Torque
			rpm		mA(max)		rpm		mA(max)		Kgf.cm	W	mA(min)	Kgf.cm
MS-58SGM31ZY0129000-49K		12V	184		420		160		2200		3.5	5.75	8000	17.5
MS-58SGM31ZY0125500-73K		12V	74		300		55		1200		3.7	2.09	2880	14
MS-58SGM31ZY0129000-09K		12V	89		400		75		1650		4.6	3.54	5700	23
MS-58SGM31ZY0127000-109K		12V	69		400		58		1580		5.6	3.33	4700	25
MS-58SGM31ZY0129000-218K		12V	41		500		35		1600		8	2.87	6500	37

Packaging and delivery:

Packaging Details

Strong Carton 80pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

0.4kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	20	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece or Negotiable

Certifications:

Advantages :

1.Company Advantage:

A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.

B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.

C. We have 5years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment

2. Product Advantage:

A. Variety of products,quality guaranteed, products are widely used

B. Advanced product testing equipment

C. Product flexibility, customize according to the requirements of the clients any special develop all kinds of molds, Independent research and development since the open mold products

D. Products through a variety of certification(CE,RoHs,ISO,Reach)

E. Some products have patent certificate

Factory Show:

Product Classification:

Applications:

Small home appliances.models, power tools, communication equipment, medical devices,

health care equipment, toys and fitness equipment and other products.

Our producs have a wide range of applications, more application scenarios are waiting for you to unlock.

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

FAQ

Q1: How to select a suitable motor?

A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?

A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3:Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4:Can I have samples for testing first?

A4:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly

Q5:How do you make sure motor quality?

A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
