DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor

Name: DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-BL4645
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-BL4645
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO,16949

Product Name:

DC Brushless Motor BL4645 20V

Shaft Type:

Flat ,D-cut ,M5,with A Hole,round Or Customized

Motor Size:

φ46mm*L45mm

Rated Torque:

10g.cm-500g.cm

Product Type:

BLDC4645 Brushless DC Motor

Application:

Smart Home, Robots, Office Suppliers, Precision Instruments, Automotive Electronics,

Structure:

Built-in Driver Or External Driver

Shaft Diameter:

φ5mm Or Customized

Rated Speed:

1000rpm-10000rpm

Direction Of Motor:

CW&CCW Available

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Product Description

Robotic Lawn Mower Brushless Motor DC20V Title:

DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor

Robotic Lawn Mower Brushless Motor DC20V Description:

Voltage range:DC 8v-28V
Rated Speed:1000RPM-10000RPM or Customized
Rotating speed is constant and can be made as you required.
Rated torque :10gf.cm-500gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Size: φ46mm*L45mm,diameter 46 mm , Length 45mm DC brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW available
Shaft diameter :φ5mm round or Customized
Shaft material:Carbon steel shaft, stainless steel shaft
Motor type :Brushless Motor or BLDC Motor
Can be match with wheel, One shaft one wheel or one motor, one wheel
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Working temperature:-40~+60°c
Structure selection:Built-in driver or external driver
Widely used in :Robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,

5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for your test.
Quality assurance: Each product must pass the quality inspection before shipping

Robotic Lawn Mower Brushless Motor DC20V Key Attributes:

Speed(RPM)

1000RPM-10000rpm

Continuous Current(A)

10mA-500mA

Efficiency

74.3%

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-BL4645

Use

Robotic Lawn Mower,Smart home, robots, office suppliers, precision instruments, automotive electronics, 5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Motor Type

Brushless Motor

Rated Torque

10gf.cm-500gf.cm or Customized

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Product Name

Micro Brushless dc motor

Direction of motor

CW&CCW available

Shaft diameter

φ5mm round or Customized

Motor Diameter

φ46mm*L45mm

Weight

190g (Approx)

Noise

≤55DB

MOQ

1000Pcs

Rated Voltage

8v-28v

Color

Customer's Request

Motor type

46mm brushless dc motor

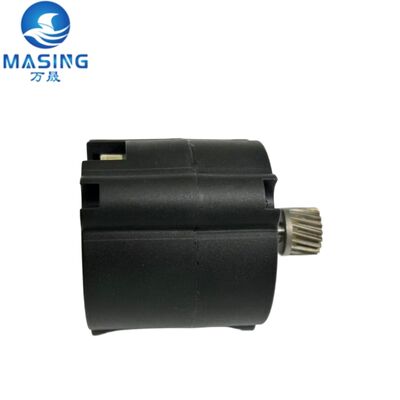

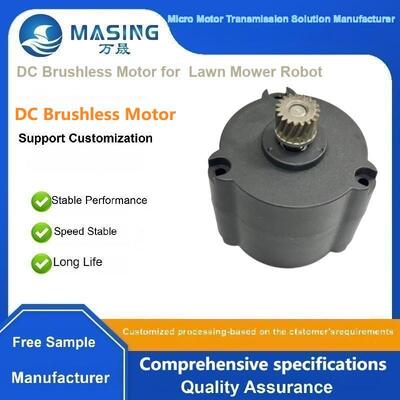

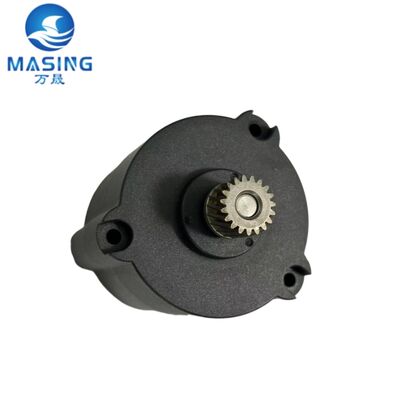

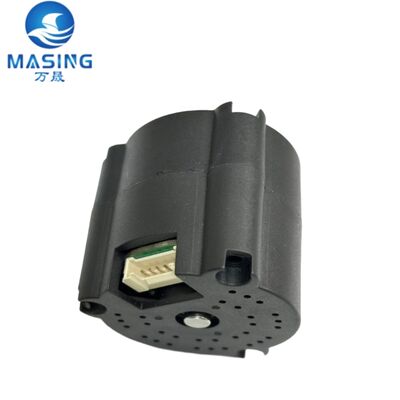

Robotic Lawn Mower Brushless Motor DC20V Product Photo:

DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor 0

Robotic Lawn Mower Brushless Motor DC20V Product Spec:

BLDC 4645 Brushless DC Motor Typical Applications

Smart home, robots, office suppliers, precision instruments, automotive electronics,5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor 2

DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor 3

Motor Data:
Motor Model	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Eficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL4645***	8~28V	20V	0.30	5100	1.24	4130	435	18.4	74.3	5.21	2260

DC Brushless Motor BL4645 20V 5000rpm Permanent Magnet Long Lifespan Robotic Lawn Mower Brushless Motor 4

Packaging and delivery:

Packaging Details

Strong Carton 200pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

190g (Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher

FAQ

Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3: What's the delivery time?
A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?

A4: Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5: Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
