RS-385 Carbon Brushed Dc Motor Hair Drier Sweeping robot Dc Motor Rs 385 Vacuum Pump Dc Motor 12 V

Name: RS-385 Carbon Brushed Dc Motor Hair Drier Sweeping robot Dc Motor Rs 385 Vacuum Pump Dc Motor 12 V
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-RS380/385
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-RS380/385
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO,16949

Product Name:

RS-380/385 12v Permanent Magnet Electric Motor

Shaft Type:

Round ,Flat,D-cut,Knurled Shaft

Output Power:

1W~35W

Shaft Material:

Carbon Steel Or Stainless Steel

Application:

Water Pump/Househols Appliances / Hair Dryer / Massager

Voltage:

DC3.0V-24V

Certificates:

16949,CE,ROHS,ISO

Motor Size:

φ27.8mm*L 37.8mm

Brush Model:

Carton Brush

Direction Of Motor:

CW &CCW Available

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

Title:

RS-385 Carbon Brushed Dc Motor Hair Drier Sweeping robot Dc Motor Rs 385 Vacuum Pump Dc Motor 12V

Description:

Working temperature:-40~+60°c
Rated Voltage range:DC 3.0V-30V
Rated Speed:3000rpm-30000RPM
Rotating speed is constant and can be made as you required,The motor speed is proportional to the motor voltage.
Motor Size: φ27.8mm*37.5mm,φ27.8mm,diameter 37.5mm length micro carbon brush dc motor
Output power:approx 1W~35W
Certification:CE,ROHS ISO9001:2000,16949
Motor default direction:CW&CCW available
Shaft diameter :φ2.3mm or customized
Shaft material :Stainless steel and carbon steel
Shaft type :D-cut ,round ,Flat,with a hole ,Shaft knurling or customized
Carbon-brush motors
The motor weight:80g(Approx)
Can be match with wheel, One shaft one wheel or one motor, one wheel
Accessories:Gears, gear box, wires, encoder ect
Widely used in: Water Pump/Househols Appliances / Hair Dryer / Massager/Automotive Air Conditioning Fan Regulator Air Pump,Water Pump, Home Appliance, Cosmetic Instrument, SMART HOME, Power Tool Water Pump and Cleaning Robot,Massager
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for your test.
Every product must be shipped 100% after quality inspection

Key attributes:

Speed(RPM)

3000rpm-30000RPM

Continuous Current(A)

10mA-500mA

Rated Voltage

DC3V-30V

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-RS380/385

Use

massager/vibrator air compressor Power Tool ,Cleaning RobotWater Pump/Househols Appliances / Hair Dryer / Massager/Automotive Air Conditioning Fan Regulator

Type

Micro Brush Motor

Torque

5g.cm-200g.cm

Direction of motor

CW & CCW available

Brush type

Carton Brush

Protect Feature

Totally Enclosed

Shaft diameter

φ2.3mm

Voltage

DC3.0V-24V

Keywords

24v Micro carton brush dc motor

Motor Diameter

φ27.8mm

Weight

80g(Approx)

Noise

≤55DB

MOQ

5000Pcs

Certificates

16949 ,CE ,Rohs ,ISO ,EU

Shaft materials

Stainless steel shaft and carbon steel shaft

Motor Life time

500H-1500H

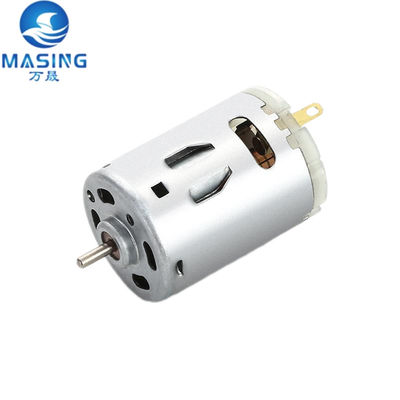

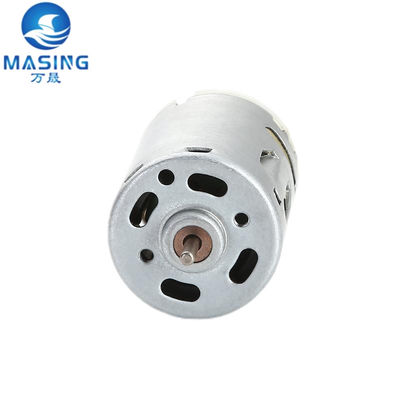

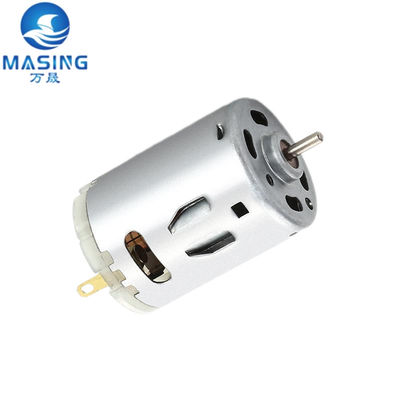

Product Photo:

RS-385 Carbon Brushed Dc Motor Hair Drier Sweeping robot Dc Motor Rs 385 Vacuum Pump Dc Motor 12 V 0

Product Spec:

RS-380/385 Brushed 12volt 24volt DC Motor Typical Applications
Air freshener,smartvacuumcleaner,soap disbperser,Hair dyer,Eectichar clipper,massager, instument
Office Equipment,Printer,Projector,Counting Machine,Shredder.Power Tool ,Cleaning Robot

Water Pump/Househols Appliances / Hair Dryer / Massager/Automotive Air Conditioning Fan Regulator

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

RS-385 Carbon Brushed Dc Motor Hair Drier Sweeping robot Dc Motor Rs 385 Vacuum Pump Dc Motor 12 V 2

RS-385 Carbon Brushed Dc Motor Hair Drier Sweeping robot Dc Motor Rs 385 Vacuum Pump Dc Motor 12 V 3

Model	Voltage		No Load		At Maximum Efficiency
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque		Output	Torque
	Operating Range	Nominal	r/min	mA	r/min	mA	mN ·m	g ·cm	W	mN-m
RS-380SH-4045	DC 3-9V	DC7.2V	16200	0.5	14060	3.29	10.9	111	16	82.3
RS-380SH-3557	DC 12-24V	DC 12V	21200	0.44	18367	2.85	11.26	114.9	21.68	84.2
RS-380SH-3750	DC6-12V	DC 12V	16500	0.45	13966	1.96	8.34	85.2	12.67	68.6
RS-380SH-12300	DC 12-30V	DC 24V	8000	0.07	6540	0.31	6.27	63.9	4.29	34.3
RS-380SA-3270	DC 3-12V	DC 6V	9200	0.26	7800	1.4	7.4	75	6	48.4
RS-380SA-12350	DC 12-28V	DC 24V	7400	0.06	6000	0.27	6.3	64	3.9	33.1

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

80g(Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$1.5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Air Pump ,Water Pump ,Automobile air conditioning actuator,Massager ,Driverless,Artificial intelligence,Intelligent

transportation,Health care,Smart city,Automotive supplies,Security monitoring,5G communication,Smart home

FAQ

Q1:Can you produce the product same as our sample?

A1: Yes,we can.As long as your give us the product detail size and specific requirement.We are absolutely to make the same product and send to you for approval.

Q2. How is it the cost for sample?

A2:The sample are free,but Considering that there have many customer need us to send sample,so we need you to pay the freight fee

Q3: How long will you finish the sample?
A3: .About 5-7 days to finish the sample base on your request.

Q4: If we you a picture of the product,can you give me the price?
A4: Yes,we can.As long as you give us the product picture and size,we will quote you the reasonable price as we are profession manufacturer.

Q5: Some of supplier will give us the wrong price due to the mistake on calculation,At last the price are change when we place an order.The result have lead to my lose the confidence of my customer.How to handle this issues?
A5: We will responsible for the price if your detail information and sample are correct.Even though we get the loss in the order,we wont change any thing.But we will lter the price,ifyour order products are different with the product which was designed by your original sample.
