Racing Drone 1020 Brush Motor 10*20mm 3.7V DC Coreless Motor 10x20mm for DIY Drone UAV

Name: Racing Drone 1020 Brush Motor 10*20mm 3.7V DC Coreless Motor 10x20mm for DIY Drone UAV
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS1020
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS1020
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

Coreless Motor 1020

Voltage:

3.7v Dc

Rated Torque:

1gf.cm-20gf.cm

Motor Size:

φ10mm*20mm

Application:

Racing Drone ,toys ,DIY Drone

Efficiency:

Customized

Construction:

Permanent Magnet

Shaft Diameter:

φ1.0mm

Certification:

CE,ROHS,ISO

Motor Model:

Coreless Motor

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

Racing Drone Brush Motor

DIY Drone Brush Motor

3.7V DC Coreless Motor

Product Description

Racing Drone 1020 Brush Motor 10×20mm 3.7V DC Coreless Motor

Product Overview

MS1020 Micro DC Coreless Motor 3.7V designed for high-speed applications in racing drones, UAVs, and various DIY projects. This compact motor offers customizable performance with low noise operation.

Technical Specifications

Motor Model: MS1020 Micro DC Coreless Motor 3.7V
Voltage Range: DC 1.5V-12V
Speed Range: Customizable 5,000-40,000 RPM
Motor Size: φ10×20mm (10mm diameter, 20mm length)
Shaft Size: φ1.0mm
Brush Type: Metal Brush
Number of Pole Pairs: 1
Number of Commutator Segments: 5
Weight: 6.9g
Noise Level: ≤55 DB
Direction: CW & CCW (Clockwise & Counter-Clockwise)

Key Features

Constant rotating speed with customizable specifications
Vibrating wheel attachment for additional functionality
Small diameter design with low noise and high torque
Totally enclosed protection feature
Suitable for various precision applications

Applications

Electric racing drones, toys, DIY drones, electric toothbrushes, massagers, children's toys, space models, robots, locks, model trains, vibration instruments, adult products, beauty apparatus, bladeless fans, aromatherapy machines, and small motor intelligent toys.

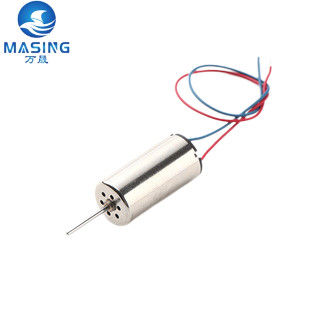

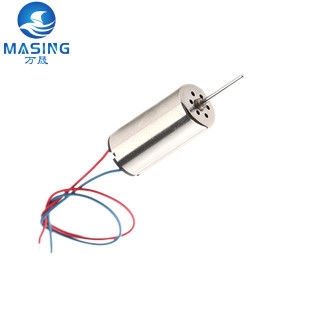

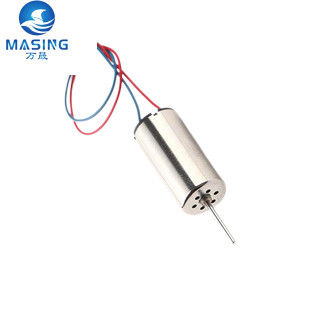

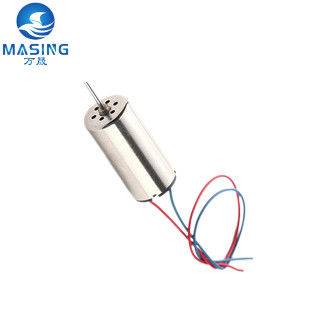

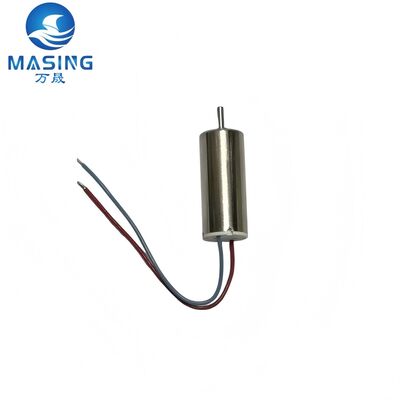

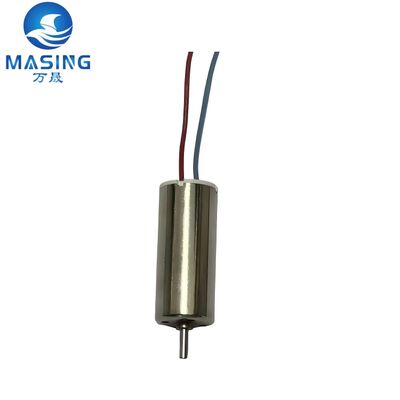

Product Images

Motor Performance Data

Model of Motor	037180	060250	050100	120100
Nominal voltage (V)	3.7	6	5	12
No load speed (rpm)	18000	25000	10000	10000
No load current (mA)	50	40	30	10
Nominal speed (rpm)	16800	23700	7700	7500
Nominal torque (g.cm)	5	4	8	10
Nominal current (A)	0.3	0.23	0.2	0.1
Stall torque (g.cm)	32.14	76.92	34.78	40
Stall current (A)	3.1	2.95	0.7	0.326
Max. efficiency (%)	65	85	70	75

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 6.9g
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $1.5/piece

Certifications & Factory

Product Classification & Applications

Applications include: Driverless technology, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, and Smart home.

Frequently Asked Questions

Q1. Why should I choose your products?

A1. Our products are high quality and low price.

Q2. The logo and the color can be customized?

A2. Yes, we welcome you to sample custom.

Q3. Any other good service your company can provide?

A3. Yes, we can provide good after-sale and fast delivery.

Q4. What is your guarantee for the products?

A4. We can offer technical support and spare parts for repair if any quality problems occur, and will follow the problems until you are satisfied.

Q5. Do you accept customize?

A5. Sure, as we have a strong design team, any problems will get our technical answer.

Q6. How can I get the price?

A6. We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways.

Q7. How long is the delivery?

A7. Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Note: Voltage, rated torque, speed, current, power, and shaft size can be customized as per requirement.
