DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

Name: DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS0720
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS0720
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

0720 Micro Coreless Motor

Voltage:

3.7v -4.2v Dc

Rated Torque:

1gf.cm-20gf.cm

Motor Size:

φ10mm*20mm

Application:

Racing Drone ,toys ,DIY Drone,UAV

Efficiency:

Customized

Construction:

Permanent Magnet

Shaft Diameter:

φ1.0mm

Certification:

CE,ROHS,ISO,16949

Motor Model:

Micro Coreless Motor

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

0720 Micro Coreless Motor Title:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

0720 Micro Coreless Motor Description:

Motor model :MS0720 Micro DC Coreless Motor 3.7v
Voltage range:DC1.5V-5V
Speed:Customized 5000-40000RPM
Rotating speed is constant and can be made as you required.
Motor default direction:CW&CCW
Motor Size: φ07*20mm,7mm,diameter, 20mm length mini motor
Motor shaft size :φ1.0mm
Brush type :Metal Brush
Number ofpolepairs:1
Number of commutator segments:5

Weight of motor:6.9g
The vibrating wheel attached can provide additional functions.
Suitable to small diameter, low noise and big toque application
Widely used in Electric:Racing Drone ,toys ,DIY Drone toothbrush, massager, children's toys,Space model robot,lock. toy,Model trains ,Robots ,toy ,Vibration Instrument,Adult products
We can provide samples for your test.

0720 Micro Coreless Motor Key attributes:

Speed(RPM)

10000rpm-60000rpm

Continuous Current(A)

0.01-0.06A

Vibrator

copper ,steele ,Powder metallurgy ect

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS0720 mciro dc coreless motor

Use

Racing Drone ,toys ,DIY Drone,Electric toothbrush, massager, children's toys,Space model

Type

3.0v 45000rpm micro coreless motor

Torque

1gf.cm-20gf.cm

Construction

Permanent Magnet

Commutation

Brush

Protect Feature

Totally Enclosed

Product Name

φ7mm*20mm Small Coreless DC Motor

Application

Vibration Instrument,toys,massager,beauty apparatus ,Bladeless fan Aromatreatment machine ,Small motor intelligent toy

Keywords

0720 mini UAVs coreless motor

Diameter

φ7mm coreless motor

Weight

6.9g

Noise

≤55DB

MOQ

5000Pcs

Direction of motor

CW &CCW

Color

Customer's Request

Motor type

remote control hobby products dc coreless motor

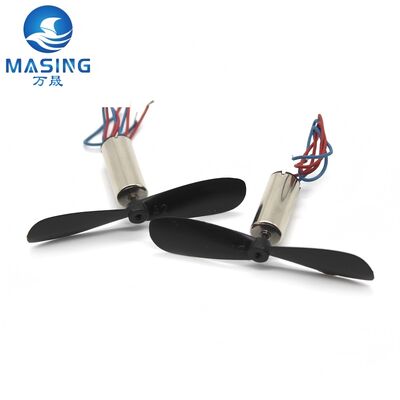

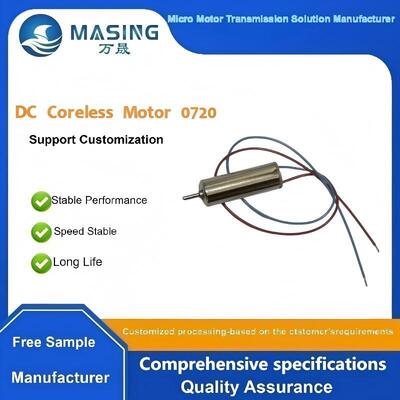

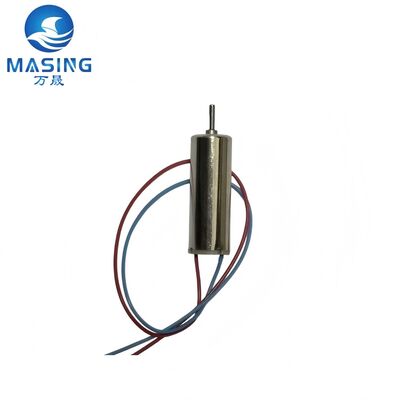

0720 Micro Coreless Motor Product Photo:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys 0

0720 Micro Coreless Motor Product Spec:

0720 Mini Coreless DC Motor Typical Applications
●Toys,Massager,Beauty apparatus,Home Appliance, Cosmetic Instrument, SMART HOME, Robot,Home Appliance,

Cosmetic Instrument, SMART HOME, Robot,Racing Drone ,toys ,DIY Drone,mini UAVs,remote control hobby products,smallhousehold appliances,etc

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys 2

Model of Motor		037180	060250	050100	120100
Motor Data at nominal voltage
Nominal voltage	V	3.7	6	5	12
No load speed	rpm	18000	25000	10000	10000
No load current	mA	50	40	30	10
Nominal speed	rpm	16800	23700	7700	7500
Nominal torque/max.continuous torque	g.cm	5	4	8	10
Nominal current/max.continuous current	A	0.3	0.23	0.2	0.1
Stall torque	g.cm	32.14	76.92	34.78	40
Stall current	A	3.1	2.95	0.7	0.326
Max.efficiency	%	65	85	70	75

Terminal resistance	Ω	1.2	2.03	7.16	36.8
Terminal inductance	Mh	32.6	28.8	58.9	113.6
Torque constant	g.cm/A	10.36	26.07	49.68	122.7
Speed constant	rpmN	4864	4166	2000	833
Speed/torque gradient	rpm/g.cm
Mechanical time constant	ms	15.46	4.03	4.01	3.38
Rotor inertia	gcm²	0.144	0.144	0.144	0.144
Other specifications
Number of pole pairs		1
Number of commutator segments		5
Weight of motor	g	6.9

Packaging and delivery:

Packaging Details

Strong Carton 1000pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

6.9g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$1.5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

FAQ

Q1:What's the price?

A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2:What's the MOQ?

A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3: What's the delivery time?
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?

A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5: Can you make our logo on the products?
A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q6:What's the payment term?
A6: For small amount,we accept 100% payment via paypal.

For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
