High Power Micro DC Motor RS-385 12V Permanent Magnet Motor For Power Tool Water Pump

High Power Micro DC Motor RS-385 12V Permanent Magnet Motor For Power Tool Water Pump

Brand Name:	Masing Motor
Model Number:	MSRS-380/385
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949 ,RohS,CE,ISO

Product Name:

12 Volt Dc Permanent Magnet Motor

Shaft Diameter:

φ2.3mm

Voltage:

DC 3v-24v

Motor Size:

φ27.7mm*37.5mm

Brush Type:

Carbon Brushed

Motor Direction:

CW &CCW Available

Certification:

16949,CE,ROHS,ISO

Shaft Material:

Carbon Steel Or Stainless Steel

Shaft Type:

Flat ,round,d-cut Or With Customized

Key Words:

Small Dc Electric Motors Rs-380 Rs-385

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

High Power Micro DC Motor

RS380 DC Motor

12V Permanent Magnet Motor

Product Description

High Power Micro DC Motor RS-385 12V Permanent Magnet Motor

Product Overview

High power, high speed micro DC motor designed for power tools, water pumps, cleaning robots, and various industrial applications. This RS-380/385 series permanent magnet motor offers reliable performance with customizable specifications.

Key Applications

Power Tools
Cleaning Robots
Car Wipers and Actuators
Water Pumps
Small Electric Drills
Smart Home Appliances
Vacuum Pumps
Hand Blenders and Hair Dryers

Technical Specifications

Voltage Range: DC 3V-24V
Rated Speed: 3000rpm - 25,000 RPM
Motor Size: φ27.7mm × 37.5mm
Shaft Diameter: φ2.3mm
Shaft Material: Carbon Steel or Stainless Steel
Shaft Type: Flat, round, D-cut or customized
Working Temperature: -40°C to +60°C
Noise Level: ≤55 dB
Torque Range: 10 m.Nm - 100 m.Nm
Bearing Type: Oil bearing or ball bearing
Direction: CW & CCW available

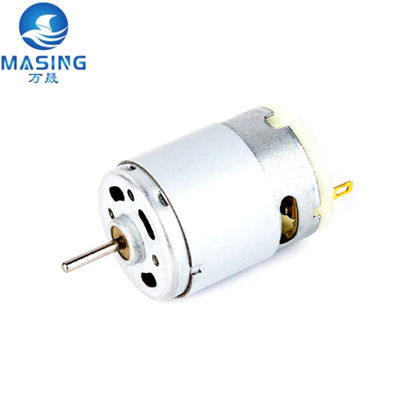

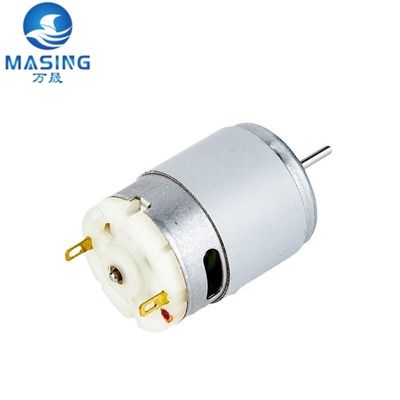

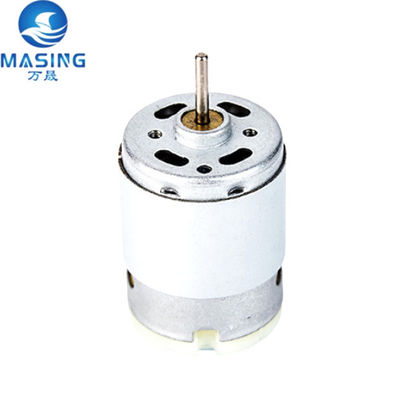

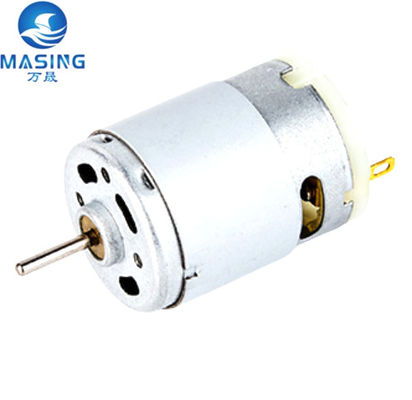

Product Images

Performance Data

Model	Work Voltage (V)	Speed (RPM)	Current (A)	Torque (g.cm)	Efficiency (%)	Power (W)
JRS-385-12680	12	6800	0.055	156.1	61	3.2
JRS-385-24150	24	15000	0.23	191.1	69.2	-

Packaging & Delivery

Packaging: Strong Carton (140pcs/box) or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×25 cm
Weight: 0.030 kg per unit
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Sample Price: $3 per piece
Maximum Sample Order: 1 piece
Certifications: 16949, CE, ROHS, ISO
Minimum Order Quantity: 5,000 pieces

Factory & Applications

Frequently Asked Questions

Q1: How can I get the price?

A1: We usually quote within 24 hours after we get your inquiry (except weekends and holidays). If you need urgent pricing, please email us or contact us directly.

Q2: Can I buy samples before placing orders?

A2: Yes, please feel free to contact us for sample orders.

Q3: Do you have a customized service for your standard motors?

A3: Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as required.

Q4: Can I have samples for testing first?

A4: Yes, after confirming motor specifications, we will provide a proforma invoice for samples. Payment confirmation allows us to proceed with sample production.

Q5: What's the minimum order quantity?

A5: Our MOQ depends on different motor models. Please email us for specific requirements.

Q6: What certifications do you have for motors?

A6: We currently have ISO, 16949, CE, and ROHS certifications for our motors.
