14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Brand Name:	Masing Motor
Model Number:	MSRS-540/545
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

Permanent Magnet DC Motor RS-555 RS-550

Shaft Diameter:

5mm Customized

Voltage:

6v-36v

Efficiency:

IE1

Mtor Type:

14.4v Brushed DC Motor High Power

Brush Type:

Carbon Brush Or Metal Brush

Structure:

Totally Enclosed

Magnet:

Strong Or Normal One For Option

Rated Power:

1W-200W

Key Words:

RS-555 RS-550 DC Motor High Torque

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

14.4V Permanent Magnet DC Motor

Permanent Magnet DC Motor High RPM

RS-555 DC Motor

Product Description

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Product Overview

High-performance permanent magnet DC motor designed for demanding applications requiring reliable power, low noise, and substantial torque.

Voltage range: 6V-36V
Speed: 1800-30000 RPM
Motor default direction: CW & CCW
Size: 36×57mm (Diameter 36mm, Length 57mm) Carbon Brush Permanent Magnet motor
Suitable for small diameter 36mm applications with low noise and high torque
Compatible with wheel attachments
Working temperature: -40°C to +60°C
Bearing options: Oil bearing or ball bearing
Samples available for testing
Constant rotating speed with customizable specifications

Technical Specifications

Speed (RPM)	1800-30000 rpm
Continuous Current (A)	Customized
Efficiency	65%-85%
Warranty	Others
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	RS-550 RS-555
Type	High Power Brush Motor
Torque	Customized 50m.Nm-150m.Nm
Construction	Permanent Magnet
Commutation	Brush
Protect Feature	Totally Enclosed
Motor Size	36×57mm
Certification	CE, ROHS, ISO
Noise	≤55 DB
MOQ	5000 Pcs
Color	Customer's Request

Applications

Household Appliances: Hair dryer, Electric hair clipper, Massage instrument, Dust collector, Car air pump, Automatic water heating teapot, Electric water pump, Vacuum cleaners, Sweepers, Electric toys, Juice cups, Air pumps, Lawnmowers

Office Equipment: Printer, Projector, Counting Machine, Shredder

Industrial Equipment: Water electric, Gas valve, Air switch, Water pump, Electric drill, Massager, Cordless Power Tool, Air Compressor

Business Equipment: Vending machines, Parking locks, ATM machines

Advanced Applications: Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

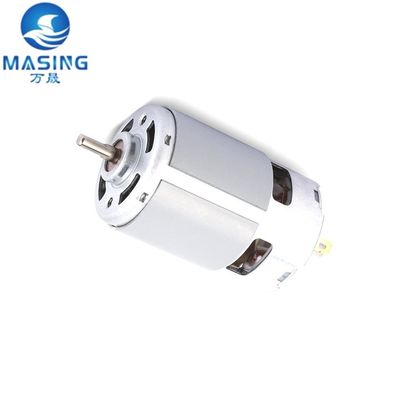

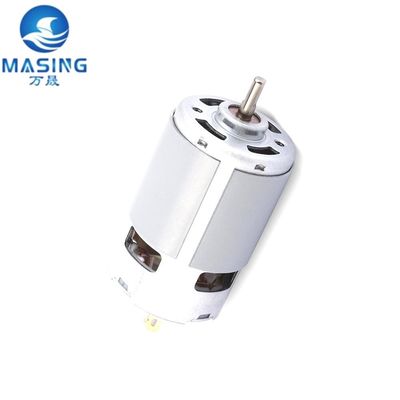

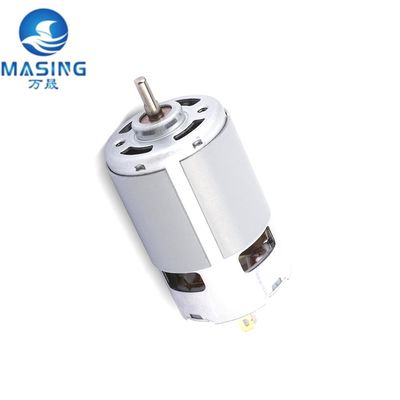

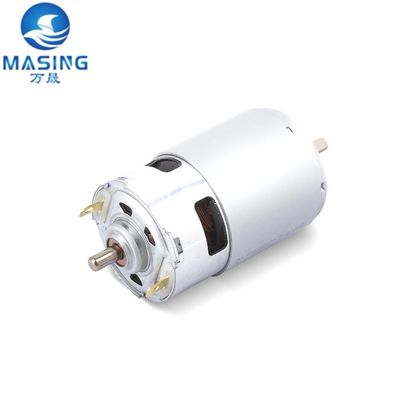

Product Images

Technical Diagram

Packaging & Delivery

Packaging: Strong Carton 100pcs/box, or customized packaging available

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Package Size: 37×27×24cm

Gross Weight: 0.030kg

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead Time (days)	10	15	To be negotiated

Samples & Pricing

Maximum Sample Quantity: 1 piece

Sample Price: $3/piece

Certifications & Company Information

Frequently Asked Questions

Q1: How can I get the price?

A1: We usually quote within 24 hours after we get your inquiry (except weekends and holidays). If you are urgent to get the price, please email us or contact us directly.

Q2: How about Sample order?

A2: Samples are available. Please contact us for details.

Q3: What kind of data do I need to provide if I want to order?

A3: Please provide your voltage, speed, torque, and overall dimension requirements.

Q4: What is your guarantee for the products?

A4: We offer technical support and spare parts for repair if any quality problems occur, and will follow up until you are satisfied.

Q5: How do you maintain long-term business relationships?

A5: We maintain good quality and competitive pricing to ensure customer benefits, and we value every customer relationship with sincere business practices.

Q6: Can you provide OEM or ODM service?

A6: Yes, OEM and ODM services are both welcomed.

Q7: How can I know the product is suitable for me?

A7: Provide us with detailed information about your requirements. We will recommend suitable items and can prepare samples. We also offer advice based on your product usage.

Contact us for customized solutions and technical support.
