New Product DC3.0V-24V 370 Brushed Micro Air Pump Flow 0.8-4.0LPM ,Pressure 0-130kpa For Medical And Beauty Equipment

New Product DC3.0V-24V 370 Brushed Micro Air Pump Flow 0.8-4.0LPM ,Pressure 0-130kpa For Medical And Beauty Equipment

Brand Name:	Masing Motor
Model Number:	370 Micro Air Puum Motor
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

Brushed Micro Air Pump

Shaft Size:

Customized

Motor Size:

φ24.4mm*30.8mm

Voltage:

Dc3v-24v

Brush Type:

Brush Or Carbon Brush DC Motor

Application:

Health Care Equipment, Household Appliances,medical Equipment,beauty Equipment

Structure:

Totally Enclosed

Key Word:

6volt Air Pump Motor

Material:

Rohs

Certificates:

CE,ROHS,ISO,16949

Packaging Details:

carton box

Supply Ability:

1000000piece/per month

Highlight:

DC brushed micro air pump

370 brushed motor medical pump

24V air pump for beauty equipment

Product Description

370 Micro Air Pump DC Motor Title:

New Product DC3.0V-24V 370 Brushed Micro Air Pump Flow 0.8-4.0LPM ,Pressure 0-130kpa For Medical And Beauty Equipment

370 Micro Air Pump DC Motor Description:

Rated Voltage range:DC3.0V-24V
Rated Speed:1500rpm-20000RPM
Motor Size: φ24.4*30.8mm,diamter 24.4mm ,30.8mm length mini motor
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW
Motor type :Brush dc motor
Brush type :Metal brush/Carbon brush
Motor shaft diameter :φ2.0mm
Can be match with wheel, One shaft one wheel or one motor, one wheel
Power:0-4.0 W
Pressure:0-130KPA
Flow:0.8-4.0LPM Use environment:0~50°℃,75%RH
Working temperature:-40~+60°c
We can provide samples for your test.
Rotating speed is constant and can be made as you required.
Widely used in Water pump Air pump, Health care equipment, household appliances,medical equipment,beauty equipment

370 Micro Air Pump DC Motor Key Attributes:

Rated Speed(RPM)

1500rpm-20000 rpm

Continuous Current(A)

10-150mA

Efficiency

IE3

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

370 air pump motor

Use

Water pump Air pump ,Health care equipment, household appliances,medical equipment,beauty equipment

Type

6volt air pump dc motor

Torque

1gf.cm-100gf.cm

Construction

Permanent Magnet

Commutation

Brush

Protect Feature

Totally Enclosed

Product Name

micro dc air pump motor 370

Application

Home Appliance

Keywords

6v dc motor

Diameter

φ24.4mm

Weight

20g

Noise

≤55DB

MOQ

5000Pcs

Life time

100-1000Hours

Color

Customer's Request

Motor type

Rf-370 Micro DC Motor

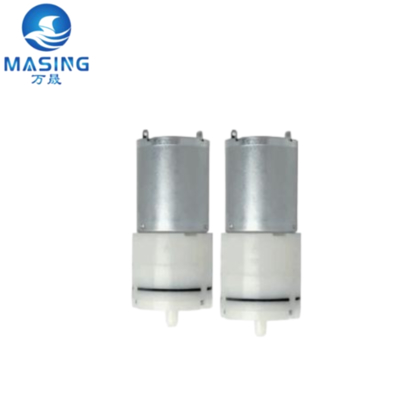

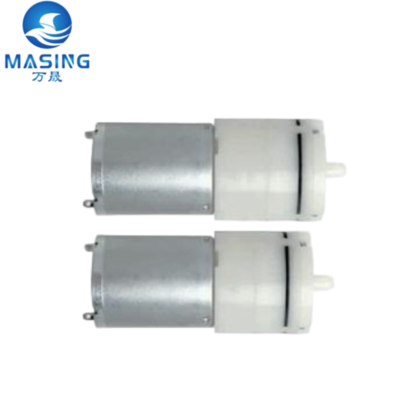

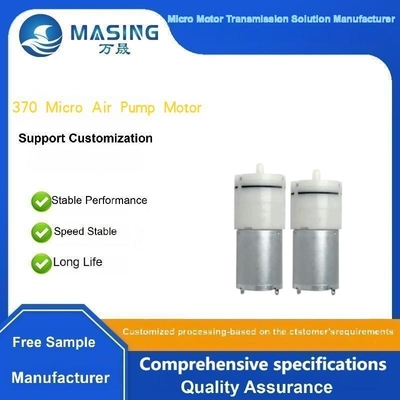

370 Micro Air Pump DC Motor Product Photo:

370 Micro Air Pump DC Motor Product Spec:

370 Motor Typical Applications

● Househdld Appliances:Air freshener,smartvacuumcleaner,soap dbperser,Water pump Air pump, Health care equipment, household appliances,medical equipment,beauty equipment

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

10.5kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$1.5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

New Product DC3.0V-24V 370 Brushed Micro Air Pump Flow 0.8-4.0LPM ,Pressure 0-130kpa For Medical And Beauty Equipment 9

FAQ

Q1:How to select a suitable motor?
A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?
A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3:Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4:Can I have samples for testing first?
A4:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
