Mini 0610 Corelss Vibration DC Motor 12V For Bladeless Fan Aromatreatment Machine Toys

Mini 0610 Corelss Vibration DC Motor 12V For Bladeless Fan Aromatreatment Machine Toys

Brand Name:	Masing Motor
Model Number:	MS0610
MOQ:	5000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

0610 Vibration DC Motor

Voltage:

1.5v

Rated Torque:

4.66gf.cm

Materail:

Rohs

Application:

Bladeless Fan Aromatreatment Machine Small Motor Intelligent Toy

Efficiency:

50%

Construction:

Permanent Magnet

Motor Diameter:

6mm*10mm

Certification:

CE,ROHS,ISO

Motor Model:

Mini Dc Coreless Motor 0610

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

Corelss Vibration DC Motor

Mini Vibration DC Motor

DC Vibration Motor 12V

Product Description

Mini 0610 Coreless Vibration DC Motor 12V For Bladeless Fan Aromatreatment Machine Toys

Product Overview

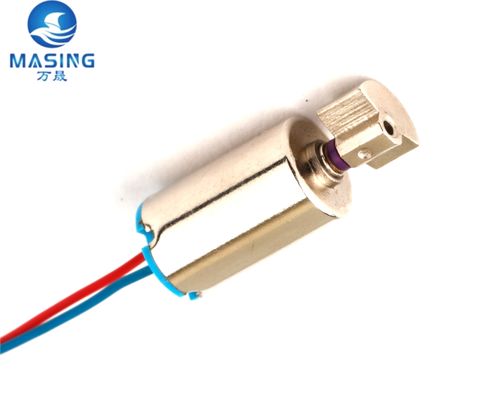

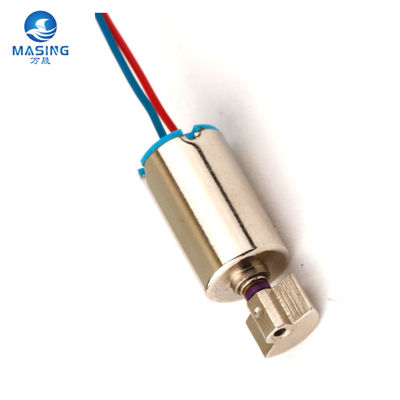

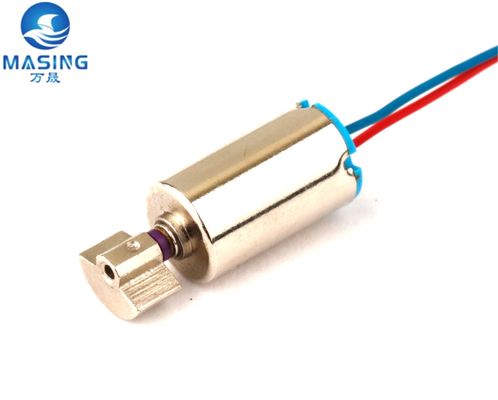

MS0601 DC Coreless Motor is a compact vibration motor measuring 6×10mm, designed for applications requiring small diameter, low noise, and high torque performance.

Voltage range: 1.5V-12V
Speed: Customized 5000-30000RPM
Size: 6×10mm (diameter × length)
Compact size with stable power output
Vibrating wheel provides additional functionality
Motor default direction: CW & CCW
Working temperature: -40°C to +60°C
Rotating speed is constant and customizable

Technical Specifications

Parameter	Value
Speed (RPM)	6300rpm
Continuous Current	130mA
Vibrator	Customized (copper, steel, etc.)
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS0610
Type	1.5V DC Motor
Torque	4.66gf.cm-5gf.cm
Construction	Permanent Magnet
Commutation	Brush
Protect Feature	Totally Enclosed
Diameter	6mm
Weight	5g
Noise	≤55DB
MOQ	5000Pcs
Efficiency	IE1
Color	Customer's Request

Applications

Electric toothbrush, massager, children's toys, space model robot, lock, toy gun magazine, eye brush, kneepad massage, beauty machine, massage belt, massage pad, bladeless fan, aromatreatment machine, small motor intelligent toy.

Typical Applications

Toys, Massager, Beauty apparatus, Home Appliance, Cosmetic Instrument, SMART HOME, Robot, Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home.

Note: Voltage, rated torque, speed, current, power and shaft size can be customized as per requirement.

Product Images

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or as requested

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Package Size: 37×27×24cm

Gross Weight: 5g

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum order quantity: 1 piece

Sample price: $1.5/piece

Certifications & Factory

Frequently Asked Questions

Q1. Are you factory?

A1. Yes, we are factory. Main products include micro geared motor, brushless DC motor and planetary gear box.

Q2. Can we test samples?

A2. Sample is available for you. Please contact us for details.

Q3. Which shipping way is available?

A3. DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. Other shipping methods also available upon request.

Q4. How long is the delivery?

A4. Delivery time depends on the quantity ordered. Usually takes 15-25 working days.

Q5. How can you guarantee the quality?

A5. We have 100% finished product inspection before delivery with no defective products returned.

Q6. How to confirm the payment?

A6. We accept payment by T/T, PayPal. Other payment methods available upon request. 30-50% deposit required, balance paid before shipping.
